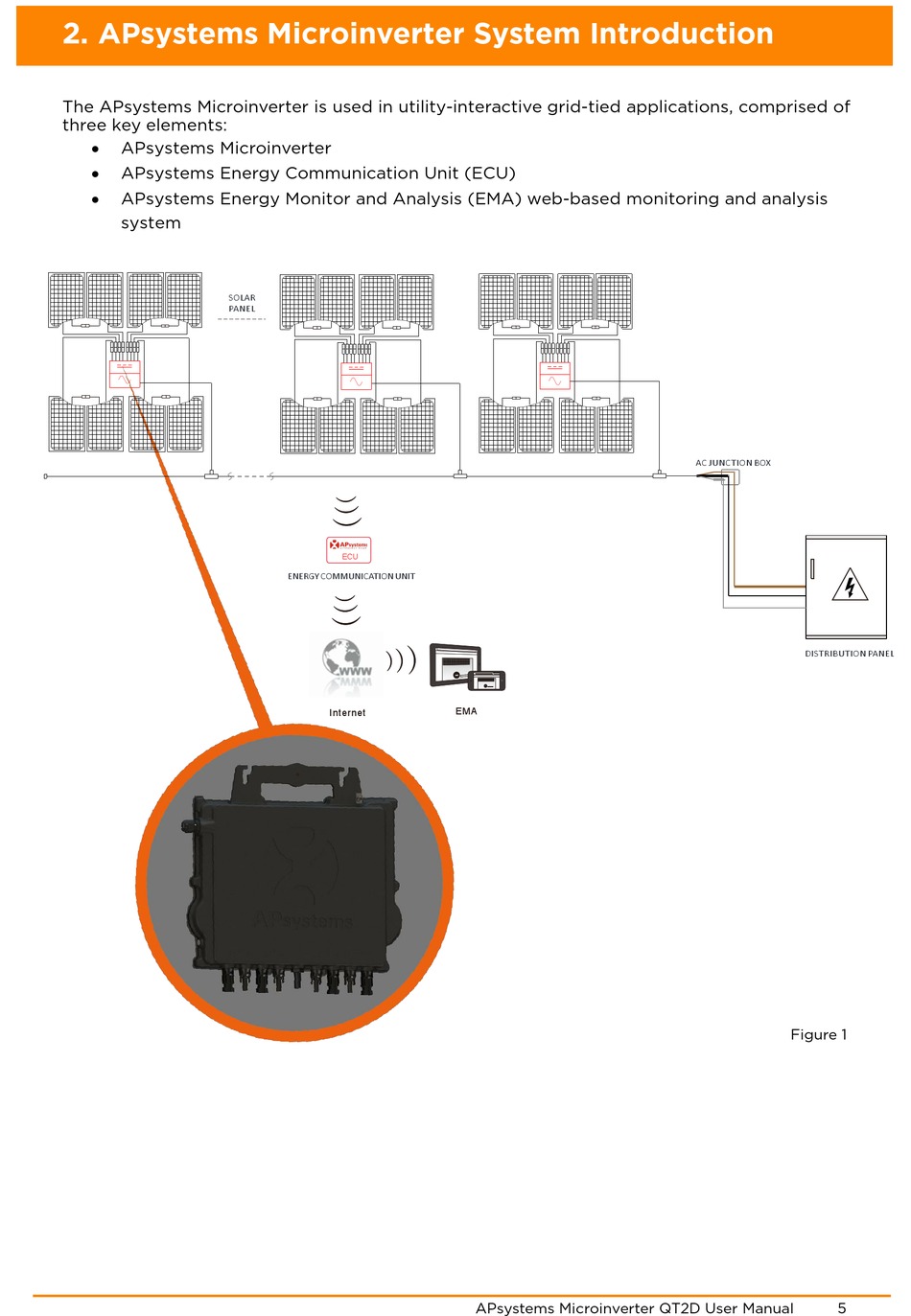

2. APsystems Microinverter System Introduction

The APsystems Microinverter is used in utility-interactive grid-tied applications, comprised of
three key elements:

APsystems Microinverter

APsystems Energy Communication Unit (ECU)

APsystems Energy Monitor and Analysis (EMA) web-based monitoring and analysis
system
SOLAR
PANEL
ECU
ENERGY COMMUNICATION UNIT
EMA
Internet
APsystems Microinverter QT2D User Manual
AC JUNCTION BOX
DISTRIBUTION PANEL
Figure 1
