4. APsystems Microinverter System Installation

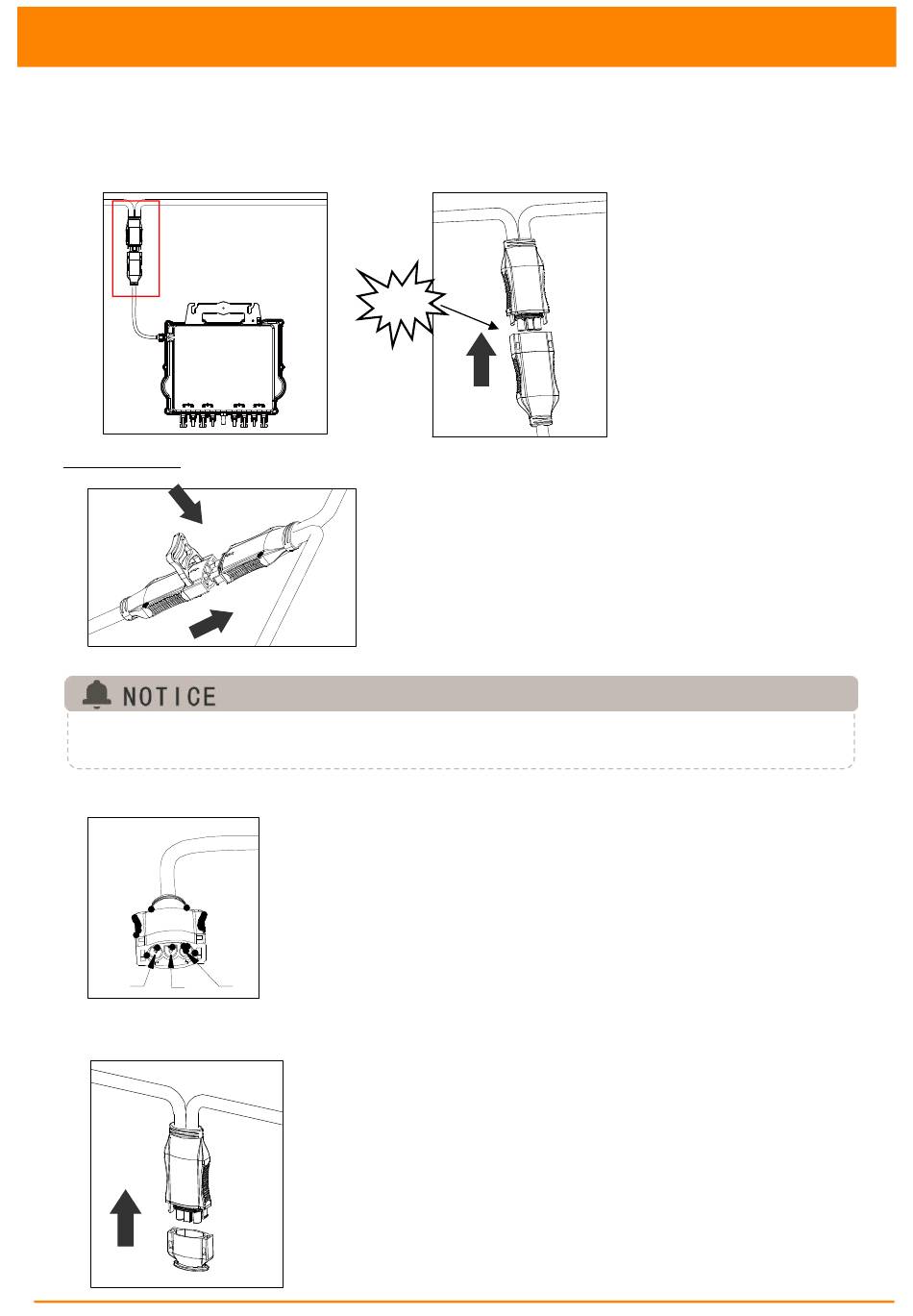

4.3.5 Step 5 - Connect the APsystems microinverter to AC bus cable

Insert the microinverter AC connector into the trunk cable connector. Make sure to hear the
"click" as a proof of robust connection
Best Practice: Use the Bus Cable Unlock Tool of AC Bus to disconnect the connectors.
Check the microinverter technical data page 19 to confirm maximum allowable number
of microinverters on each AC branch of the circuit.
AC connector interface as from left to right.
L1 L2
L3
Cover any unused connectors with Bus Cable Y-CONN Cap to protect the unused connectors.
Click
APsystems Microinverter QT2D User Manual
Figure 4
Figure 5
Figure 6
Figure 7
11
