2. APsystems Microinverter System Introduction

The APsystems Microinverter is used in utility-interactive grid-tied applications, comprised of
three key elements:

APsystems Microinverter

APsystems Energy Communication Unit (ECU)

APsystems Energy Monitor and Analysis (EMA) web-based monitoring and analysis
system
SOLAR
PANEL
APsystems Energy Communication Unit ECU-C or ECU-R are required for DRM modes
to be used in the installation.
ECU
ENERGY COMMUNICATION UNIT
Internet EMA
APsystems Microinverter QT2-AU User Manual

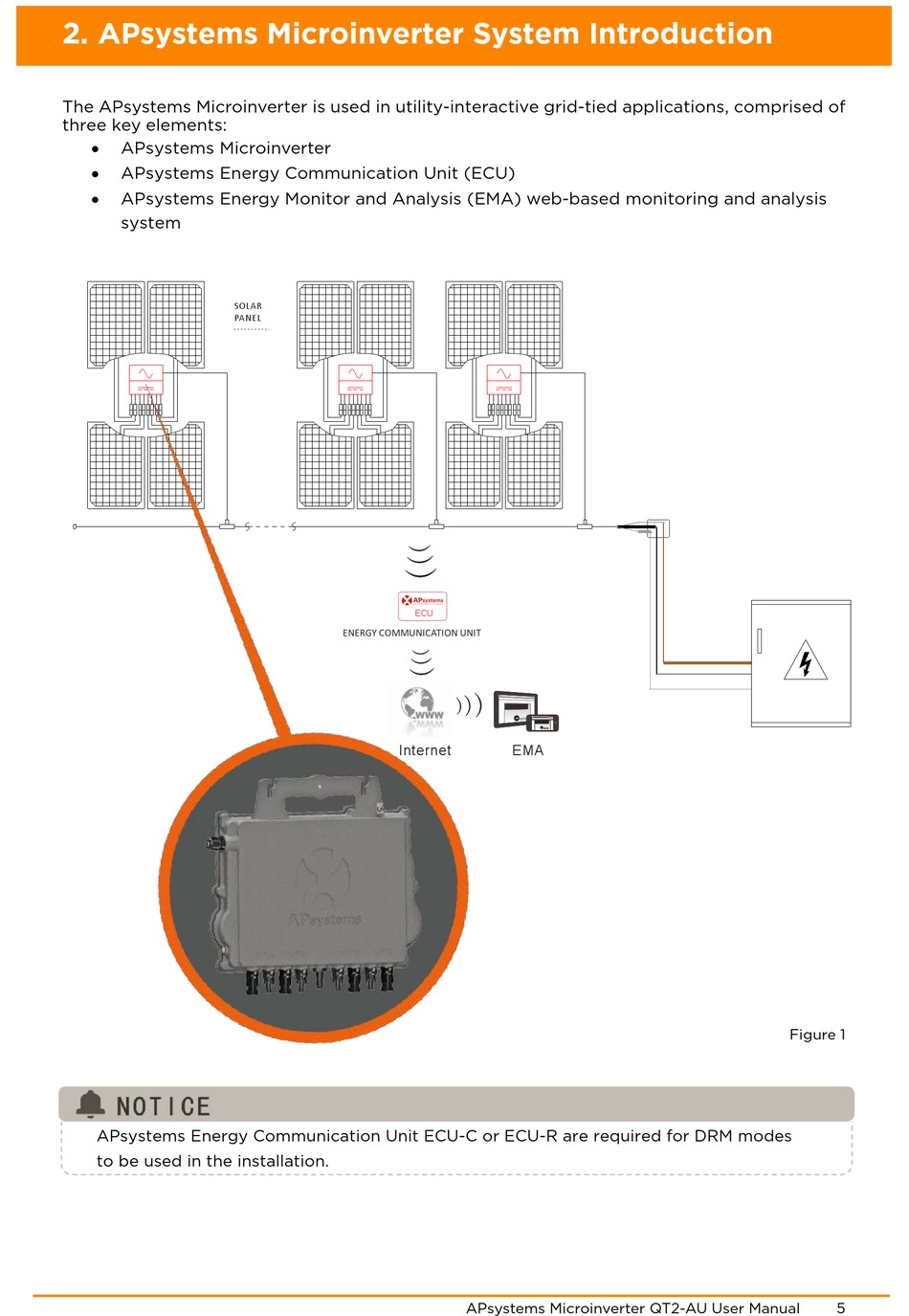

Figure 1
