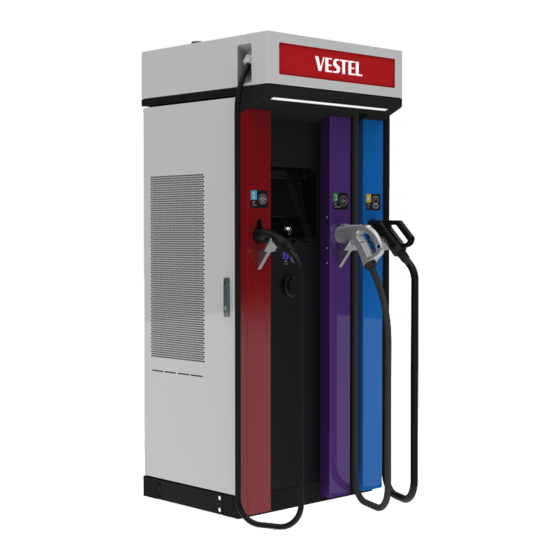

VESTEL EVC03 Series User Manual

Electric vehicle charger
Hide thumbs Also See for EVC03 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

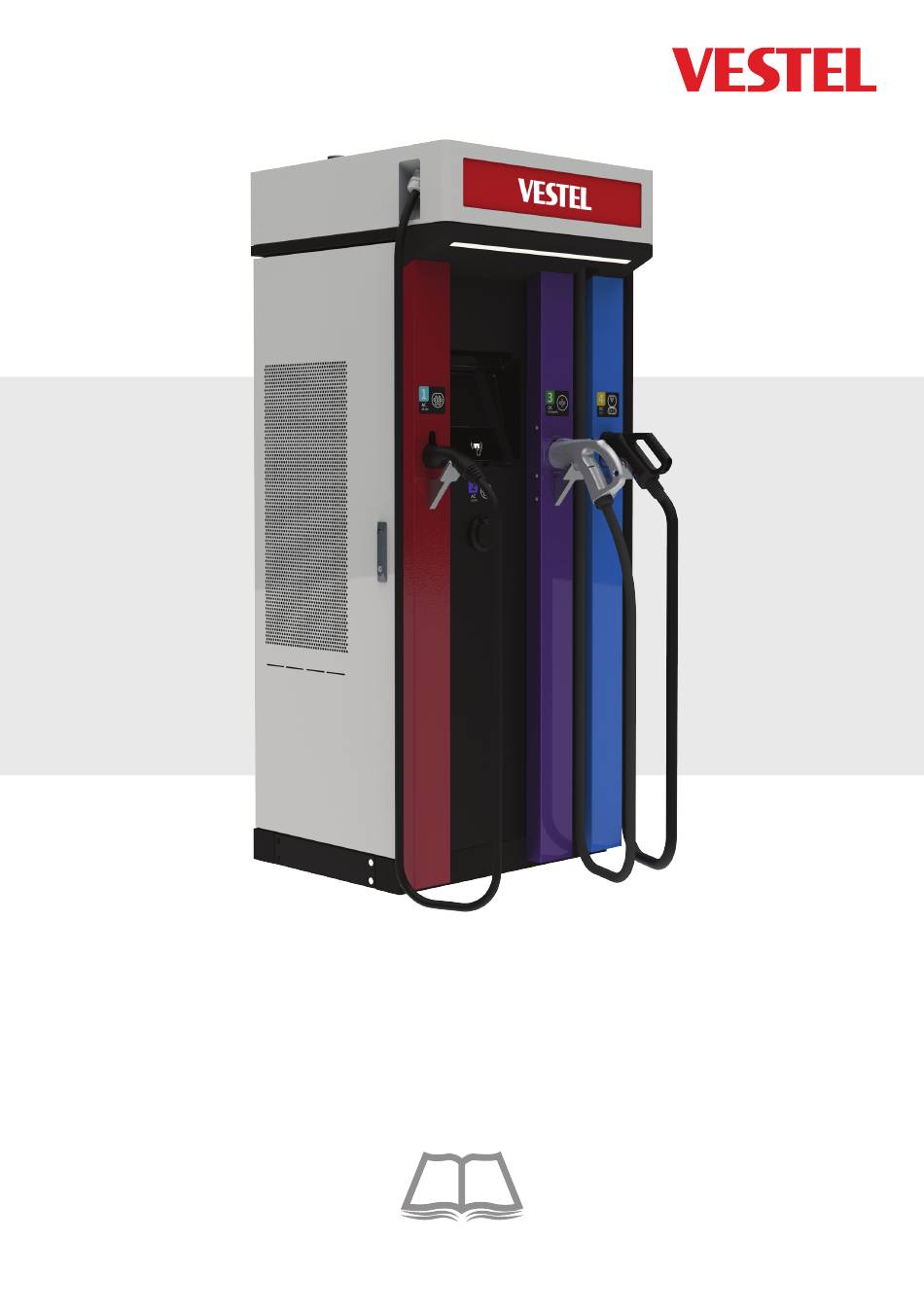

ELECTRIC VEHICLE CHARGER
EVC03 Series
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVC03 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VESTEL EVC03 Series

Summary of Contents for VESTEL EVC03 Series

  • Page 1 ELECTRIC VEHICLE CHARGER EVC03 Series User Manual...

  • Page 2: Table Of Contents

    4 - TRIPPING RELAY ON PRODUCTS................26 4.1 TRIPPING THE RESIDUAL CURRENT DEVICES and/or MAIN CIRCUIT BREAKER...................26 5- ERROR AND FAULT CONDITIONS................27 5.1 - GENERAL ERROR CONDITION..............27 CLEANING AND MAINTENANCE......................28 IB v1.0 2019 © 2019 Vestel - All rights reserved English - 1...

  • Page 3: Safety Information

    SAFETY INFORMATION CAUTION RISK OF ELECTRIC SHOCK: CAUTION: VESTEL ELECTRIC VEHICLE CHARGER DEVICE SHALL BE MOUNTED BY A LICENSED OR AN EXPERIENCED ELECTRICIAN AS PER ANY REGIONAL OR NATIONAL ELECTRIC REGULATIONS AND STANDARDS IN EFFECT. CAUTION AC grid connection and load planning of the electric vehicle charging device shall be reviewed and approved by authorities as specified by the regional or national electric regulations and standards in effect.

  • Page 4: Ground Connection Warnings

    • Use appropriate protection when connecting to the main power distribution cable. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 3...

  • Page 5: Required Upstream Protections

    MCCB (Thermic Magnetic Adjustable) must be connected to the upstream distribution box. EVC03- 180kW+65kVA 500 A 370A DC180 180kW+65kVA EVC03- 400 A 120kW+65kVA 274A DC120 EVC03- 250A 60kW+65kVA 188A DC60 IB v1.0 2019 © 2019 Vestel - All rights reserved English - 4...

  • Page 6: Description

    200 – 920 Vdc Maximum Current 200 A CSS Output IEC62196-1 / 3 IEC 61851-1 / 23 / 24 Interface Compliance ISO 15118-1 / 2 / 3 DIN 70121 IB v1.0 2019 © 2019 Vestel - All rights reserved English - 5...

  • Page 7: User Interface & Authentication

    RFID Reader Module ISO-14443A/B and ISO-15693 CONNECTIVITY LAN Connectivity Ethernet WLAN Connectivity 802.11ac Mobile Connectivity GSM 900/1800 UMTS 900/2100 LTE Band 1/3/7/8/20/38/40 OCPP Specification OCPP 1.6 J IB v1.0 2019 © 2019 Vestel - All rights reserved English - 6...

  • Page 8: Mechanic Specifications

    DC CCS Outlet DC CHAdeMO Outlet AC 43kW Outlet AC 22kW Socket Outlet Access cover for CTB, PLC Board and HMI, Power Modules IB v1.0 2019 © 2019 Vestel - All rights reserved English - 7...

  • Page 9: Plug Charging Cable

    Bring the button to open status on top of the charging plug in order to release charging plug from the charger, and unplug the charging plug. Then plug the charging plug to the vehicle to start charging. unlock IB v1.0 2019 © 2019 Vestel - All rights reserved English - 8...

  • Page 10: Ac 43 Kw Plug Outlet

    Unlock Button 2.4 - AC 22 kW Socket Outlet Open the front cover of the socket outlet and plug the charging cable to the socket outlet. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 9...

  • Page 11: Charging Scenarios

    3.1 - AC 43 kW Plug Outlet 3.1.1 - VEHICLE CONNECTION & CHARGING Connect charging cable to move to payment screen. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 10...
  • Page 12 Tap your RFID card or scan QR Code to start charging. It may take a few seconds for charging session to start. Charging state can be seen in charging page. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 11...

  • Page 13: Stop Charging

    While charging, charging state can be seen in the main menu. 3.1.2 -STOP CHARGING Click “Stop Charging” to end the charging session. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 12...
  • Page 14 Tap your RFID card or scan QR Code to stop charging. Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 13...

  • Page 15: Ac 22 Kw Socket Outlet

    3.2 - AC 22 kW Socket Outlet 3.2.1 - VEHICLE CONNECTION & CHARGING Connect charging cable to move to payment screen. Tap your RFID card to start charging. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 14...
  • Page 16 It may take a few seconds for charging session to start. Charging state can be seen in charging page. While charging, charging state can be seen in the main menu. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 15...

  • Page 17: Stop Charging

    3.2.2 -STOP CHARGING Click “Stop Charging” to end the charging session. Tap your RFID card in order to stop charging session. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 16...
  • Page 18 Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 17...

  • Page 19: Dc Chademo Outlet

    3.3 - DC CHAdeMO Outlet 3.3.1 - VEHICLE CONNECTION & CHARGING Connect charging cable to move to payment screen then press “Continue Charging” button. Tap your RFID card to start charging. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 18...
  • Page 20 It may take a few seconds for charging session to start. Charging state can be seen in charging page. While charging, charging state can be seen in the main menu. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 19...

  • Page 21: Stop Charging

    3.3.2 -STOP CHARGING Click “Stop Charging” to end the charging session. Tap your RFID card in order to stop charging session. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 20...
  • Page 22 Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 21...

  • Page 23: Dc Ccs Outlet

    3.4 - DC CCS Outlet 3.4.1 - VEHICLE CONNECTION & CHARGING Connect charging cable to move to payment screen. Tap your RFID card to start charging. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 22...
  • Page 24 It may take a few seconds for charging session to start. Charging state can be seen in charging page. While charging, charging state can be seen in the main menu. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 23...

  • Page 25: Stop Charging

    3.4.2 -STOP CHARGING Click “Stop Charging” to end the charging session. Tap your RFID card in order to stop charging session. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 24...
  • Page 26 Disconnect the charging cable. After disconnection, you will automatically move to the main screen. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 25...

  • Page 27: Tripping Relay On Products

    If any RCCB of DC CCS(3&4) or Chademo(5) is tripped, check the insulation of the related output cable. Then, turn on the RCCB as shown in the figure below. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 26...

  • Page 28: 5- Error And Fault Conditions

    Chademo output unavailable RCCB is tripped Check cable isolation first. Turn on RCCB. (See section “CIRCUIT BREAKER LOCA- TIONS FOR CHARGING OUT- PUTS“) Check functionality for the station. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 27...

  • Page 29: Cleaning And Maintenance

    Do not clean your electric vehicle charging device while charging your vehicle. • Do not wash the device with water. • Do not use abrasive cloths and detergents. Microfiber cloth is recommended. IB v1.0 2019 © 2019 Vestel - All rights reserved English - 28...
  • Page 30 VESTEL KOMÜNİKASYON SANAYİ VE TİCARET A.Ş. Ege Serbest Bölgesi Akçay Caddesi Ayfer Sokak No:144/1 Gaziemir-İzmir / TÜRKİYE Telefon (pbx) : 90 (232) 251 72 90 Fax : 90 (232) 251 73 13 Gaziemir V.D. : 837 001 0241...
