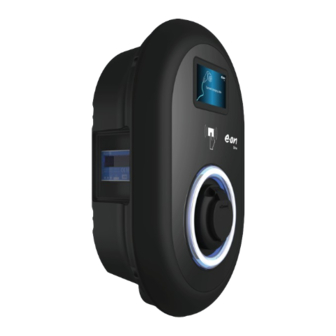

ELECTRIC VEHICLE CHARGER
EVC04 Series
Installation Guideline

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVC04 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VESTEL EVC04 Series

Summary of Contents for VESTEL EVC04 Series

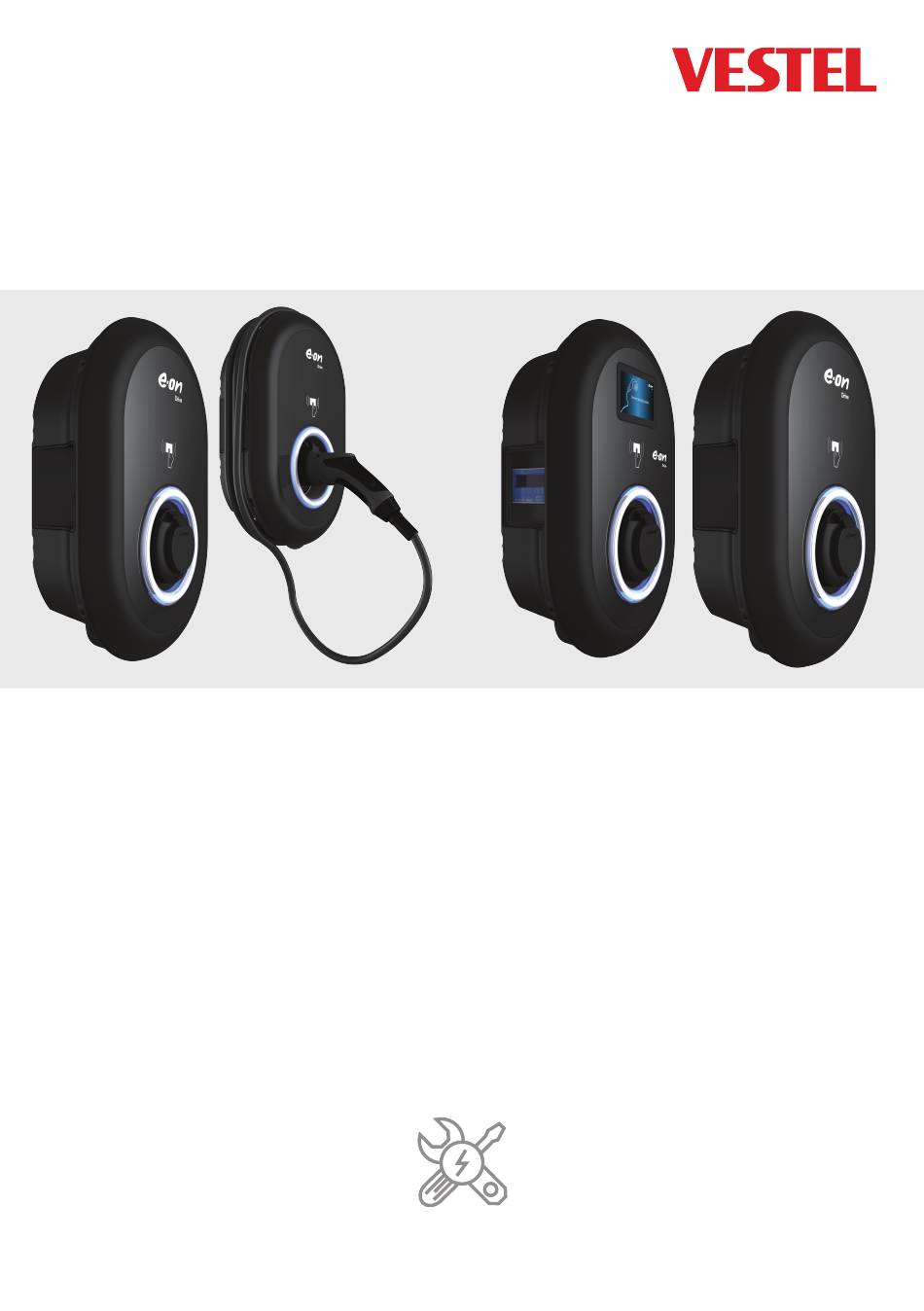

  • Page 1 ELECTRIC VEHICLE CHARGER EVC04 Series Installation Guideline...
