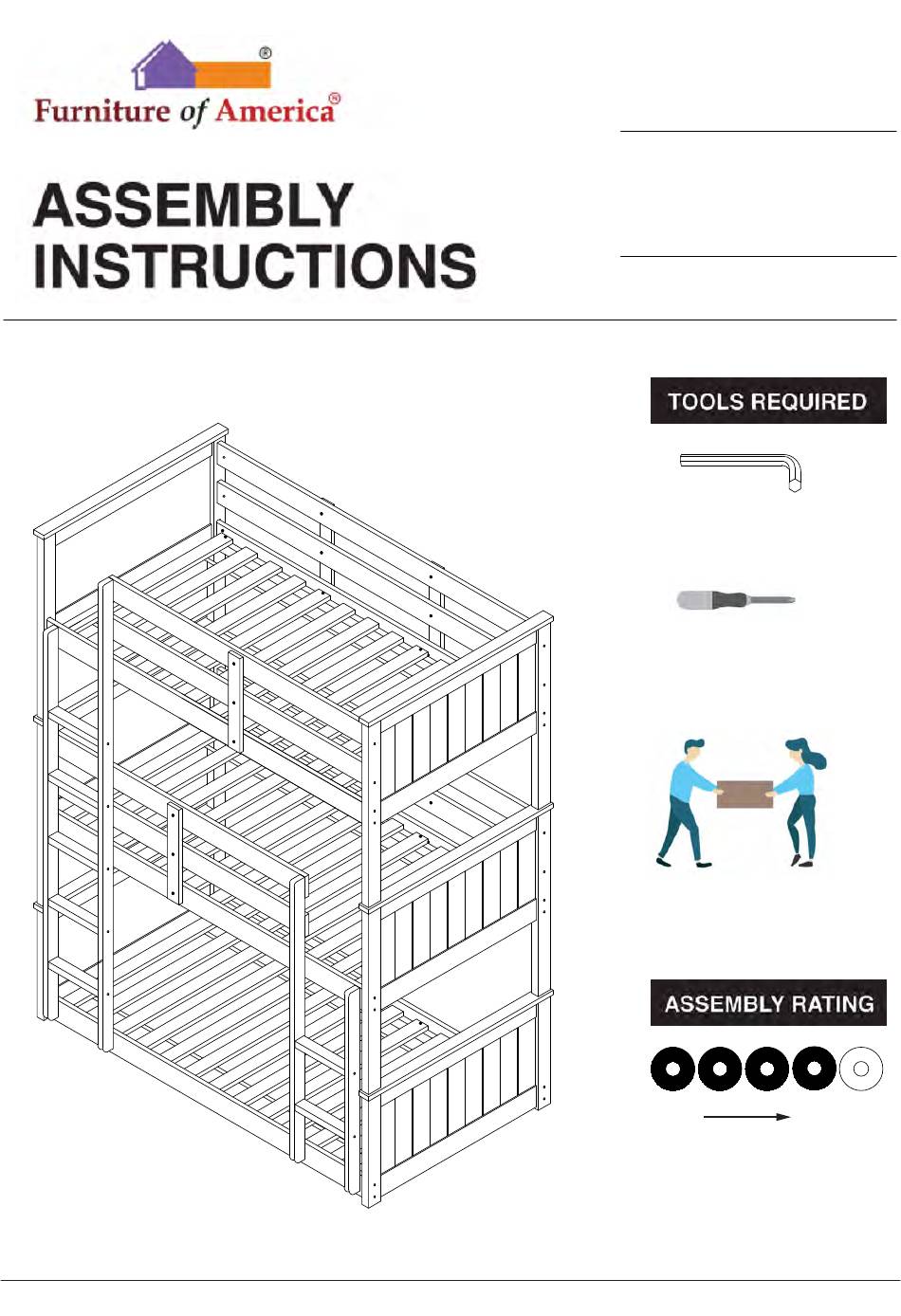

VERSION # 21-05-12
1 / 16
MODEL #
CM-BK628
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK628
Summary of Contents for Furniture of America CM-BK628
- Page 1 MODEL # CM-BK628 Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X 1 6...
- Page 5 DAYBED CM-BK628 #1 1pc #2 1pc #3 1pc #4 1pc Lower End Guardrail Lower End Guardrail Center End Guardrail Center End Guardrail #5 1pc #6 1pc #7 1pc #8 1pc Upper End Guardrail Upper End Guardrail Lower Front Side Lower Back Side...
- Page 6 #17 1pc #18 1pc #19 7pcs #20 3set Ladder Rung Ladder Rail (R) Ladder Rail (L) Twin Slats Kit (13pcs) #D 18pcs #A 36pcs #B 36pcs #C 14pcs Bolt Bolt Barrel Nut Bolt Ø1/4" x 1-3/16" Ø1/4" x 3-1/2" Ø1/4" x 1/2" Ø1/4"...
-
Page 7: Exploded View
Exploded View 7 / 16... - Page 8 CM-BK628 is packed in 5 cases Carton Disignation Part Hardware Upper End Guardrail CM-BK628-1 Upper End Guardrail Center End Guardrail CM-BK628-2 Center End Guardrail Lower End Guardrail CM-BK628-3 Lower End Guardrail #Ax36pcs #Bx36pcs Lower Front Side Rail #Cx14pcs #Dx18pcs #Ex14pcs...
- Page 9 CM-BK628 is packed in 5 cases Carton Disignation Part Hardware Upper Front Side Rail Back Guardrail Front Guardrail Guardrail Support CM-BK628-4 Ladder Rail (R) Ladder Rail (L) Ladder Rail (R) Ladder Rail (L) Ladder Rung CM-BK628-5 Twin Slats Kit 9 / 16...
- Page 10 ASSEMBLY INSTRUCTIONS Align lower end guardrails (#1,2) to the lower side rails (#7,8), then secure by using bolts (#A). Part #1 x 1pc Part #2 x 1pc Part #7 x 1pc Part #8 x 1pc Hardware #A x 8pcs Hardware #B x 8pcs Attach dowels (#F) onto the guardrails (#12,13).
- Page 11 ASSEMBLY INSTRUCTIONS Part #14 x 3pcs Hardware #D x 9pcs Hardware #J x 9pcs Align guardrail supports (#14) to the rails of the center bunk, then secure by using bolts (#D) onto nuts (#J). Attach dowels (#F) onto the guardrails (#12,13). Align upper side rails (#10,11) and guardrails (#12,13) to the upper end guardrails (#5,6), then Part...
- Page 12 ASSEMBLY INSTRUCTIONS Part #14 x 3pcs Hardware #D x 9pcs Hardware #J x 9pcs Align guardrail supports (#14) to the rails of the upper bunk, then secure by using bolts (#D) onto nuts (#J). Hardware #G x 8pcs Insert dowels (#G) onto lower and center bunk when stacking the bunk beds together.
- Page 13 ASSEMBLY INSTRUCTIONS Part #15 x 1pc Part #16 x 1pc Part #19 x 5pcs Hardware #E x 10pcs Align ladder rungs (#19) to the ladder rails (#15,16), then secure by using screws (#E). Align ladder rungs (#19) to the ladder Part #17 x 1pc rails (#17,18), then secure by using...
- Page 14 ASSEMBLY INSTRUCTIONS Insert dowels (#F) to both ladders, then align the ladders to the bunk bed. Secure by using bolts (#C). Hardware #C x 14pcs Hardware #F x 8pcs Align slats (#20) to the bunk beds, then secure by using screws (#H).
- Page 15 ASSEMBLY INSTRUCTIONS 15 / 16...
- Page 16 16 / 16...
