ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
DIFFICULT
Tools Required For Assembly:
Allen Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 9
(Included)
(Not Included)
Rev: 18-06-27
Advertisement
Related Manuals for Furniture of America Emilie CMBK633EXTT
Summary of Contents for Furniture of America Emilie CMBK633EXTT

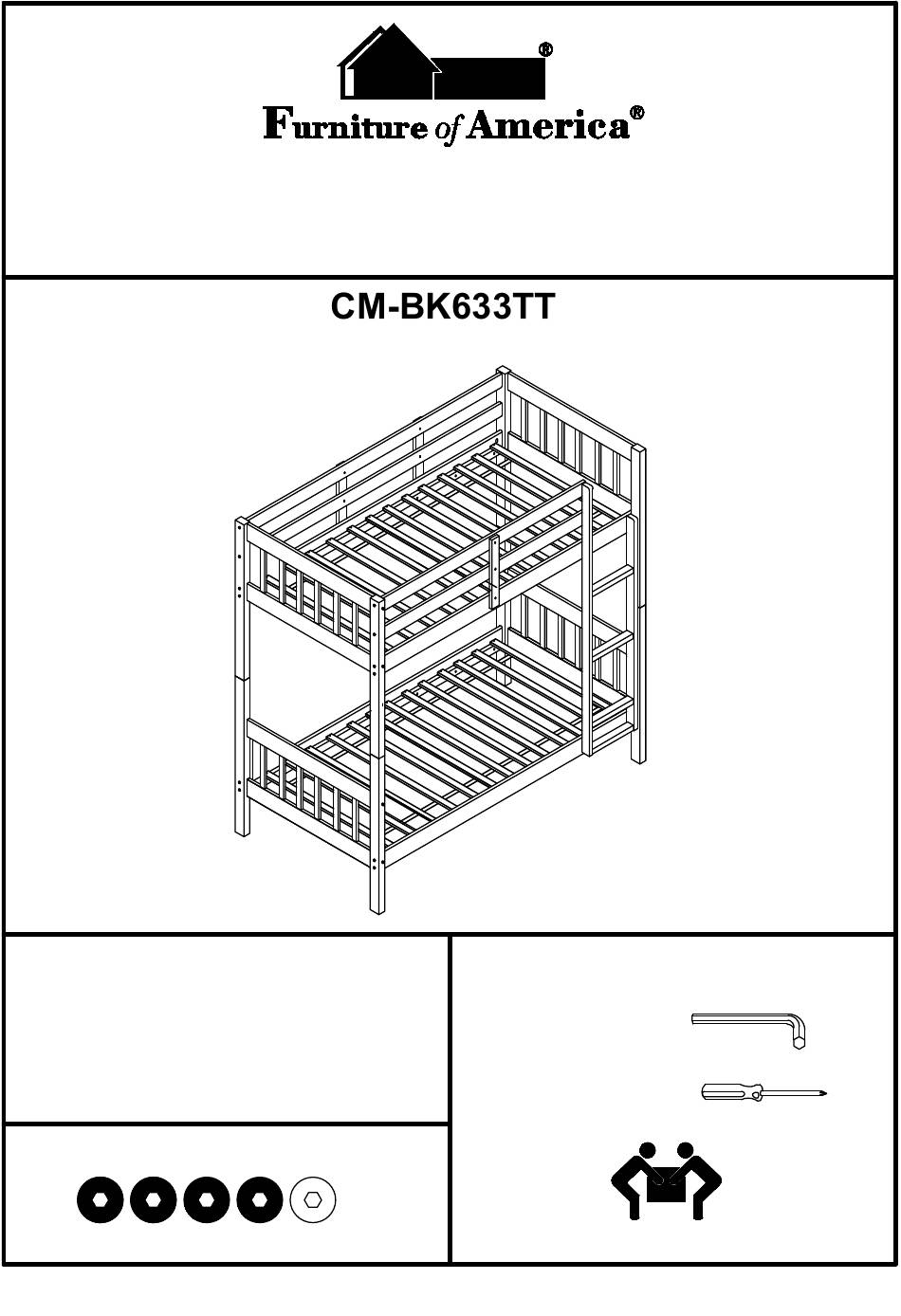

- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 9...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #9 x 2pcs #1 x 1pc Upper End Guardrail Back Guard Rail #10 x 2pcs #2 x 1pc Upper End Guardrail Front Guard Rail #11 x 2 Sets...
- Page 4 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 16 pcs #F x 6pcs Bolt Ø5/16"x 4" Bolt Ø1/4"x1-5/8" #B x 16pcs #G x 8pcs Barel Nut Ø5/16"...
- Page 5 #A x 8pcs #B x 8pcs Insert barrel nuts (#B) to the side holes of the lower side rails (#5,6). Align lower side rails (#5,6) to the holes of the lower end guardrails (#3,4), then secure by tightening bolts (#A) onto barrel nuts (#B).
- Page 6 Align guardrail supports (#12) to the guardrails, then secure by using bolts (#C). #C x 9pcs Place metal dowels (#E) onto the holes on top of lower end guardrails (#3,4), then carefully align upper end guardrails (#1,2) to lower end guardrails (#3,4). #E x 4pcs Page 6 of 9...
- Page 7 Align ladder rungs (#15) to the ladder rails (#13,14), then secure by using screws (#G). #G x 8pcs Align ladder to the bunk bed, then secure by using bolts (#F) #F x 6pcs Page 7 of 9...
- Page 8 Align slat kits (#11) to the bunk beds, then secure by using screws (#D). #D x 52pcs ASSEMBLY IS COMPLETED Page 8 of 9...
- Page 9 Page 9 of 9...
