With the mounting base securely installed, the
IP Horn can be attached to the base. Note the
socketed connectors on the horn and base, and
make sure they line up properly before pressing
the two together. Use the four #8-32 x 1 ¼ "
screws to attach the horn to the mounting base.
Reset Modes
Resetting the horn programming back to
Factory Defaults can be performed by
connecting/disconnecting the PoE connection
(power) in a specific sequence.
Connect the network cable (PoE) and let the
VIP-142-IC begin to boot up. After 45 seconds,
disconnect the ethernet cable. Repeat this
action 9 more times, for a total of 10 starts. On
the next boot up, the VIP-142-IC will reset all
configuration items (including the password) to
factory default settings.
Setup
The VIP-142-IC will automatically acquire an IP
address (using DHCP) and connect to the
InformaCast server when connected to the
network and powered up. Information specific to
your application will need to be programmed
into the InformaCast server. Refer to the
InformaCast documentation for further
information.
Additional programming for non-InformaCast
functions can be programmed using the Valcom
IP Solutions Setup Tool. The free IP Solutions
Setup Tool can be downloaded from the Valcom
website at www.valcom.com/vipsetuptool.
TECHNICAL ASSISTANCE
Assistance is available from the factory when
problems are encountered. Call (540) 563-2000
and press 1 for Technical Support or visit our
website at http://www.valcom.com
Valcom, Inc. equipment is not field repairable.
Valcom maintains service facilities in Roanoke,
VA.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature
of the problem.
Send the unit to:
Repair and Return Dept.
Roanoke, VA 24019-5056
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty.

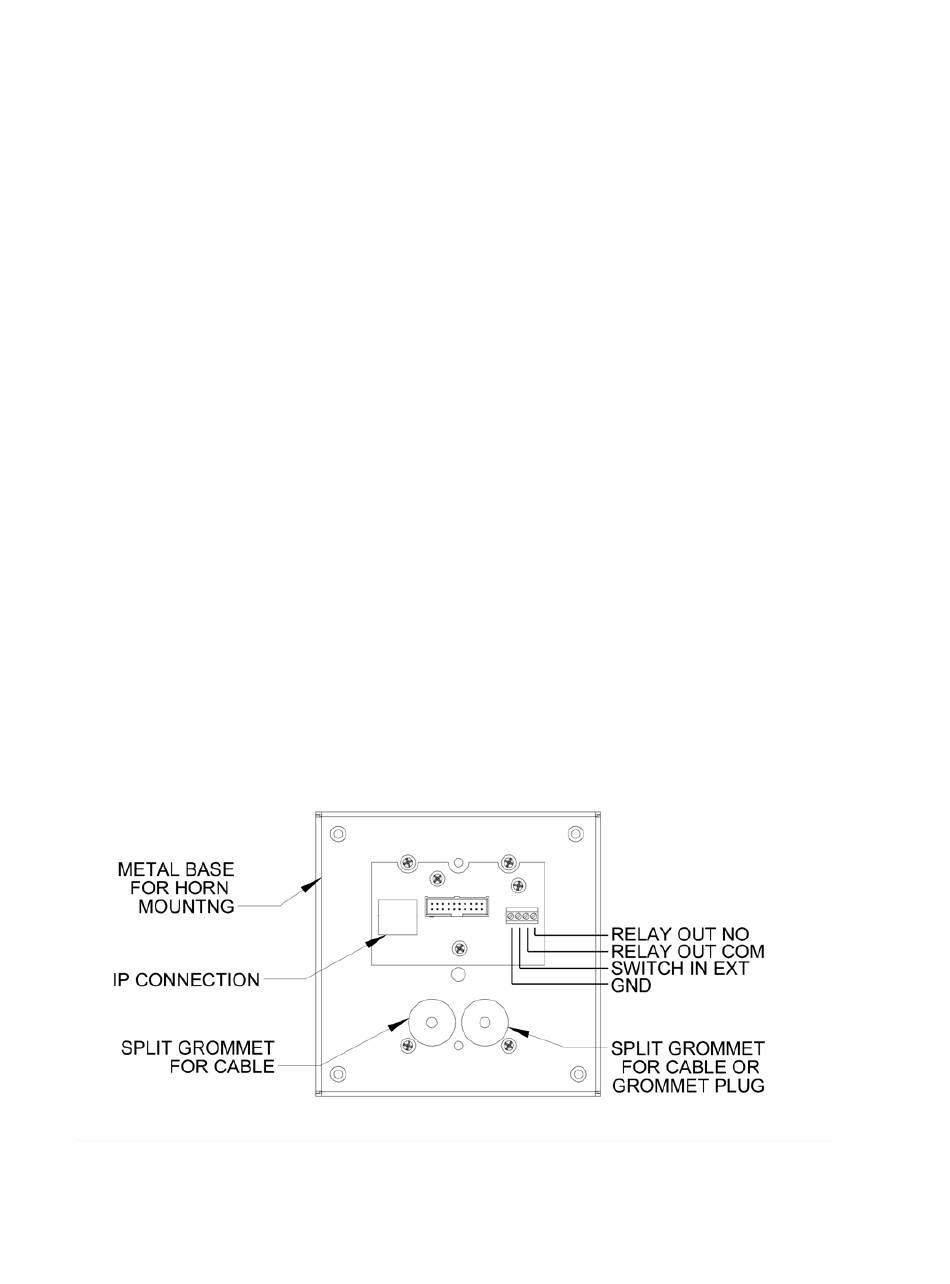

Figure 1.
3
Valcom, Inc.
5614 Hollins Road
947104
