Polycom SoundStructure C16 Hardware Installation Manual page 8

0004F2BF001D
Status LED is Off
Solid
1 second followed by
0.5 seconds
Once the SoundStructure VoIP Interface has finished booting, the interface will, by default, play a welcome
WAV file. If the VoIP input channel is routed to outputs in the room through the SoundStructure system
matrix, then the welcome WAV file will be heard on those output channels.
Configuring the SoundStructure VoIP Interface
The SoundStructure VoIP interface can be configured through a series of configuration parameters or via
the Polycom Web Configuration Utility. For more information on configuration parameters or using the Web
Configuration Utility, see the Polycom UC Software Administrator Guide on
Use SoundStructure Studio software to configure the SoundStructure device and a limited subset of
SoundStructure VoIP Interface settings. For setup information, see the section "Integrating SoundStructure
with SoundStructure VoIP Interface" in the Design Guide for the Polycom SoundStructure C16, C12, C8,
and SR12.
You can find the IP address of the SoundStructure VoIP Interface on the wiring page as shown in the next
illustration.You can access the advanced settings of the SoundStructure VoIP Interface by clicking the Web
Configuration button or by directly typing the VoIP interface's IP address into your browser. The Web
Configuration Utility provides access to advanced setup features of the SoundStructure VoIP Interface.
The default login and password for the Web Configuration Utility are Polycom and 456, respectively.
Note: Polycom UC Software 5.x.x and later uses HTTPS as the default protocol for accessing the
Web Configuration Utility. If the Web Configuration Utility page fails to load when accessed from
SoundStructure Studio, enter https:// followed by the IP address of the SoundStructure VoIP Interface
into a web browser. For example, enter https://10.223.74.23.
For more information, refer to the Polycom UC Software Administrator Guide or Release Notes
Polycom Voice Support
See the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12 for additional information
on configuring the SoundStructure VoIP Interface.
Polycom, Inc.

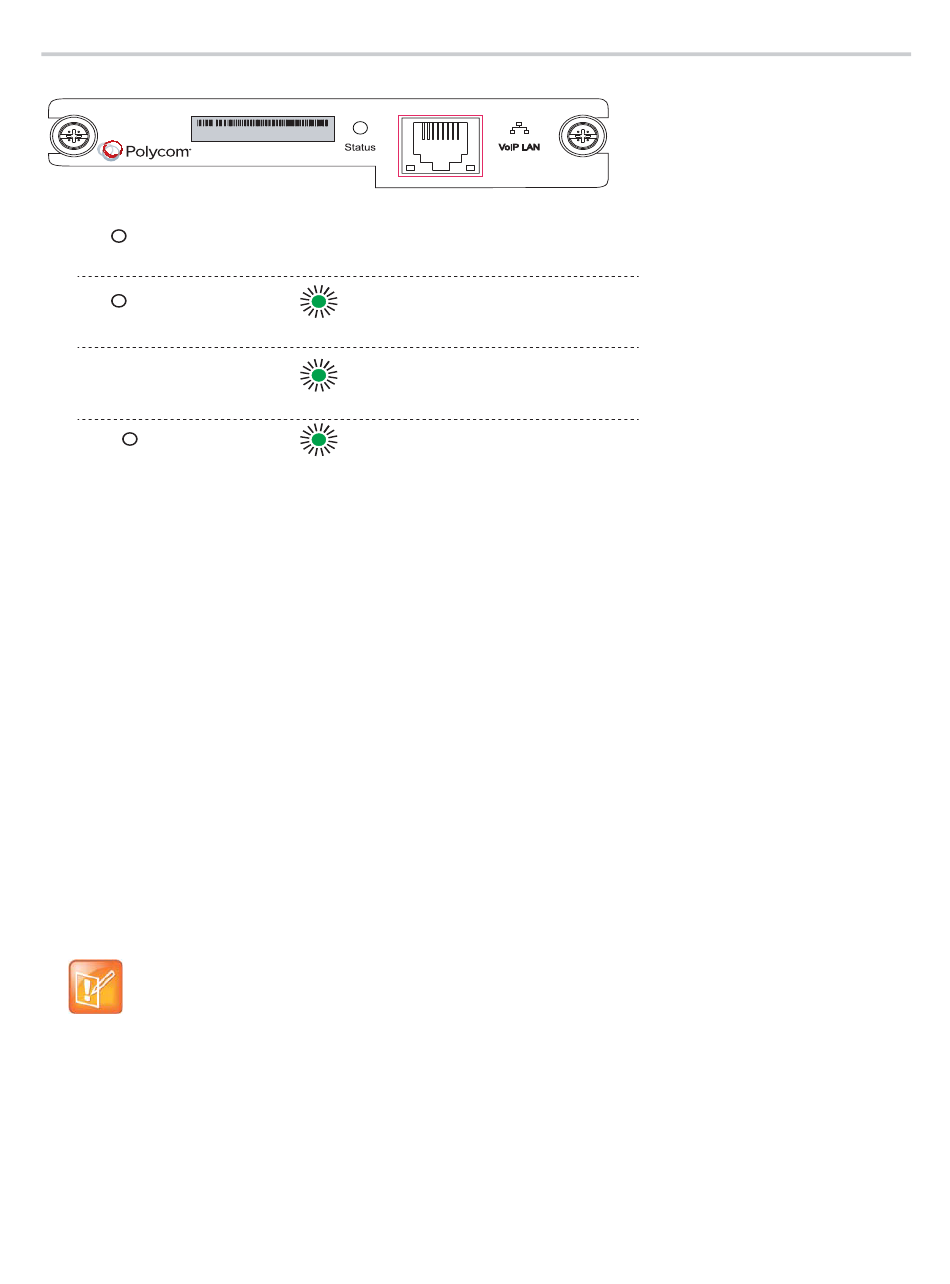

Status LED is On Description
VoIP Interface is not powered
or device firmware is < 1.5.0
1 second VoIP Interface is booting
VoIP Interface is ready to be
Solid configured or controlled
0.5 seconds Hardware issue detected
for the UC Software version running on your SoundStructure VoIP Interface.
Polycom Voice Support.
on
8
