SoundStructure VoIP Interface
The Polycom ® SoundStructure ® VoIP Interface is a plug-in card for the SoundStructure C16, C12, C8, and
SR12 audio processing devices. The SoundStructure VoIP Interface supports up to 12 lines and 24 call
appearances where a call appearance is a connection between the SoundStructure VoIP Interface and a
remote caller.
The SoundStructure C16, C12, and C8 products feature acoustic echo cancellation, noise cancellation,
equalization, feedback elimination, and automatic microphone mixing on all audio inputs. In addition, there
is a full matrix mixer, dynamics processing, delay, and submix processing. The SoundStructure SR12 does
not include acoustic echo cancellation processing but does include noise cancellation, automatic
microphone mixing, matrix mixing, equalization, feedback elimination, dynamics processing, delay, and
submix processing.
This guide shows you how to install the SoundStructure VoIP Interface product into a SoundStructure
system. For information on how to terminate connections to the SoundStructure products, see the
SoundStructure Hardware Installation guide. For information on how to configure a SoundStructure system,
including the SoundStructure VoIP Interface, see the Design Guide for the Polycom SoundStructure C16,
C12, C8, and SR12.
What's Included With the SoundStructure VoIP
Interface

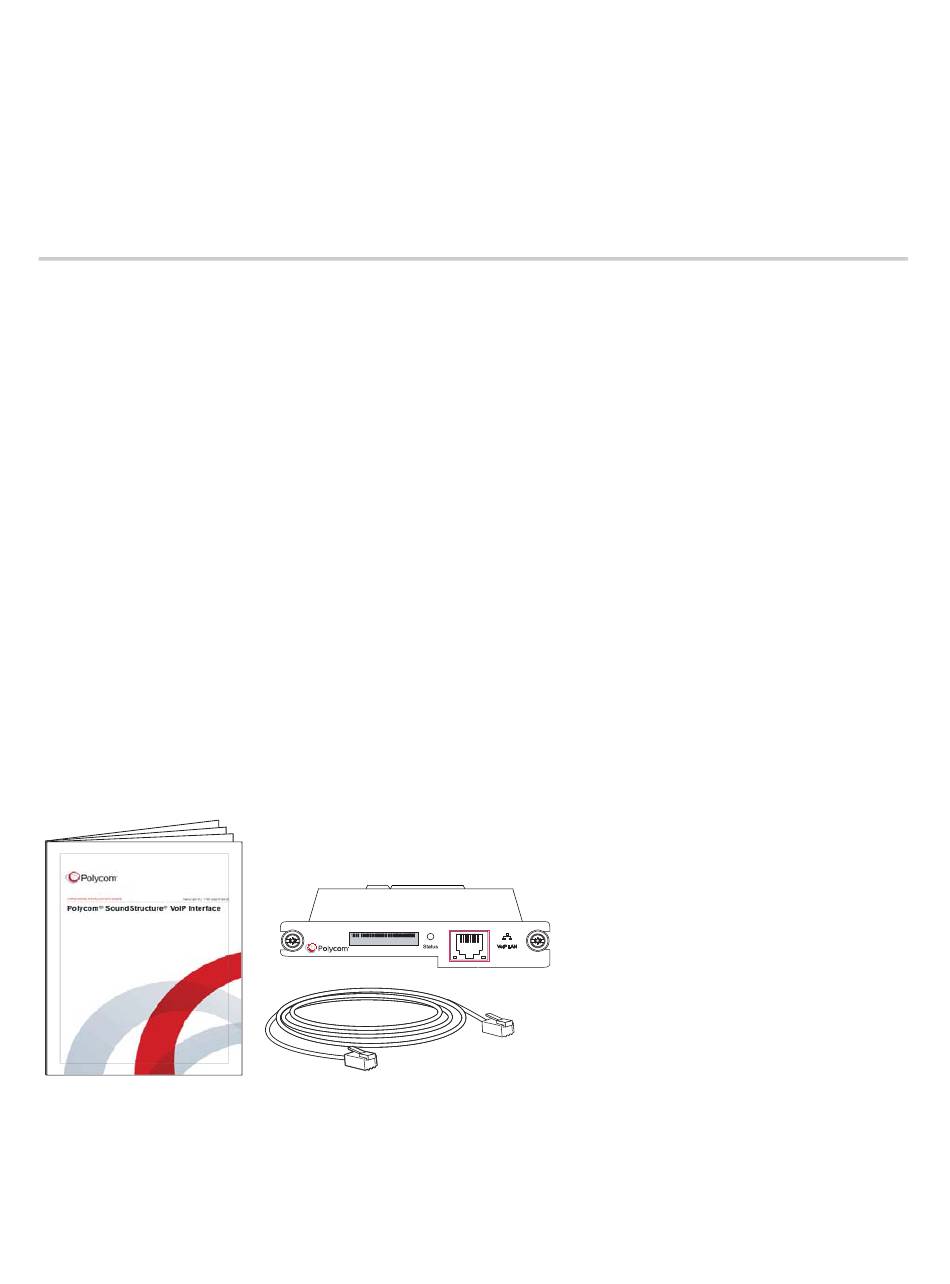

The SoundStructure VoIP Interface product includes this manual, the SoundStructure VoIP interface plug-in
card, and a 7-foot long Ethernet cable as shown in the following figure.
0004F2BF001D
Tools Required
You will require a Phillip-head screwdriver to remove the blank rear-panel plate from the SoundStructure
device.
