Before installing the SoundStructure VoIP Interface, refer to the Design Guide for the Polycom
SoundStructure C16, C12, C8, and SR12 for help preparing the SoundStructure device in the following
situations:
● If you are upgrading a SoundStructure project from a SoundStructure TEL1 or TEL2 telephony card
to a SoundStructure VoIP Interface card, see the section "Upgrading a Project to the SoundStructure
VoIP Interface."
● If you are creating a new SoundStructure project with the SoundStructure VoIP Interface, see the
section "Creating a New Project with the SoundStructure VoIP Interface."
To install a plug-in card:
1 If you want to keep your current configuration, save your current project to disk before powering
down your SoundStructure system.
2 If the SoundStructure system is plugged in, unplug the AC power cord from all SoundStructure
devices in your system.

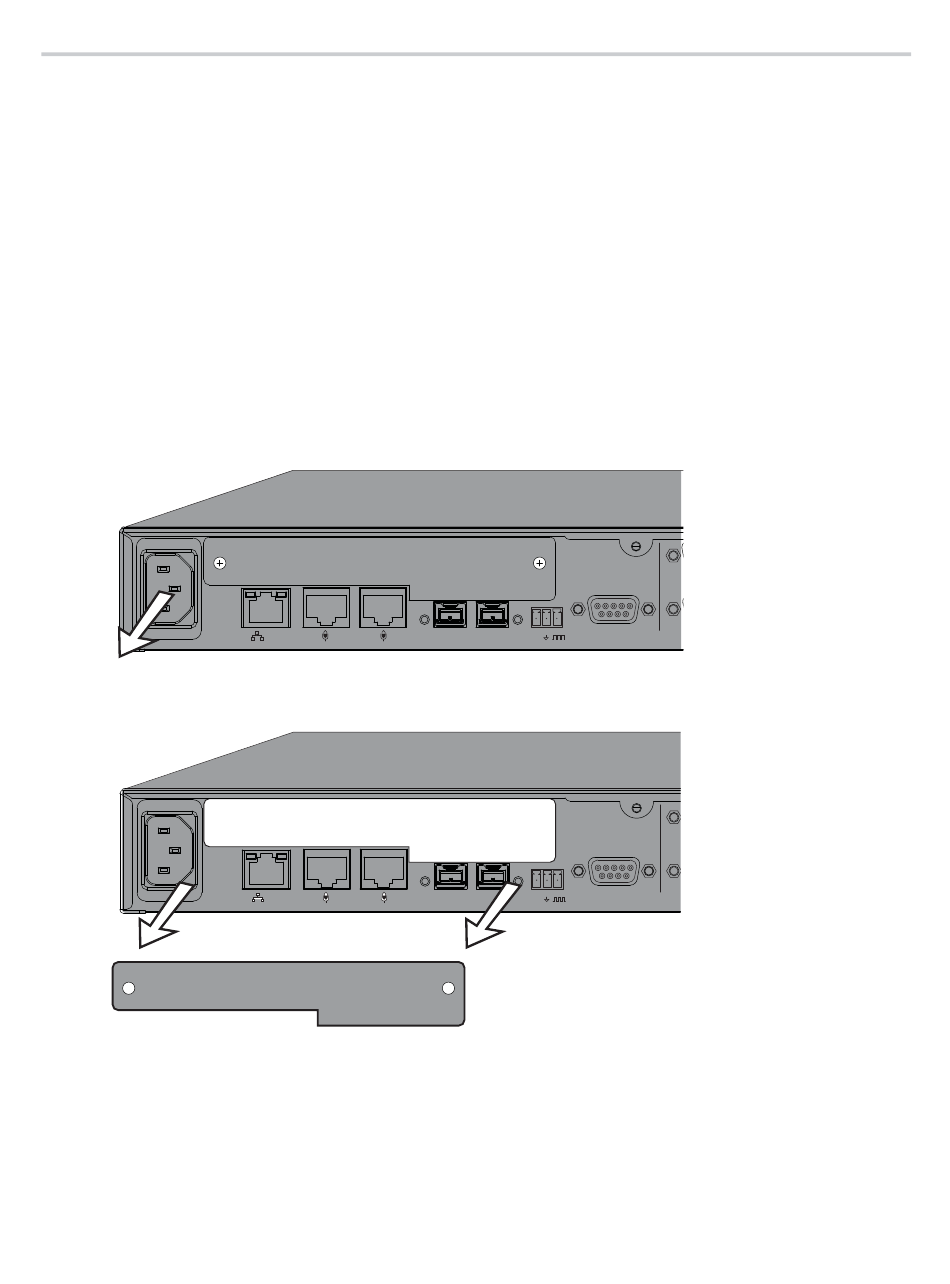

3 Remove the blank plate and screws from the expansion slot as shown next.
