4 Insert the plug-in card into the slotted rails and push until it is tight into the slot.

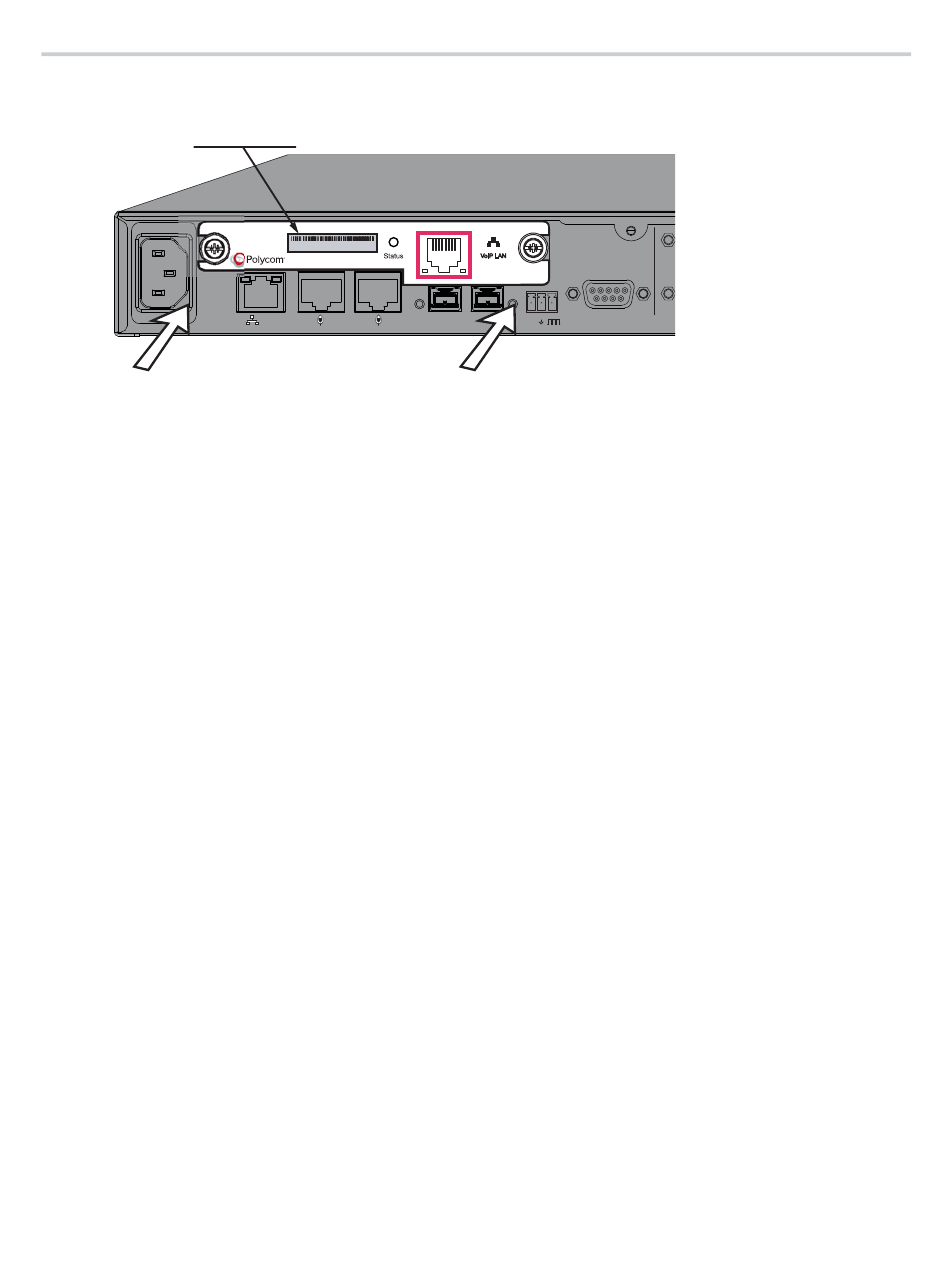

MAC address
5 Tighten the thumbscrews on the rear panel of the plug-in card.
6 Repeat steps 3 through 5 for any additional plug-in cards. When you have finished installing the
plug-in cards, plug in the AC power cable on all SoundStructure devices in the system.
When the system boots up, the SoundStructure VoIP Interface is discovered automatically by the
SoundStructure device. However, you need to manually add the SoundStructure VoIP Interface to the
design using SoundStructure Studio. See the section "Creating a New Project with SoundStructure VoIP
Interface" in the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12.
Note that the MAC address of the VoIP interface is printed on the rear-panel label of the SoundStructure
VoIP Interface. The MAC address information may be required for integrating the SoundStructure VoIP
Interface with your call management platform.
See the Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12 for details on how to create
a new project or upgrade an existing project to use for integrating the SoundStructure VoIP Interface into a
typical call management platform.
Connecting the System to the Local Area Network
There is a network interface on the SoundStructure VoIP Interface for connection to the VoIP local area
network and a network interface on the SoundStructure device for connection to the A/V management and
control local area network. This section describes how these network interfaces are used.
Polycom, Inc.
PHONE
0004F2009EFF
LAN C-LINK2
IN
LINE PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
OBAM IR
OUT 12V
