Brighter Eye900 Pro User Manual

19x15w rgbw led beam zoom moving head
Hide thumbs Also See for Eye900 Pro:

Advertisement

Quick Links

Download this manual

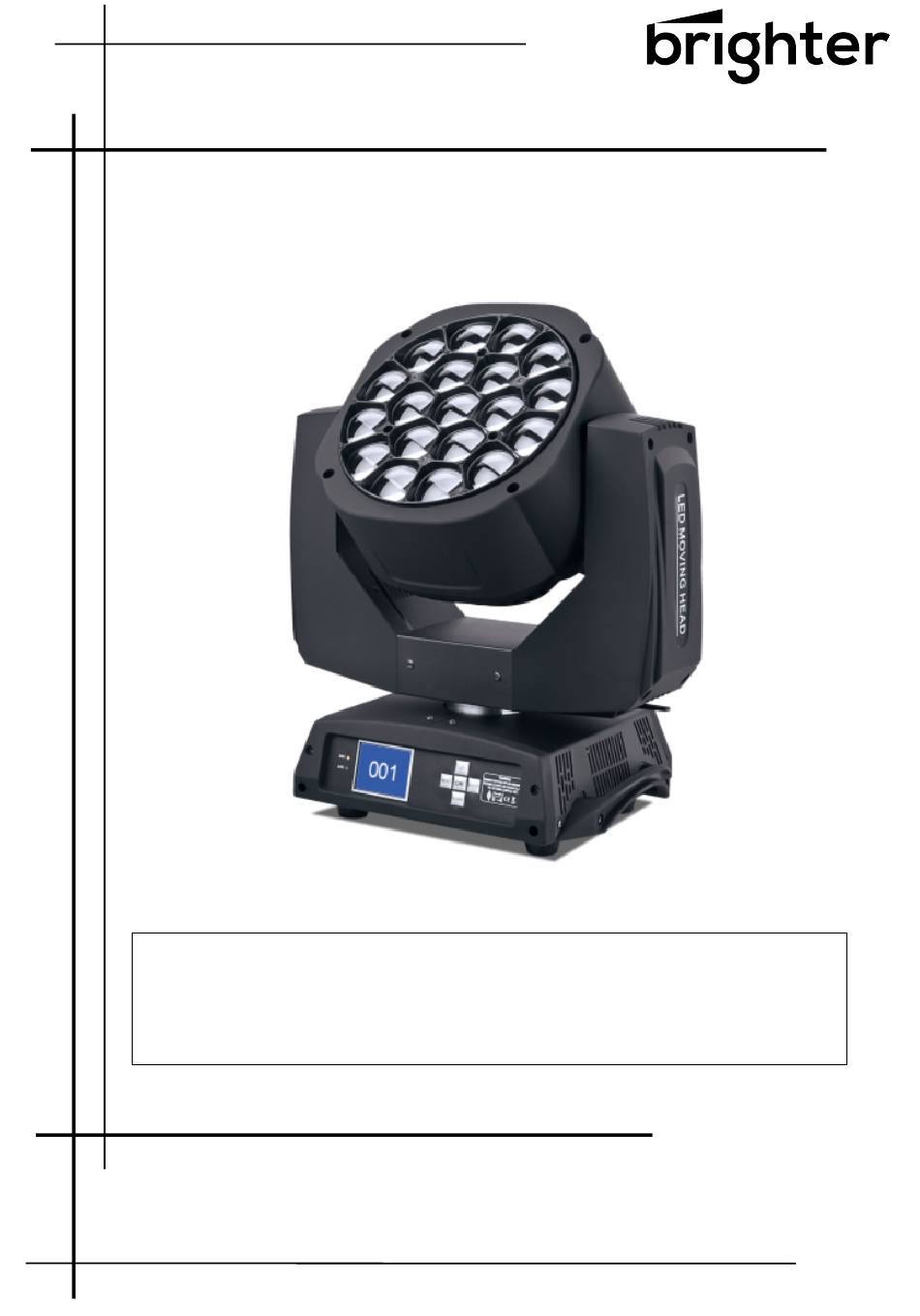

Eye900 Pro
19x15W RGBW LED Beam Zoom Moving Head
This product manual contains important information about the safe
installation and use of this projector. Please read and follow these instructions
carefully and keep this manual in a safe place for future reference.
User manual
Please read the instructions carefully before use

Advertisement

loading

Related Manuals for Brighter Eye900 Pro

Summary of Contents for Brighter Eye900 Pro

  • Page 1 Eye900 Pro 19x15W RGBW LED Beam Zoom Moving Head This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Before Using

    Before Using What is include Equipment x 1 ● Power cable with Plug x 1 ● User manual x 1 ● Iron holder x 2 ● Open Instruction Please open the equipment carefully ,and check all the spare parts are included or not.If any part of the cause of the failure due to improper transportation or carton,please keep the packing materials and immediately inform the shipper to check.If the equipment must be returned to the factory,the equipment should be use the original carton and packaging.
  • Page 3 When choosing installation position of equipment and the equipment must be more than ● 0.5m distance between objects. Please use the equipment wires appropriate. ● Without the manufacturer’s authorization or laypeople don’t remove,repair and modification ● of equipment. The maximum operating temperture is 40℃，don’t operate the equipment when it is over ●...

  • Page 4: Installation

    Smooth and accurate positioning   Tilt,Pan high-speed infinite rotation,speed can be adjusted.  The scanning position can be memory,it will be automatically reset without expected movement after rotation. 0-20HZ Strobe、pulse strobe、Asynchronous stroboscopic effect. ● Super mixed color and rainbow effect. ●...
  • Page 5 Power supply connection The equipment can be used in the wide voltage input。Please make sure the voltage is the scale of rated voltage when connecting the power.The equipment can adapt to 100V to 240 V AC voltage and 50-60 Hz. The front lens may be infinited rotation in foward and reverse ...

  • Page 7: Dmx Channel Table

    DMX Channel Table EXTENDED RGBW FULL CHAN-NEL CHANNEL MODE CHAN-NEL CHANNEL MODE Red fine Red fine Green Green Green fine Green fine Blue Blue Blue fine Blue fine White White White fine White fine Linear CTO Linear CTO Macro colour Macro colour Strobe Strobe...
  • Page 8 STANDARD SHAPES EXTENDED CHAN-NEL CHANNEL MODE CHAN-NEL CHANNEL MODE CHAN-NEL CHANNEL MODE Red fine Red fine Red fine Green Green Green Green fine Green fine Green fine Blue Blue Blue Blue fine Blue fine Blue fine White White White White fine White fine White fine Linear CTO...
  • Page 9 MACRO COLOUR COLOUR BIT VALUE REFERENCE 209-255 White Dirty White Alice Blue 191-206 Congo Blue 0、 184-190 Dark Steel Blue 180-183 Deep lavender Lilac Tint 175-178 Daylight Blue Flame Red 172-173 Bastard Amber 168-171 Deep Orange 162-167 Pale Gold 157-161 Apricot 151-156 Bright Blue...
  • Page 10 32-34 Dark Amber Gold Amber Medium Amber Fire 27-28 Surprise Peach 23-26 Straw Tint 20-22 Medium Yellow Black White 5000 K White 3700 K White 7000 K Magenta Yellow Cyan Blue Green Macro color OFF •FUNCTION EFFECT 103 – 255 Reserved 52 –...
  • Page 11 159-160 = STOP. Ring Opening 161-255 = min to max (Close/open) speed, Opening effect Filled 0-15=Snap effect 16-255=Fade effect and gamma selection For K10: 0-63 = STOP 0-255 → 0-15=Snap 0-7=wash Random pixels 64-158 = max to min select effect 8-15=Bkgnd distributed speed, Instant-on...
  • Page 12 Shape Selection Description PANDOM SHAPE SPEED SHAPE SHAPE FADE BACKGROUND COLORS 1 OFFSET SELECT(*3)(*4) Bar 2 (Variable size) N.a. 0-63=STOP, 0-255 → select Linear fade For K10: indexed speed shape width 0-7=wash 64-158=max to min 8-15=Bkgnd Random explosion 0-255 → select Linear fade speed,c.cw rotation,...
  • Page 13 •ZOOM ROTATION EFFECT FAST ROTATION SLOW ROTATION 191-192 STOP SLOW ROTATION FAST ROTATION LINEAR ROTATION •ZOOM ROTATION(available on zoom • ZOOM ROTATION(available channel from 0 bit to 42 bit) zoom channel at 255 bit only) MACRO EFFECT MACRO EFFECT 193-255 CCW Rotation, speed from 3 RPH to 10 RPM 128-255 Lens offset angle: 0.00 degree...
  • Page 14 Rainbows DMX channel value:23-24 . t simulates a rainbow effect. The Shape Speed channel increases the speed and defines the rotation: from 126 (min speed) to 0 (max speed) counter clock wise rotation and from 129 (min speed) to 255 (max speed) clock wise rotation.
  • Page 15 Macro Off DMX channel value: from 0 to 7. No shape effects activated Turns off any previously selected shape Static Rings DMX channel value: from 8 to 14 . The ring or ring used by the macro are turned on with the foreground colour (Shape Red+Shape Green+Shape blue+Shape White) Avaliable combinations: Ring 1 On, Ring 2 On,Ring 3 Dynamic Rings...
