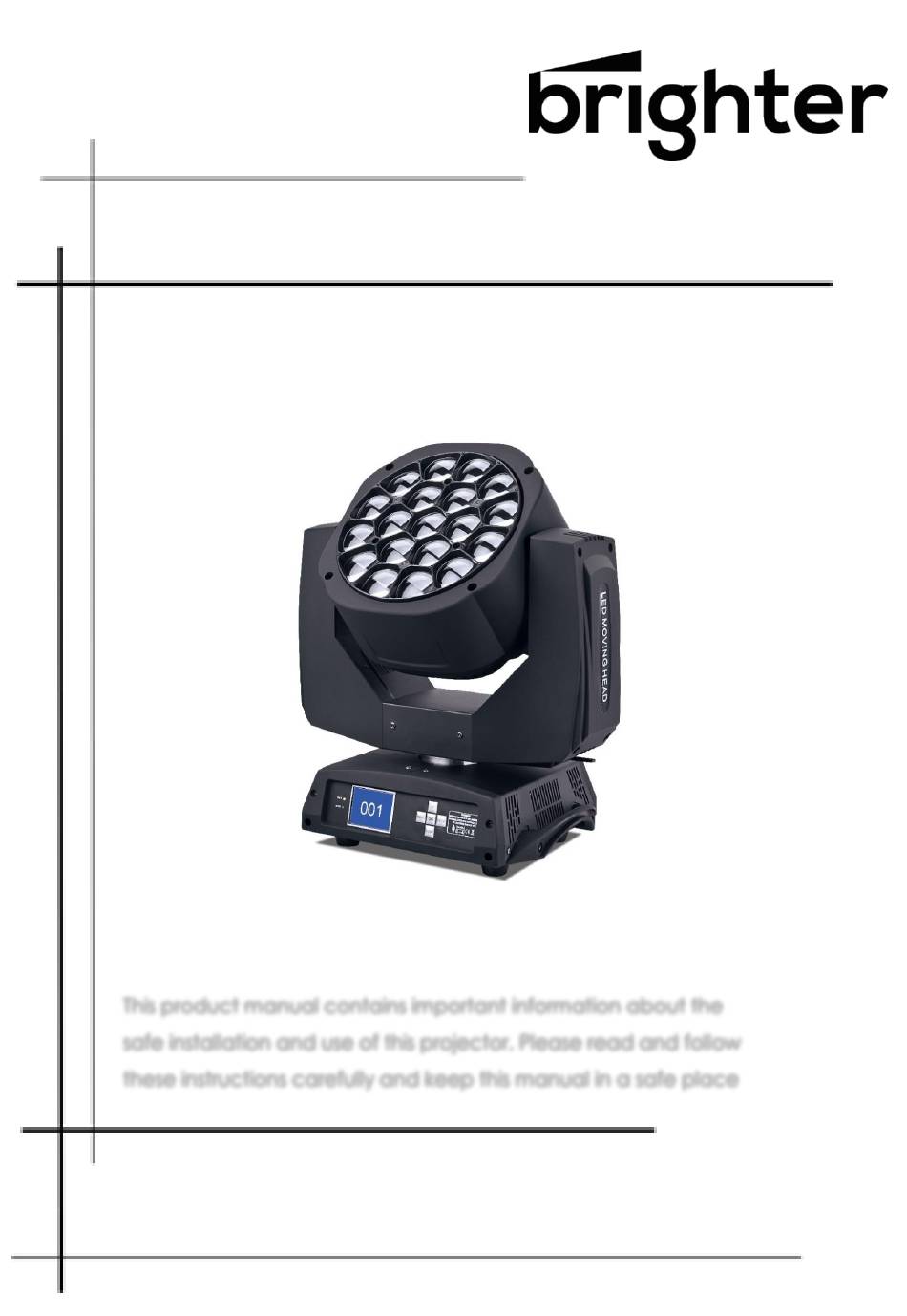

Page 1: User Manual
Eye 900 Pro LED Wash This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place User manual Please read the instructions carefully before use... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions ............................3 2. Unpacking ............................... 4 3. Features & Specifications ..........................5 5. Menu Operations ............................5 6. Installation..............................6 7. DMX-512 Control Connections ........................6 8. DMX Channels ..............................7 10. Maintenance and Cleaning ......................... 14 STATEMENT The product has full capability and intact packing when leaves factory. -
Page 3: Safety Instructions
1. Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. ... -
Page 4: Unpacking
DO NOT open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Caution: There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs by yourself. -
Page 5: Features & Specifications
3. Features & Specifications Rated Voltage: AC100V～240V 50-60HZ Rated Power: 450W LED Qty: 19x15W high power 4in1 LEDs LED Drive Current: 1000mA Beam Angle: 4-60°Zoom IP: IP20 DMX Mode: 21CH（Standard/35CH(Shapes)/78CH(Extend)/97CH(Extend RGBW))/92CH(Full) Net weight: 15 Kg ... -
Page 6: Installation
6. Installation The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. -
Page 7: Dmx Channels
8. DMX Channels... - Page 11 Rainbows...
- Page 12 Rainbows DMX channel value:23-24 simulates a rainbow effect. The Shape Speed channel increases the speed and defines the rotation: from 126 (min speed) to 0 (max speed) counter clock wise rotation and from 129 (min speed) to 255 (max speed) clock wise rotation.
- Page 13 Macro Off DMX channel value: from 0 to 7. No shape effects activated Turns off any previously selected shape Static Rings DMX channel value: from 8 to 14 . The ring or ring used by the macro are turned on with the foreground colour (Shape Red+Shape Green+Shape, blue+Shape, White) Available combinations: Ring 1 On, Ring 2 On, Ring 3 Dynamic Ring...
-
Page 14: Maintenance And Cleaning
lf foreground colors are all set to 0 the Random-Colors mode is activated. The Shape Smoothing channel adjusts the fading effect applied to the macro movement The color used by the macro changes at every restart. 10. Maintenance and Cleaning The following points have to be considered during the inspection: ...
