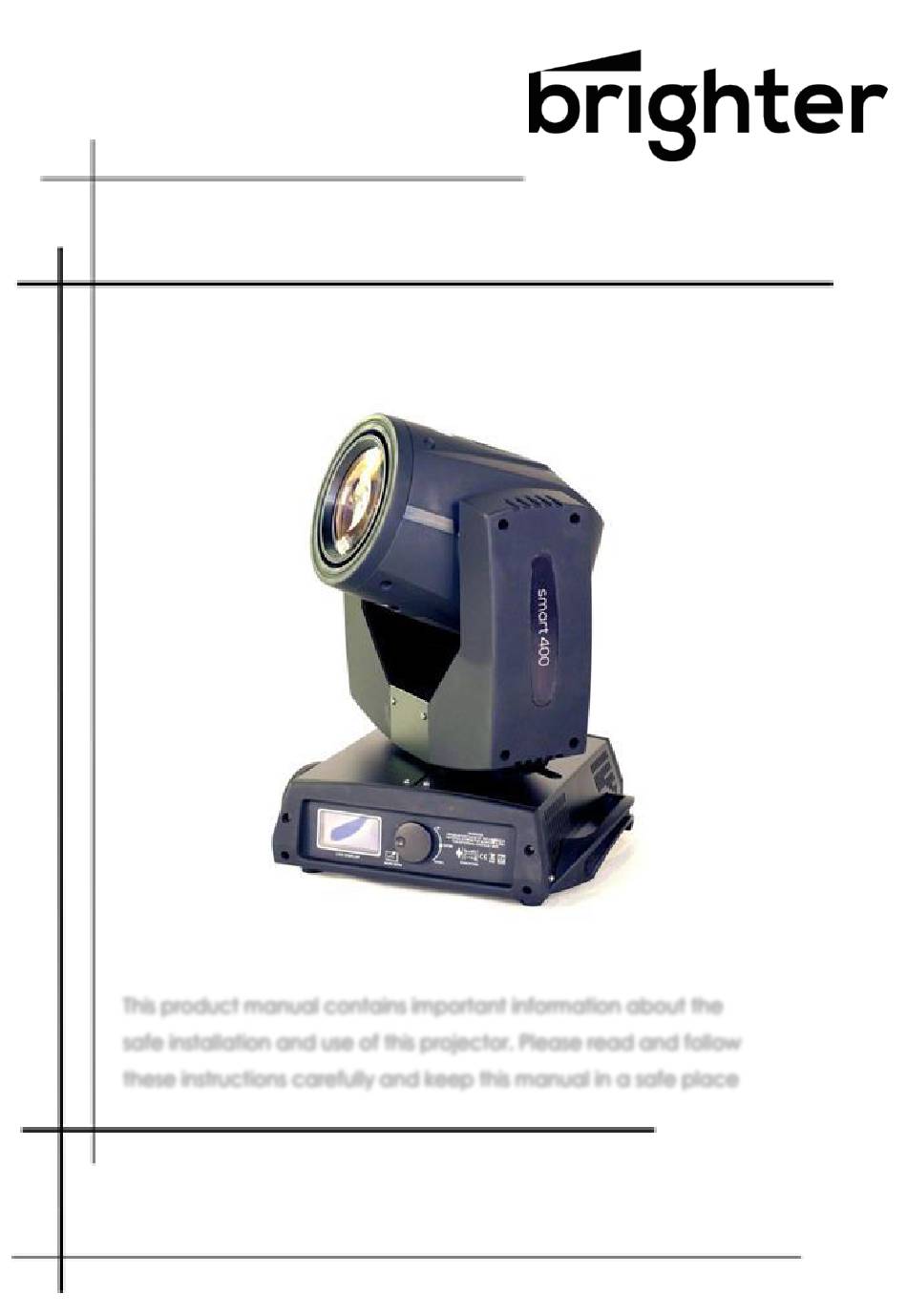

Smart 400
Beam
This product manual contains important information about the
safe installation and use of this projector. Please read and follow
these instructions carefully and keep this manual in a safe place
User manual
Please read the instructions carefully before use
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart 400 and is the answer not in the manual?

Questions and answers

Related Manuals for Brighter Smart 400

Summary of Contents for Brighter Smart 400

  • Page 1 Smart 400 Beam This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ............................3 2. Unpacking ............................... 4 3. Features & Specifications ..........................4 5. Operating Instructions ............................ 5 6. Installation..............................5 7. DMX-512 Control Connections ........................6 8. Menu Operations ............................6 9. DMX Channels ..............................8 10.

  • Page 3: Safety Instructions

    1. Safety Instructions  Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.  Unpack and check carefully there is no transportation damage before using the unit. ...

  • Page 4: Unpacking

    are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. The equipment must be fixed by professionals.

  • Page 5: Operating Instructions

    Characteristic functions:  If you turn off optical shutter for 5 seconds, the power will automatically reduce 35% , to extend the service life of the lamp.  Monitoring the lamp and cooling fan speed, when the fan speed is lower than 500RPM, lamp will extinguish to protect the lamp.

  • Page 6: Dmx-512 Control Connections

    7. DMX-512 Control Connections This product accepts the international standard DM 512 ( 1990) of the digital control signal. Please use the 3 pin or 5pin XLR plugs&socket offed by factory to connect the first projector’s input to the second projector output, and connect the second projectors output to the third projectors input and so on.
  • Page 7 LED pilot lamp: POWER: Power signal lamp, red LED keeps bright means working normally. DMX:DMX512 signal pilot lamp, green LED keeps bright means working normally. ADJUST: LCD display brightness adjustment. Menu function:...

  • Page 8: Dmx Channels

    9. DMX Channels CHANNEL MODE CHANNEL STANDARD (16) EXTENDED (20) COLOR WHEEL COLOR WHEEL STROBE STROBE DIMMER DIMMER FIXGOBO FIXGOBO PRISM INS PRISM INS PRISM ROT PRISM ROT PRISM MOVE PRISM MOVE FROST FROST FOCUS FOCUS PAN FINE PAN FINE TILT TILT TILT FINE...
  • Page 9 18-21 ORANGE 22-25 ORANGE+AQUAMARINE 26-29 AQUAMARINE 30-34 AQUAMARINE+DARK GREEN 35-38 DARK GREEN 39-42 DARK GREEN+GREEN 43-46 GREEN 47-51 GREEN+LAVENDER 52-55 LAVENDER 56-59 LAVENDER+PINK 60-63 PINK 64-68 PINK+YELLOW 69-72 YELLOW 73-76 YELLOW+ MAGENTA 77-81 MAGENTA 82-85 MAGENTA+CYAN 86-89 CYAN 90-93 CYAN+CTO2 94-98 CTO2 99-102...
  • Page 10 FROM SLOW TO FAST 2CH:STROBE CLOSED LIGHT OPEN LIGHT 8-97 STROBE FROM SLOW TO FAST 98-101 OPEN LIGHT 102-126 PULSE ON ,STROBE FROM SLOW TO FAST 127-151 PULSE OFF,STROBE FROM SLOW TO FAST 152-155 LIGHT ON 156-180 RANDOM PULSE ON,STROBE FROM SLOW TO FAST 181-205 RANDOM PULSE OFF,STROBE...
  • Page 11 4CH：GOBO WHITE GOBO1 8-11 GOBO2 12-15 GOBO3 16-19 GOBO4 20-23 GOBO5 24-27 GOBO6 28-31 GOBO7 32-35 GOBO8 36-39 GOBO9 40-43 GOBO10 44-47 GOBO11 48-51 GOBO12 52-55 GOBO13 56-59 GOBO14 60-63 GOBO15 OPEN LIGHT 8-97 STROBE FROM SLOW TO FAST 98-101 OPEN LIGHT 102-126 PULSE ON...
  • Page 12 181-205 RANDOM PULSE OFF,STROBE FROM SLOW TO FAST 206-209 LIGHT ON 210-249 RANDOM STROBE FROM SLOW TO FAST 250-255 LIGHT OFF 3CH：DIMMER 0-225 DIMMER FROM DARK TO BRIGHT 4CH：GOBO WHITE GOBO1 8-11 GOBO2 12-15 GOBO3 16-19 GOBO4 20-23 GOBO5 24-27 GOBO6 28-31 GOBO7...
  • Page 13 72-115 GOBO ANTICLOCKWISE RAINBOW FROM SLOW TO FAST 116-159 GOBO CLOCKWISE RAINBOW FROM FAST TO SLOW 160-166 GOBO 1 SHAKE FROM SLOW TO FAST 167-172 GOBO 2 SHAKE FROM SLOW TO FAST GOBO SHAKE FROM 173-179 SLOW TO FAST 180-185 GOBO 4 SHAKE FROM SLOW TO FAST 186-191...
  • Page 14 TO FAST 237-243 GOBO 13 SHAKE FROM SLOW TO FAST 244-249 GOBO 14 SHAKE FROM SLOW TO FAST 250-255 GOBO 15 SHAKE FROM SLOW TO FAST 5CH：PRISM 0-127 WITHOUT PRISM 128-255 WITH PRISM 6CH：PRISM 0-360° POSITION ROTATION 0-63 64-127 CLOCKWISE ROTATION FROM FAST TO SLOW 128-191 ANTICLOCKWISE ROTATION...
  • Page 15 14CH：PAN-TILT SPEED 0-255 SPEED FROM FAST TO SLOW 15CH： FUNCTION 0-13 UNUSED RANGE 14-24 PAN-TILT MOVES,BLACKOUT 25-35 CHANGE GOBOS, BLACKOUT 36-46 CHANGE COLORS,BLACK OUT CHOOSE PRISMS，BLACK OUT 47-57 CHOOSE FROST，BLACK OUT 58-68 XY、GOBO、COLOR、FROST， 69-79 CHANGING，BLACKOUT GOBO、COLOR、 80-90 FROST,FUNCTION CHANGES,BLACKOUT 91-101 UNUSED RANGE 102-112 DISPLAY SCREEN ON...

  • Page 16: Maintenance And Cleaning

    10. Maintenance and Cleaning The following points have to be considered during the inspection:  All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.  There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
