MAGIC MATRIX

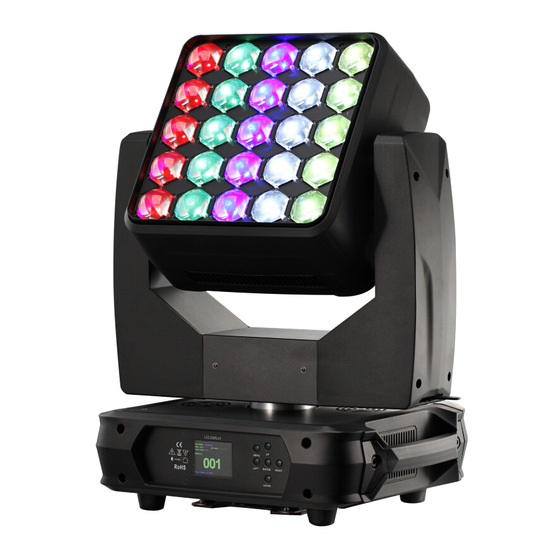

25*4in1 LED Matrix Moving Head Zoom
This product manual contains important information about the safe
installation and use of this projector. Please read and follow these instructions
carefully and keep this manual in a safe place for future reference.
User manual
Please read the instructions carefully before use

Advertisement

loading

Related Manuals for Brighter MAGIC MATRIX

Summary of Contents for Brighter MAGIC MATRIX

  • Page 1 MAGIC MATRIX 25*4in1 LED Matrix Moving Head Zoom This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ....................2-3 2. Technical Specifications ................... 4 3. Lux Date ........................5 4. How To Control The Unit ................. 5-16 5. How to control unit with Artnet ................17 6. Trouble shooting ...................... 18 7. Fixture Cleaning....................... 19 statement The product has well capability and intact packing when leave factory.
  • Page 3  Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or serving.

  • Page 4: Technical Specifications

    2. Technical Specifications Light Sources: 25x 4in1 RGBW LED LENS Beam Angle: 6.5-60° Power Consumption: 484W Power Voltage: AC 100-240V, 50/60Hz Dimension: 40*31*47CM Net Weight: 14Kgs Control Control Modes: DMX512,Artnet control DMX mode :13/ 24/88/113 Channels Artnet mode : 75/100 channels Pan/Tilt Pan/Tilt: infinite rotation Pan/Tilt Resolution: 8/16 bit...

  • Page 5: Lux Date

    3. Lux Date 4. How To Control The Unit The DMX512 is widely used in intelligent lighting control,with a DMX 512 controller.connect several lights together,dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
  • Page 6 Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...
  • Page 7 Dmx Value ALL… Display DMX Value XXXC/F Temperature Fixture Current Hours Hours Total Hours Last Hours Ethernet IP X.X.X.X IP Address X.X.X.X IP Mark Software VX.X.X… Software Version Version Pan Reverse ON/OFF Pan Tilt Tilt Reverse ON/OFF Pan-Degree 540/360 Encoder ON/ OFF Pan Tilt Speed Speed 1~ 4...
  • Page 8 Temperature Celsius Fahrenheit Reset Default Reset To ON/OFF Factory Default Manual Password=XXX …... … White All White All =XXX Test Channel … White All Calibration Password Password=XXX PAN=XXX TILT PAN=XXX ZOOM ZOOM=XXX Rotation Rotation =XXX Reset Reset ALL Reset All Motors Standard Standard Mode Shape RGB...
  • Page 9 12 control White of first LED, channel 14 control RED of second LED. DMX channel´ s functions and values (24/88/113DMX channels): Mode/Channel Value Function Shap DMX& Standard &Net RGBW PAN Movement 8bit : 0-255 Pan Movement Pan Fine 16bit 0-255 Fine control of Pan movement TILT Movement 8bit : 0-255 Tilt Movement Tilt Fine 16bit...
  • Page 10 0-31 Led trun off 32-63 Led turn on 64-95 Strobe effect slow to fast 96-127 Led turn on 128-159 Pulse-effect in sequences 160-191 Led turn on 192-223 Random strobe effect slow to fast 224-255 Led turn on Dimmer intensity: 0-255 Intensity 0 to 100% Dimmer Mode: 0-20 Mode1...
  • Page 11 200-231 RED to WHITE 232-255 Crossfading colours from slow to fast Color Presets: No function 5--9 White1 10--14 White2 15-19 White3 20-24 White4 25-29 White5 30-34 White6 35-39 Color1 40-44 Color2 45-49 Color3 50-54 Color4 55-59 Color5 60-64 Color6 65-69 Color7 70-74 Color8 75-79 Color9 80-84 Color10...
  • Page 12 140-144 Color22 145-149 Color23 150-154 Color24 155-159 Color25 160-164 Color26 165-169 Color27 170-255 Reserved Color Presets Dimmer: 0-255 Dimmer 100 to 0% Chase Patterns: No function 6-10 Number'0' 11-15 Number'1' 16-20 Number'2' 21-25 Number'3' 26-30 Number'4' 31-35 Number'5' 36-40 Number'6' 41-45 Number'7' 46-50 Number'8' 51-55 Number'9'...
  • Page 13 106-110 K 111-115 L 116-120 M 121-125 N 126-130 O 131-135 P 136-140 Q 141-145 R 146-150 S 151-155 T 155-160 U 161-165 V 166-170 W 171-175 X 176-180 Y 181-185 Z 186-190 0'-'9' 191-195 A'-'Z' 196-200 0'-'Z' 201-205 Patter function1 206-210 Patter function2 211-215 Patter function3 216-220 Patter function4...
  • Page 14 ↑Chase Up 0-49 50-99 ←Chase Left 100-149 ↓Chase Down 150-255 →Chase Right Chase Speed: 0-125 Fast to Slow Backward 126-130 Stop(Speed=0) 131-255 Slow to Fast Forward Chase Fade: 0-255 Fade Chase Red LED -all arrays : 0-255 Red ( 0-Black , 255-100% Red ) Green LED-all arrays 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -all arrays :...
  • Page 15 Red LED -array 2 : 0-255 Red ( 0-Black , 255-100% Red ) Green LED-array 2 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -array 2 : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED -array 2 : 0-255 White ( 0-Black , 255-100% White ) Red LED -array 3 : 0-255 Red ( 0-Black , 255-100% Red )
  • Page 16 0-255 White ( 0-Black , 255-100% White ) Red LED -array 6 : 0-255 Red ( 0-Black , 255-100% Red ) Green LED-array 6 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -array 6 : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED -array 6: 0-255 White ( 0-Black , 255-100% White ) Red LED -array 7 :...

  • Page 17: How To Control Unit With Artnet

    5.How to control Unit with ArtNet Manual set 1. Setting IP Address, choose to manual input IP address, better choose ON IP2 ON IP10 auto set. IP Mask 255.0.0.0 input 3. Universe choose Source select , input signal selection, there are three options: →...

  • Page 18: Trouble Shooting

    5. When fixtures signal input select Art-Net or DMX & Art-Net, means selected Art-Net controller to control fixtures. But Art-Net controller also need set the same IP address, IP MARK as fixtures. Setting via menu Information Ethernet IP IP Address IP MARK →...

  • Page 19: Fixture Cleaning

    7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
