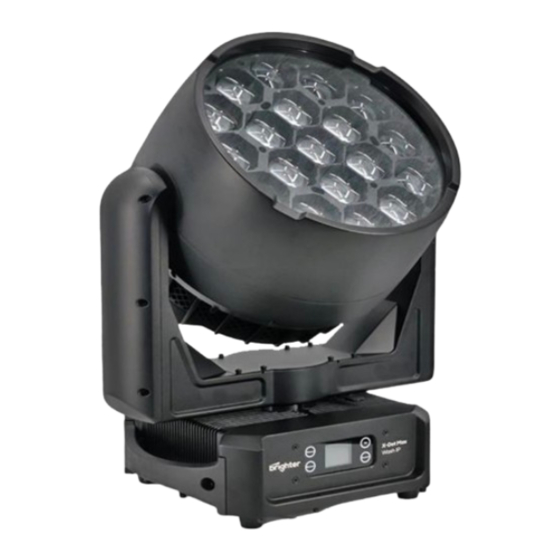

Brighter X-DOT MAX User Manual

Hide thumbs Also See for X-DOT MAX:

Advertisement

Table of Contents

BRIGHTER LIGHTING SP. Z.O.O.
ul. Warszawska 111
32-087 Bibice
POLAND
NIP: 9442248196
REGON: 361197164
USER MANUAL
X-DOT MAX
USER MANUAL
This product manual contains important information about the safe installation and use of this projector. Please
read and follow these instructions carefully and keep this manual in a safe place for future reference.
Page 1 of 35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-DOT MAX and is the answer not in the manual?

Questions and answers

Related Manuals for Brighter X-DOT MAX

Summary of Contents for Brighter X-DOT MAX

  • Page 1 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 USER MANUAL X-DOT MAX USER MANUAL This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

  • Page 2: Safety Precautions

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Please read the instructions carefully before use! 1. SAFETY PRECAUTIONS This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual.

  • Page 3: Maintenance

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 DO NOT operate fixture if the power cord is frayed, crimped, damaged or if any of the power cord ▪ connectors are damaged and do not insert into the fixture securely with ease NEVER force a power cord connector into the fixture.
  • Page 4 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Please refer to the following points during routine inspections: • A detailed electric check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating •...

  • Page 5: System Menu

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 4.SYSTEM MENU Main Menu Sub Menu Option/Value Option/Value Address 028CH 099CH Channel Mode 252CH 322CH ArtNet sACN Control Mode DMX+ArtNet DMX+sACN Mode 1 Mode 2 Dimmer Mode...
  • Page 6 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Tilt 001~255 Focus 001~255 Rotate 001~255 Chinese Language English Screen Reverse NO/YES/AUTO Lock Touch NO/YES Load Default NO/YES IP Mode:CUSTOM 002.000.000.001 Ethernet IP&Subnet Mask: 255.000.000.000 Network...

  • Page 7: Dmx Chart

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 5.DMX CHART The pixels are arranged in a grid pattern as illustrated below ( RGBL 1-19 /Aura LED 20-95) 28CH Mode(DMX,ArtNet,sACN) Value Function Description 0-255 0°- 540°...
  • Page 8 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 0-255 Zoom Fine 0-255 Lens Rotation Index (rotating to specified angle, no constant 0-127 rotation) stop 129-191 Clockwise rotate Inifiinite rotation From fast to slow stop...
  • Page 9 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 246-255 No Function 10CH 0-255 Master Dimmer Dark to light 11CH 0-255 Master Dimmer Fine 0-255 60W LED strobe Open 6-55 Synchronous strobe The larger value, the faster speed...
  • Page 10 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 111-125 Program 8 126-140 Program 9 141-155 Program 10 156-170 Program 11 171-185 Program 12 186-200 Program 13 201-215 Program 14 216-230 Program 15 231-245 Program 16...
  • Page 11 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 0-127 INDEX 128 – stop 129-191clockwise rotation from fast to slow, 192 stop,193 -255 25CH 0-255 Aura program speed counterclockwise rotate slow to fast 0-255 Marco Color...
  • Page 12 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 196-200 Dark Blue R=000,G=186,B=255,L=000 201-205 Leaf Green R=206,G=255,B=000,L=000 206-210 Dark Green R=084,G=255,B=013,L=000 211-215 Mauve R=227,G=041,B=056,L=000 216-220 Deep Golden Amber R=255,G=058,B=000,L=000 221-225 Pale Lavender R=255,G=197,B=061,L=000 226-230 Primary Green...
  • Page 13 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 35CH Mode(Support DMX/Artnet/sACN. Value Function Description 0-255 Dark to light 0-255 Red Fine 16 bit adjustable 0-255 Green Dark to light 0-255 Green Fine 16 bit adjustable...
  • Page 14 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 20-22 Medium Yellow 23-26 Straw Tint 27-28 Surprise Peach Fire Medium Amber Gold Amber 32-34 Dark Amber 35-44 Sunrise Red Light Pink 46-48 Medium Pink 49-61...
  • Page 15 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 142-144 Medium Blue Deep Golden Amber Pale Lavender 147-148 Special Lavender 149-150 Primary Green 151-156 Bright Blue 157-161 Apricot 162-167 Pale Gold 168-171 Deep Orange 172-173...
  • Page 16 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 26-76 Zoom Reset 77-127 P/T Reset 128-255 Total Reset 20CH 0-255 Zoom Narrow to Wide 21CH 0-255 Lens Rot 0-127 Index 128-190 CW F>S 191-192 Stop 193-255 CCW S>F...
  • Page 17 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Macro 26 Macro 27 Macro 28 Macro 29 Macro 30 Macro 31 Macro 32 Macro 33 Macro 34 Macro 35 Macro 36 Macro 37 Macro 38...
  • Page 18 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Macro 62 Macro 63 71-255 Macro Off 23CH 0-255 Macro Speed 0-63 Index Animation frame by frame 64-158 CW F>S 159-160 Stop 161-255 CCW S>F 24Ch...
  • Page 19 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 8-23 Background rings selection 24-255 Page 19 of 35...
  • Page 20 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 99CH Mode(Support DMX/Artnet/sACN. When you use DMX+Artnet mode, the 1-23CH are controlled by DMX protocol) Value Function Description 0-255 0°- 540° 0-255 Pan Fine 16 bit adjustable...
  • Page 21 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Program 8 111-125 Program 9 126-140 Program 10 141-155 Program 11 156-170 Program 12 171-185 Program 13 186-200 Program 14 201-215 Program 15 216-230 Program 16...
  • Page 22 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Dark Amber R=255,G=065,B=000,L=000 91-95 Sunrise Red R=255,G=083,B=002,L=000 96-100 Light Pink R=255,G=112,B=000,L=141 101-105 Medium Pink R=255,G=087,B=000,L=107 106-110 Pink Carnation R=255,G=107,B=000,L=130 111-115 Light Lavender R=243,G=117,B=039,L=197 116-120 Sky Blue...
  • Page 23 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6500K R=255,G=129,B=081,L=255 52-68 6000K R=255,G=121,B=073,L=255 69-85 5600K R=255,G=106,B=066,L=255 86-102 5000K R=255,G=090,B=055,L=255 103-119 4500K R=255,G=071,B=043,L=255 120-136 4000K R=255,G=055,B=034,L=255 137-153 3500K R=255,G=029,B=024,L=255 154-170 3200K R=255,G=011,B=019,L=255 171-187 3000K R=255,G=004,B=016,L=255...
  • Page 24 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 252CH Mode（support DMX/Artnet/sACN.When you use DMX+Artnet mode, the 1-24CH are controlled by DMX protocol)） Value Function Description 0-255 0°- 540° 0-255 Pan Fine 16 bit adjustable...
  • Page 25 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 51-65 Program 4 66-80 Program 5 81-95 Program 6 96-110 Program 7 111-125 Program 8 126-140 Program 9 141-155 Program 10 156-170 Program 11 171-185 Program 12...
  • Page 26 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 131-135 R=041,G=219,B=000,L=000 Dark yellow green 136-140 R=245,G=202,B=000,L=000 Spring Yellow 141-145 R=237,G=163,B=000,L=000 Light Amber 146-150 R=230,G=160,B=000,L=069 Straw Tint 151-155 R=255,G=166,B=000,L=000 Deep Amber 156-160 Orange R=255,G=122,B=000,L=000 161-165 R=255,G=141,B=031,L=000...
  • Page 27 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 188-204 R=255,G=000,B=000,L=105 3000K 205-221 R=000,G=255,B=255,L=000 2700K 222-238 R=255,G=255,B=000,L=000 2500K 239-255 R=255,G=000,B=255,L=000 2000K 0 – no change 1-64 magenta shift from low to max, 65-127 magenta shift from max to...
  • Page 28 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 322CH Mode（Support DMX/Artnet/sACN.When you use DMX+Artnet mode, the 1-18CH are controlled by DMX protocol) Value Function Description 0-255 0°- 540° 0-255 Pan Fine 16 bit adjustable...
  • Page 29 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 51-55 Yellow R=255,G=255,B=000,L=000 56-60 Magenta R=255,G=000,B=255,L=000 61-65 Medium Yellow R=156,G=126,B=000,L=000 66-70 Straw Tint R=152,G=115,B=009,L=000 71-75 Surprise Peach R=198,G=114,B=009,L=000 76-80 Fire R=255,G=056,B=000,L=000 81-85 Medium Amber R=255,G=135,B=000,L=000 86-90...
  • Page 30 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 246-250 Deep Orange R=222,G=084,B=000,L=000 251-255 Flame Red R=255,G=046,B=002,L=000 0-255 Color temperature preset Color temperature 2000K-8000K 17Ch 0-17 Off light 18-34 8000K R=255,G=182,B=110,L=255 35-51 7500K R=255,G=144,B=089,L=255 52-68...
  • Page 31 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 ....320CH 0-255 LED95 Red Dark to light 321CH 0-255 LED95 Green Dark to light 322CH 0-255 LED95 Blue Dark to light - 31...

  • Page 32: Dynamic Effects

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 6.SPECIFICATIONS CONSTRUCTION/PHYSICAL Dimensions: 514x430x280mm Weight: 23 Kg Exterior Color: Black Housing Material: Magnesium-aluminum die-casting +aluminum profile DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0-25Hz Standalone: Yes...

  • Page 33: Dimensional Drawings

    BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 7.DIMENSIONAL DRAWINGS - 33...
  • Page 34 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 The manufacturer reserves the right to make changes to technical parameters - 34...
  • Page 35 BRIGHTER LIGHTING SP. Z.O.O. ul. Warszawska 111 32-087 Bibice POLAND NIP: 9442248196 REGON: 361197164 Page 35 of 35...
