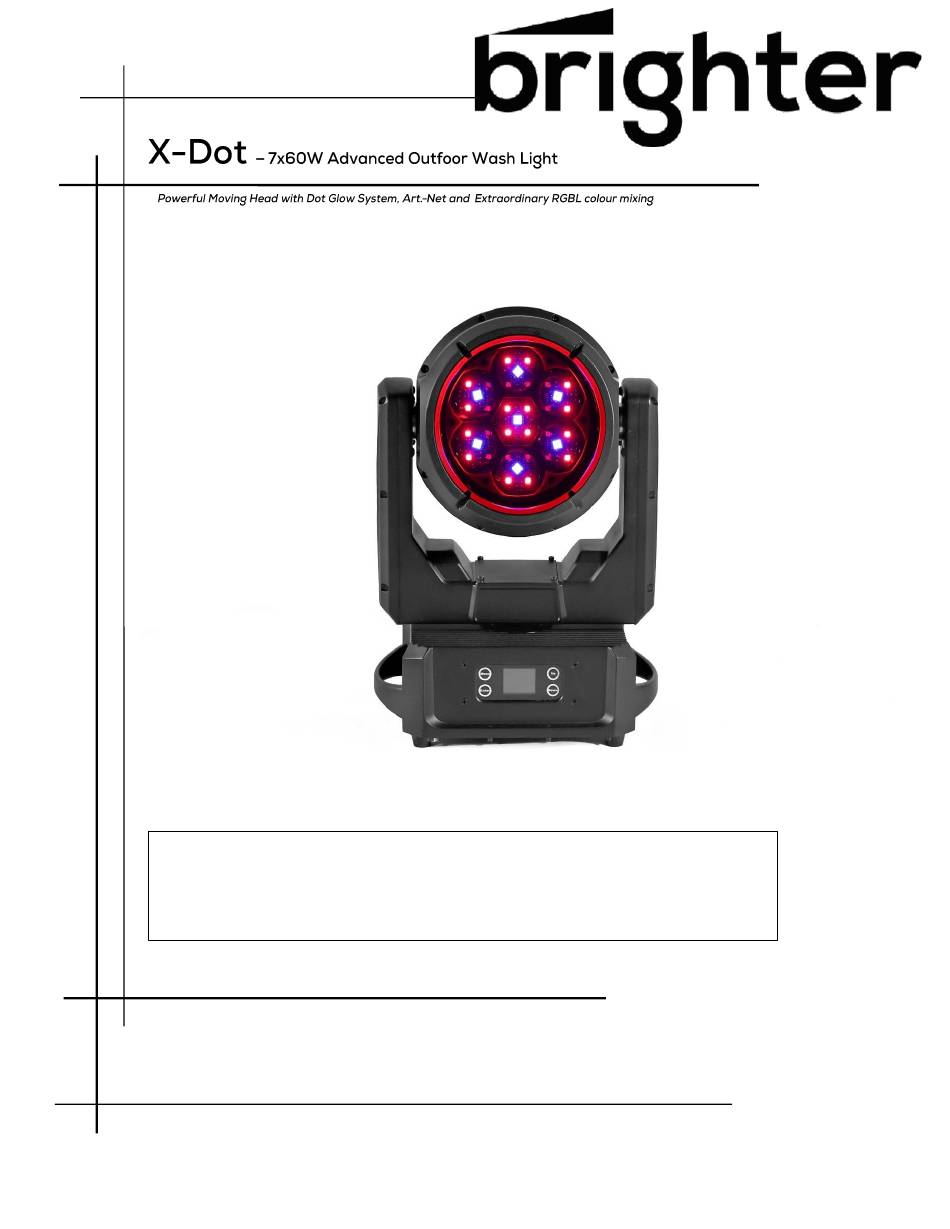

Brighter X-Dot User Manual

7x60w advanced outfoor wash light
Hide thumbs Also See for X-Dot:
Table of Contents

Advertisement

Quick Links

Download this manual
This product
manual
contains
installation
and
use of this projector.
carefully
and
keep
this manual
User manual
Please read the instructions carefully before use
important
information
about
Please
read
and
follow
in a safe
place
for future
1
the safe
these
instructio
ns
reference.

Advertisement

Table of Contents
loading

Related Manuals for Brighter X-Dot

Summary of Contents for Brighter X-Dot

  • Page 1 This product manual contains important information about the safe installation use of this projector. Please read follow these instructio carefully keep this manual in a safe place for future reference. User manual Please read the instructions carefully before use...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS This fixture is a sophisticated piece of electronic equipment.To guarantee a smooth operation,it is important to follow all instructions and guidelines in this manual. Professional is not responsible for injuries and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts included with this fixture should be used for installation.Any modifications to the fixture and/ or the included mounting hardware will void the...
  • Page 3 SAFETY PRECAUTIONS • DO NOT TOUCH the fixture housing during operation.Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before servicing. • DO NOT shake fixture, and avoid brute force when installing and/or operating fixture.

  • Page 4: Maintenance

    MAINTENANCE GUIDELINES DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! CLEANING Frequent cleaning is recommended to ensure proper function,optimized light output, and an extended life.The frequency of cleaning depends on the environment in which the fixture operates: damp,smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.Periodically clean the external lens surface with a soft cloth to avoid dirt/debris accumulation.NEVER use alcohol, solvents, or ammonia-based cleaners .
  • Page 5 OVERVIEW 1. Lens 2. System Menu LCD Display 3. DMX Input 4. Power Input 5. DMX Output 6. Power Output 7. Fuse 8. RJ45 Input 9. Value 10. RJ45 Output - 5 -...

  • Page 6: Electrical Connections

    INSTALLATION GUIDELINES FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1 .5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO SURFACES/OBJECTS IS 3.3 FEET (1 METER). MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET(0 .5 METER).

  • Page 7: Clamp Installation

    INSTALLATION GUIDELINES OMEGA BRACKET INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture.Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼ turn clockwise . Always check to make sure that each fastener is completely locked. Omega brackets can be installed into the underside of the fixture’s base as illustrated below.
  • Page 8 INSTALLATION GUIDELINES POWER AND DATA CABLES TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL CABLES MUST BE RUN TOWARDS THE GROUND IN ORDER TO PREVENT WATER ACCUMULATION AROUNDTHE CONNECTIONS. RJ4 5 DATA CABLES THE INCLUDED RJ4 5 DATA CABLE IS FOR FIXTURE TO FIXTURE INTERCONNECTIONS ONLY! THE RJ4 5 CABLE CONNECTORS MAY NOT BE COMPATIBLE WITH OTHER RJ4 5 OR ETHERNET TYPE CONNECTORS.

  • Page 9: Power And Data Connections

    INSTALLATION GUIDELINES POWER AND DATA CONNECTIONS ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A DIELECTRIC GREASE ( AVAILABLE AT MOST ELECTRICAL SUPPLIERS) IN ORDER TO PREVENT WATER CORROSION AND/ OR ELECTRICAL SHORT CIRCUIT. TO MAINTAIN IP6 5 RATING INTEGRITY AND PREVENT WATER FROM ENTERING THE FIXTURE, SEAL ALL UNUSED CONNECTION RUBBER CAPS.

  • Page 10: System Menu

    SYSTEM MENU Main Menu Sub Menu Option/Value Option/Value Address 028CH 051CH Channel 107CH 128CH Artnet Control Mode DMX+Artnet sACN DMX+sACN Linear Square Dimmer Mode I-Square S-Shape Slow Dimmer Speed Fast 400HZ 1200HZ 2000HZ 4000HZ LED Frequency 6000HZ 8000HZ Setting 16000HZ 24000HZ 000-255 White Balance...
  • Page 11 Invert Screen AUTO Signal Keep NO/YES Screen Lock NO/YES Load Default NO.YES 002.000.000.001 Internet 255.000.000.000 Network Net(0~127) 000~127 Universe Sub_Universe 000~127 000~255 Tile 000~255 Zoom 000~255 Rotation 000~255 000~255 Green 000~255 Blue 000~255 Manual Lime 000~255 Spark Red 000~255 Spark Green 000~255 Spark Blue 000~255...
  • Page 12 LIGHTING CONSOLE PATCHING GUIDELINES The product is a versatile luminaire which combines two fixtures into one housing, allowing it to produce multiple unique lighting effects typically not found in a single lighting fixture.The DMX layout is designed to offer a variety of options for controlling each fixture efficiently. The main fixture contains 7x 60W RGBL LEDs, while the Aura effects contains 28x0.5W RGB LEDs.For ease of use the DMX layout is arranged to allow lighting consoles to separate the fixture into multiple segments or parts.It is especially important to arrange the fixture in such segments...

  • Page 13: Dmx Chart

    DMX CHART 28CH Mode(DMX,ArtNet,sACN) Channel Value Function Description 0°- 540° 0-255 Pan Movement Fine Pan Movement 0-255 16 bit adjustable positioning 0°- 205° 0-255 Tilt Movement Fine Tile Movement 0-255 16 bit adjustable positioning 0-255 P/T motors speed fast to slow 3.15°- 45°...
  • Page 14 high Strobe Function of Aura 0-255 LEDs Shutter closed 10-55 Synchronous strobe From slow to fast 13CH 56-105 Pulse strobe From slow to fast 106-155 Random strobe From slow to fast From slow to fast 156-205 Fade Strobe1 Brightness from high to low From slow to fast Brightness from low to 206-255 Fade Strobe1...
  • Page 15 Aura LEDs built-in 0-255 Program1-program16 program The color-changes of the build-in effects of 6-20 Program 1 Aura LEDs is controlled by its color CH 21-35 Program 2 36-50 Program 3 51-65 Program 4 66-80 Program 5 81-95 Program 6 96-110 Program 7 24CH 111-125...
  • Page 16 126-130 Just Blue R=000,G=194,B=130,L=000 131-135 Dark yellow green R=041,G=219,B=000,L=000 136-140 Spring Yellow R=245,G=202,B=000,L=000 141-145 Light Amber R=237,G=163,B=000,L=000 146-150 Straw Tint R=230,G=160,B=000,L=069 151-155 Deep Amber R=255,G=166,B=000,L=000 156-160 Orange R=255,G=122,B=000,L=000 161-165 Light Rose R=255,G=141,B=031,L=000 166-170 Middle Rose R=217,G=130,B=028,L=000 171-175 Dark Pink R=255,G=109,B=033,L=000 176-180 Magenta R=255,G=020,B=015,L=000...
  • Page 17 51CH Mode（Support Dmx /Artnet/sACN. when u use DMX+Artnet mode, the 1- 23CH are controlled by DMX protocol） Channel Value Function Description 0°- 540° 0-255 Pan Movement Fine Pan Movement 0-255 16 bit adjustable positioning 0°- 205° 0-255 Tilt Movement Fine Tile Movement 0-255 16 bit adjustable positioning...
  • Page 18 high 13CH 0-255 Aura LED- Red Linear 0-100% 14CH 0-255 Aura LED-Green Linear 0-100% 15CH 0-255 Aura LED-Blue Linear 0-100% Aura LEDs built-in 0-255 Program1-program16 program The color-changes of the build-in effects 6-20 Program 1 of Aura LEDs is controlled by its color CH 21-35 Program 2 36-50...
  • Page 19 51-55 Yellow R=255,G=255,B=000,L=000 56-60 Magenta R=255,G=000,B=255,L=000 61-65 Medium Yellow R=156,G=126,B=000,L=000 66-70 Straw Tint R=152,G=115,B=009,L=000 71-75 Surprise Peach R=198,G=114,B=009,L=000 76-80 Fire R=255,G=056,B=000,L=000 81-85 Medium Amber R=255,G=135,B=000,L=000 86-90 Gold Amber R=255,G=100,B=000,L=000 91-95 Dark Amber R=255,G=065,B=000,L=000 96-100 Sunrise Red R=255,G=083,B=002,L=000 101-105 Light Pink R=255,G=112,B=000,L=141 106-110 Medium Pink...
  • Page 20 18-34 8000K R=255,G=182,B=110,L=255 35-51 7500K R=255,G=144,B=089,L=255 52-68 6500K R=255,G=129,B=081,L=255 69-85 6000K R=255,G=121,B=073,L=255 86-102 5600K R=255,G=106,B=066,L=255 03-119 5000K R=255,G=090,B=055,L=255 120-136 4500K R=255,G=071,B=043,L=255 137-153 4000K R=255,G=055,B=034,L=255 154-170 3500K R=255,G=029,B=024,L=255 171-187 3200K R=255,G=011,B=019,L=255 188-204 3000K R=255,G=004,B=016,L=255 205-221 2700K R=255,G=000,B=009,L=203 222-238 2500K R=255,G=000,B=004,L=172 239-255 2000K R=255,G=000,B=000,L=105 23CH...
  • Page 21 0-255 P/T motors speed fast to slow 3.15°- 45° 0-255 Zoom (From narrow to wide ) 0-255 Fine Zoom positioning 0-255 Lens-Rotation 6-62 Lens-Rotation 1 From left to right position (0-360°) 63-127 Lens-Rotation 2 From right to left position (0-360°) From left to right position (Infinite-Rotation)From 128-192 Lens-Rotation 3...
  • Page 22 141-155 Program 10 156-170 Program 11 171-185 Program 12 186-200 Program 13 201-215 Program 14 216-230 Program 15 231-245 Program 16 Auto-running built-in 246-255 Program 1-Program 16 Auto-running programs 18CH 0-255 60W Program Speed From Slow to fast 0-255 Marco Color 6-10 R=000,G=255,B=255,L=000 11-15...
  • Page 23 161-165 Steel Blue R=206,G=255,B=000,L=000 166-170 Light Blue R=084,G=255,B=013,L=000 171-175 Dark Blue R=227,G=041,B=056,L=000 176-180 Leaf Green R=255,G=058,B=000,L=000 181-185 Dark Green R=255,G=197,B=061,L=000 186-190 Mauve R=077,G=255,B=000,L=000 191-195 Deep Golden Amber R=000,G=255,B=087,L=000 196-200 Pale Lavender R=255,G=143,B=013,L=000 201-205 Primary Green R=253,G=171,B=026,L=000 206-210 Bright Blue R=222,G=084,B=000,L=000 211-215 Apricot R=255,G=046,B=002,L=000...
  • Page 24 26CH 0-255 LED8 Blue Dark to light ..........105CH 0-255 LED35 Red Dark to light 106CH 0-255 LED35 Green Dark to light 107CH 0-255 LED35 Blue Dark to light 128CH Mode（Support Dmx /Artnet/sACN.
  • Page 25 106-155 Random strobe From slow to fast 156-205 Fade Strobe1 From slow to fast Brightness from high to low 206-255 Fade Strobe2 From slow to fast Brightness from low to high 12CH 0-255 60W Dimmer From Dark to light 13CH 0-255 60W Fine Dimmer Strobe function of RGBL...
  • Page 26 186-190 Steel Blue R=206,G=255,B=056,L=000 191-195 Light Blue R=074,G=255,B=082,L=000 196-200 Dark Blue R=000,G=186,B=255,L=000 201-205 Leaf Green R=206,G=255,B=000,L=000 206-210 Dark Green R=084,G=255,B=013,L=000 211-215 Mauve R=227,G=041,B=056,L=000 216-220 Deep Golden Amber R=255,G=058,B=000,L=000 221-225 Pale Lavender R=255,G=197,B=061,L=000 226-230 Primary Green R=077,G=255,B=000,L=000 231-235 Bright Blue R=000,G=255,B=087,L=000 235-240 Apricot R=255,G=143,B=013,L=000...

  • Page 27: Specifications

    45CH 0-255 LED8 Red Dark to light 46CH 0-255 LED8 Green Dark to light 47CH 0-255 LED8 Blue Dark to light ..........126CH 0-255 LED35 Red Dark to light 127CH 0-255 LED35 Green...

  • Page 28: Dimensional Drawings

    ELECTRICAL / THERMAL: AC 100-240V 50/60Hz 700W Max Power Consumption BTU/hr (+/- 10%) 2387 APPROVALS/RATINGS: CE | IP65 DIMENSIONAL DRAWINGS - 28 -...
  • Page 29 - 29 -...
