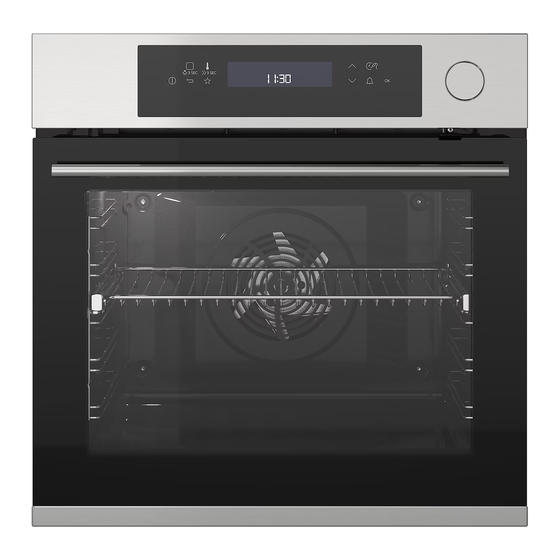

IKEA KULINARISK Manual

Hide thumbs Also See for KULINARISK:
Table of Contents

Advertisement

Quick Links

Download this manual
AU
KULINARISK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KULINARISK and is the answer not in the manual?

Questions and answers

Related Manuals for IKEA KULINARISK

Summary of Contents for IKEA KULINARISK

  • Page 1 KULINARISK...
  • Page 2 ENGLISH Please refer to the chapter IKEA GUARANTEE for contact details of the after sales customer service centre.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Before first use Energy efficiency Daily use Environmental concerns Clock functions IKEA guarantee Automatic programmes Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage.
  • Page 5 ENGLISH Keep children and pets away from the appliance when it • operates or when it cools down. Accessible parts may become hot during use. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user maintenance •...

  • Page 6: Conditions Of Use

    ENGLISH Use only the food sensor (core temperature sensor) • recommended for this appliance. Conditions of Use This appliance is intended to be used in • By clients in serviced apartments, holiday household and similar applications such as: apartments and other residential type environments.
  • Page 7 ENGLISH • Make sure not to cause damage to the • Open the appliance door carefully. The mains plug and to the mains cable. use of ingredients with alcohol can cause Should the mains cable need to be a mixture of alcohol and air. replaced, this must be carried out by our •...

  • Page 8: Installation

    ENGLISH Steam Cooking separately: These lamps are intended to withstand extreme physical conditions in Warning! Risk of burns and household appliances, such as damage to the appliance. temperature, vibration, humidity, or are intended to signal information about the • Released Steam can cause burns: operational status of the appliance.

  • Page 9: Product Description

    ENGLISH The manufacturer is not Total power (W) Section of the cable responsible if you do not follow (mm²) the safety precautions from the Safety chapters. maximum 1380 3 x 0.75 This oven is supplied without a main plug maximum 2300 3 x 1 and a main cable.

  • Page 10: Control Panel

    ENGLISH Control panel Electronic programmer 9 10 Symbol Function Comment ON / OFF To turn on and off the oven. Heating Functions Press once to enter to the Heating Functions Menu. or Assisted Cook‐ Press again to switch to Assisted Cooking. To turn on or off the light, press for 3 seconds.
  • Page 11 ENGLISH Symbol Function Comment To confirm the selection or setting. Display A. Heating function B. Time of day C. Heat-up indicator D. Temperature E. Duration time or end time of a function Other indicators of the display: Symbol Function Minute Minder The function works.

  • Page 12: Before First Use

    ENGLISH Before first use Using the Mechanical child lock Warning! Refer to Safety chapters. The oven has the child lock installed. It is on the right side of the oven, below the control Initial Cleaning panel. Remove all accessories and removable shelf To open the oven door with the child lock: supports from the oven.
  • Page 13 ENGLISH Submenu for: Basic Settings At each point you can go back to Symbol / Menu Description the main menu with . item The menus in overview Sets the current time on the clock. Set Time of Day Main menu Symbol / Menu Application When ON, the display...
  • Page 14 ENGLISH Symbol / Menu Description Heating Application item function Activates and deacti‐ To prepare tender, succulent vates the alarm tones. roasts. Alarm/Error Tones Slow Cook‐ For retailer use only. To bake cakes with crispy bot‐ DEMO mode tom and to preserve food. Shows the software Bottom version and configura‐...
  • Page 15 ENGLISH Heating Application Heating function Application function To make vegetable pre‐ To grill flat food in large quan‐ serves (e.g. pickles). tities and to toast bread. Preserving Fast Grill‐ To dry sliced fruit, veg‐ etables and mush‐ To roast larger meat joints or rooms.
  • Page 16 ENGLISH The water supply is sufficient for If you put too much water into approximately 55 - 60 minutes. the tank, the safety outlet moves 3. Push the water drawer to its initial the excess water to the bottom of position.

  • Page 17: Clock Functions

    ENGLISH Heat-up indicator To turn on the function, hold for 3 seconds. The heat-up indicator alternates. When you turn on a heating function, the bar on the display comes on. The bar shows This function is not available for some oven that the temperature increases.

  • Page 18: Automatic Programmes

    2. Select the menu: Recipes. Press for this oven on the website confirm. www.ikea.com. To find the proper 3. Select the category and dish. Press Recipe Book check the article confirm. number on the rating plate on the 4.
  • Page 19 ENGLISH Small indentation at the top increase safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf. Core temperature sensor There are two temperatures to be set: the oven temperature and the core temperature. The core temperature sensor measures the core temperature of the meat.

  • Page 20: Additional Functions

    ENGLISH The oven calculates an approximate end With telescopic runners you can put in and time. The end time is different for the remove wire shelves and trays easily. different quantities of the food, the set oven Caution! Do not clean the temperatures (minimum 120 °C) and the telescopic runners in the operating modes.
  • Page 21 ENGLISH 2. Select the menu: Favourites. 6. Press to confirm. 3. Press to confirm. Press any symbol (except for ) to start the 4. Select your favourite programme name. function: Set + Go. The set heating function 5. Press to confirm. starts.

  • Page 22: Hints And Tips

    ENGLISH Cooling fan Safety thermostat When the oven operates, the cooling fan Incorrect operation of the oven or defective turns on automatically to keep the surfaces components can cause dangerous of the oven cool. If you turn off the oven, the overheating.
  • Page 23 ENGLISH Food Accessories Temperature Shelf posi‐ Time (min) (°C) tion Swiss roll baking tray or dripping 25 - 35 Brownie baking tray or dripping 25 - 30 Soufflè, 6 pieces ceramic ramekins on wire 25 - 30 shelf Sponge flan flan base tin on wire shelf 15 - 25 base...
  • Page 24 ENGLISH Food Accessories Temperature Shelf posi‐ Time (min) (°C) tion Vegetarian ome‐ pizza pan on wire shelf 25 - 30 lette Vegetables, baking tray or dripping 25 - 30 mediterrean 0.7 Moist Fan Baking - recommended accessories Use the dark and non-reflective tins and containers.
  • Page 25 ENGLISH Food Function Accesso‐ Shelf Temper‐ Time (min) Comments ries posi‐ ature tion (°C) Small Convention‐ Baking 20 - 30 Put 20 small cakes cake al Cooking tray per one baking tray. Small True Fan Baking 150 - 20 - 35 Put 20 small cakes cake Cooking...

  • Page 26: Care And Cleaning

    For additional cooking tables please refer to cavity. the Recipe Book which you can find on the website www.ikea.com. To find the proper Care and cleaning If you have nonstick accessories, do not Warning! Refer to Safety clean them using aggressive agents, sharp- chapters.
  • Page 27 ENGLISH Cleaning the door gasket Install the removed accessories in the opposite sequence. Regularly do a check of the door gasket. The The retaining pins on the door gasket is around the frame of the oven cavity. Do not use the oven if the door gasket telescopic runners must point to is damaged.
  • Page 28 ENGLISH Calcium deposit Water hardness Water classifica‐ Run decalcifica‐ tion tion every (French degrees) (German de‐ grees) 120 - 180 mg/l 12 - 18 8 - 10 Hard or calcare‐ 40 cycles - 1.5 months over 180 mg/l over 18 over 10 Very hard 30 cycles - 1...
  • Page 29 ENGLISH 6. Pull the door trim to the front to remove 7. Hold the door glass panels by their top edge and carefully pull them out one by one. Start from the top panel. Make sure the glass slides out of the supports completely.

  • Page 30: Troubleshooting

    ENGLISH 5. Replace the oven light bulb with a 40 W, 6. Install the glass cover. 220 - 240 V (50 Hz), 350 °C heat resistant oven light bulb (connection type: G9). Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Remedy...

  • Page 31: Technical Data

    ENGLISH Problem Possible cause Remedy The display shows F111. The plug of the core temper‐ Put the plug of the core tem‐ ature sensor is not correctly perature sensor as far as installed into the socket. possible into the socket. The display shows an error There is an electrical fault.

  • Page 32: Energy Efficiency

    50 - 60 Hz Number of functions Energy efficiency Product Information and Product Information Sheet* Supplier's name IKEA Model identification KULINARISK 504.210.84 Energy Efficiency Index 81.2 Energy efficiency class Energy consumption with a standard load, convention‐ 0.93 kWh/cycle al mode Energy consumption with a standard load, fan-forced 0.69 kWh/cycle...

  • Page 33: Environmental Concerns

    How long is the IKEA guarantee valid? Cebas Pty Ltd, ABN 15 009 156 003 (Both Trading as IKEA). The original sales receipt is This guarantee is valid for 5 years from the required as proof of purchase. If service...
  • Page 34 IKEA Pty Ltd Australia. IKEA Service Office What will IKEA do to correct the problem? L1 Clock Tower, 630 Princes Highway Tempe, NSW 2044 IKEA appointed service provider will examine the product and decide, at its sole discretion, Contact - IKEA Customer Service at if it is covered under this guarantee.
  • Page 35 IKEA is not liable for any Please describe the problem that you are damage that may occur during transport.
  • Page 36 Instructions and/or the User Manual section of this booklet before contacting us. How to reach us if you need our service The IKEA after sales customer service centre will assist you on the phone with basic trouble shooting for your appliance at the time of service call request.
  • Page 40 21552 © Inter IKEA Systems B.V. 2021 AA-2063574-4...
