Summary of Contents for IKEA KULINARISK

  • Page 1 KULINARISK...
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Product description Technical data Control panel Environmental aspects General tips IKEA guarantee Safety information For your own safety and correct operation of the appliance, please read this manual carefully before installation and op- eration. Always keep these instructions together with the appliance, even if it is sold or transferred to third parties.
  • Page 5 ENGLISH cording to the wiring system regulations. • For Class I appliances, check that the domestic power supply has a suitable earthing connection. • Connect the hood to the flue with a pipe with a minimum dia- meter of 120 mm. The fume path must be as short as possible. •...
  • Page 6 ENGLISH WARNING: failure to install the screws or fixing devices in ac- cordance with these instructions may result in electrical haz- ards. • Connect the hood to the power supply by means of a bipolar switch with a distance between the contacts of at least 3 mm. •...
  • Page 7 ENGLISH the safe operation of appliances which burn gas or other fuels (including those in other rooms) due to the backflow of com- bustion gases. These gases can cause carbon monoxide pois- oning. After installing a kitchen extractor hood or any other cooking fume extractor, make sure that the gas appliances are tested by a certified technician to guarantee that there is no backflow of combustion gases.

  • Page 8: General Information

    ENGLISH General information Air recirculation version (see symbol in • Switch off or unplug the appliance from the the installation instructions) mains supply before carrying out any main- The air is filtered through one or more tenance work. carbon filters, and then resent into the room. •...

  • Page 9: Product Description

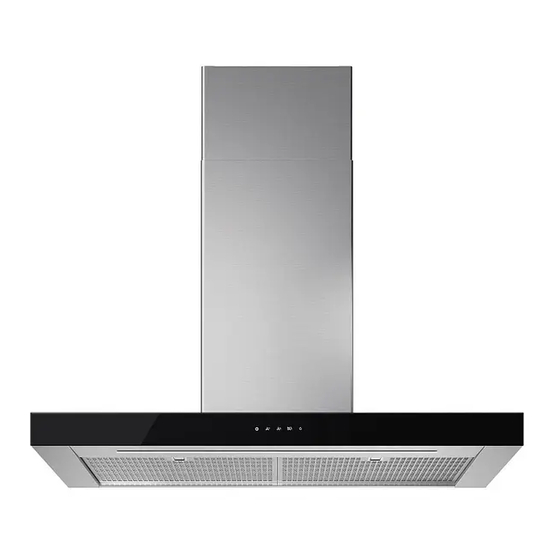

    ENGLISH Product description Upper chimney Lower chimney Hood body LED Lighting Grease filter Control panel Control panel BUTTON FUNCTION Turns the motor on/off at speed one. Attention: the product is with the filter alarm disabled. Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor+Lights), to turn the Speed grease filter alarm on.

  • Page 10: General Tips

    ENGLISH General tips • Operate the hood at minimum speed at the cessary to maintain good odour reduction start of cooking and keep it running for a efficiency. few minutes after cooking is finished. • Clean the grease filter or filters when ne- •...

  • Page 11: What To Do If

    ENGLISH What to do if... If there is a fault, first try to find a solution In the event of improper use of the yourself. If you are unable to resolve the appliance or installation carried out without problem yourself, contact an authorised respecting the assembly instructions, it may service centre.

  • Page 12: Technical Data

    ENGLISH Technical data Unit Value Wall mounted hood Type of product Width Depth Dimensions Min./max. output height 1010 Min./max. recirculation height m3/h Airflow max* - Exhaust Noise max* - Exhaust m3/h Airflow max* - Recirculating Noise max* - Recirculating Total power LED BAR Type 1 x 6W...

  • Page 13: Environmental Aspects

    Victorian customers please contact: or at Cebas Pty Ltd, ABN 15 009 156 003 (Both IKEA Pty Ltd Trading as IKEA). The original sales receipt is IKEA Pty Ltd required as proof of purchase. If service work IKEA Service Office...
  • Page 14 What will IKEA do to correct the problem? • Repairs caused by installation which is IKEA appointed service provider will examine faulty or not according to specification.
  • Page 15 Note center for IKEA appliances to: that the receipt reports also the IKEA article Make a service request under this guar- name and number (8 digit code) for each of antee;...
  • Page 16 Country name in local languages Telephone number Opening times Victoria: (03) 8523 2154 New South Wales: (02) 5020 6641 Queensland: (07) 3380 6800 Australia IKEA Perth: (08) 9201 4532 IKEA Adelaide: (08) 8154 4532 Österreich 13602771461 Mo-Fr: 8 - 20 België / Belgique 26200311 Ma-Vr: 8 - 20 / Lun-Ven: 8 - 20 България...
  • Page 20 23199 AA-2027178-8 Inter IKEA Systems B.V. 2013...
