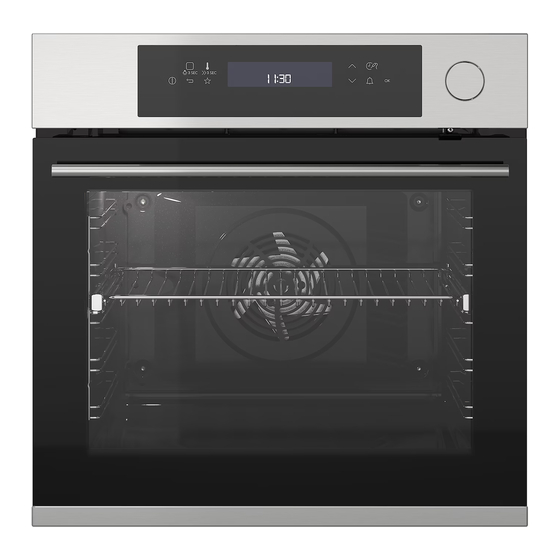

IKEA KULINARISK Manual

Hide thumbs Also See for KULINARISK:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Recipe Book, Manual
AU
KULINARISK

Advertisement

Table of Contents
loading

Related Manuals for IKEA KULINARISK

Summary of Contents for IKEA KULINARISK

  • Page 1 KULINARISK...
  • Page 2 ENGLISH Please refer to the chapter IKEA GUARANTEE for contact details of the after sales customer service centre.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Before first use Energy efficiency Daily use Environmental concerns Clock functions IKEA guarantee Automatic programmes Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages.

  • Page 5: General Safety

    ENGLISH Keep children and pets away from the appliance when it • operates or when it cools down. Accessible parts are hot. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user maintenance of •...
  • Page 6 ENGLISH Do not heat liquids and other foods in sealed containers. • They are liable to explode. Metallic containers for food and beverages are not allowed • during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

  • Page 7: Conditions Of Use

    ENGLISH Conditions of Use • By clients in serviced apartments, holiday This appliance is intended to be used in apartments and other residential type household and similar applications such as: environments. • Farm houses Safety instructions Should the mains cable need to be Installation replaced, this must be carried out by our Warning! Only a qualified...
  • Page 8 ENGLISH • Do not let the appliance stay unattended • If the appliance is installed behind a during operation. furniture panel (e.g. a door) make sure • Deactivate the appliance after each use. the door is never closed when the •...

  • Page 9: Installation

    ENGLISH • Do not place hot glassware on a wet or • Before replacing the lamp, disconnect cool surface, directly on countertop or the appliance from the power supply. metal surface, or in sink; or handle hot • Only use lamps with the same glassware with wet cloth.

  • Page 10: Product Description

    ENGLISH This oven is only supplied with a main Total power (W) Section of the cable cable. (mm²) Cable maximum 1380 3 x 0.75 Cable types applicable for installation or maximum 2300 3 x 1 replacement: maximum 3680 3 x 1.5 H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F The earth cord (green / yellow cable) must...

  • Page 11: Control Panel

    ENGLISH Control panel Electronic programmer 9 10 Symbol Function Comment ON / OFF To activate and deactivate the appliance. Heating Functions Press once to enter to the Heating Functions Menu. or Assisted Cook- Press again to switch to Assisted Cooking. To acti- vate or deactivate the light, touch for 3 sec- onds.
  • Page 12 ENGLISH Symbol Function Comment Minute Minder To set the function: Minute Minder. OK / Microwave To confirm the selection or settings. To activate the Quick Start Microwave function. You can use it when the ap- pliance is deactivated. Display A. Heating function or Microwave function B.

  • Page 13: Before First Use

    ENGLISH Before first use 4. Let the oven operate for 15 minutes. Warning! Refer to Safety Accessories can become hotter than usual. chapters. The oven can emit an odour and smoke during preheating. Make sure that the Initial Cleaning airflow in the room is sufficient. Remove all accessories and removable shelf supports from the oven.
  • Page 14 ENGLISH 2. Press to select the menu option. Symbol / Menu Description 3. Press to move to the submenu or item accept the setting. To set a function and At each point you can go back to activate it later with a Set + Go the main menu with .
  • Page 15 ENGLISH Symbol / Menu Description Heating function Application item To grill flat food in Resets all settings to large quantities and to factory settings. toast bread. Fast Grilling Factory Settings To roast larger meat Heating Functions joints or poultry with bones on one shelf po- Turbo Grilling Heating function...
  • Page 16 ENGLISH Setting a heating function Heating function Application 1. Remove microwave bottom glass plate. To keep food warm. 2. Turn on the oven. 3. Select the menu: Heating Functions. Keep Warm 4. Press to confirm. 5. Select a heating function. To defrost food (vege- 6.
  • Page 17 ENGLISH 7. When the set time ends, a signal sounds You can change the microwave for 2 minutes. The Microwave function power (refer to "Setting the turns off automatically. Press any symbol Microwave function"). to stop the signal. 3. Press to set the time for the function: To turns off the Microwave Duration.

  • Page 18: Clock Functions

    ENGLISH Clock functions Clock functions table Setting the clock functions Before you use the functions: Clock function Application Duration, End Time, you must set To set a countdown Minute a heating function and (max. 2 h 30 min). This Minder temperature first.

  • Page 19: Automatic Programmes

    2. Select the menu: Assisted Cooking. Press automatic programmes specified for this oven on the website to confirm. www.ikea.com. To find the 3. Select the category and dish. Press proper Recipe Book check the to confirm. article number on the rating 4.

  • Page 20: Additional Functions

    ENGLISH Put the accessory on the bottom of the cavity. Put the food on the microwave bottom glass plate. Always use the microwave bottom glass plate when the microwave function is on. It is necessary for heating food or liquids. Warning! The microwave bottom glass plate can become hot when Wire shelf and baking tray together:...
  • Page 21 ENGLISH Saving a programme Function Lock 1. Turn on the oven. This function prevents an accidental change 2. Set a heating function or an automatic of the heating function. You can turn it on programme. only when the oven works. 3.

  • Page 22: Hints And Tips

    ENGLISH • Day brightness: Automatic Switch-off – when the oven is turned on. For safety reasons the oven turns off – if you touch a symbol during the automatically after some time if a heating night brightness (apart from ON / function works and you do not change any OFF), the display goes back to the settings.
  • Page 23 ENGLISH Pierce the yolk of fried egg before Microwave recommendations reheating it. Place the food on the microwave bottom Pierce food with skin or peel with a fork glass plate on the bottom of the cavity. several times before cooking. Turn or stir the food halfway through the Cut vegetables into similar-sized pieces.
  • Page 24 ENGLISH Cookware / Material Microwave function Microwave Combi function Defrosting Heating, Cooking Ceramic and earthenware without any quartz or metal components and glazes which contain metal Ceramic, porcelain and earthenware with unglazed bottom or with small holes, e.g. on handles Heat-resistant plastic up to 200 °C (please always check the plastic con- tainer specification before use)
  • Page 25 ENGLISH Food Power (Watts) Time (min) Standing time (min) Chicken (1 kg) 30 - 35 10 - 20 Chicken breast (0.15 kg) 5 - 9 10 - 15 Chicken legs (0.15 kg) 5 - 9 10 - 15 Whole Fish (0.5 kg) 10 - 15 5 - 10 Fish fillets (0.5 kg)
  • Page 26 ENGLISH Food Power (Watts) Time (min) Standing time (min) Milk (200 ml) 1000 1 - 1:30 Water (200 ml) 1000 1:30 - 2 Sauce (200 ml) 1 - 3 Soup (300 ml) 3 - 5 Melting Food Power (Watts) Time (min) Standing time (min) Chocolate / Chocolate 2 - 4...
  • Page 27 ENGLISH Food Function Power Tempera- Time Shelf Comments (Watts ture (°C) (min) posi- tion Potato Turbo Grilling + 180 - 190 40 - 45 Turn the container Gratin (1.1 around halfway through the cook- ing time. Standing time: 2 - 5min. Cake (0.7 Conventional 180 - 200 25 - 30...
  • Page 28 ENGLISH Cooking/Defrosting Possible cause Remedy results The food is overhea- The power was too high. Next time select a lower microwave ted at the edges but power and a longer time. is still not ready in the middle. Examples of cooking applications for power settings The data in the table is for guidance only.
  • Page 29 ENGLISH Information for test institutes Food Grilling time (min) Fast Grilling 1st side 2nd side Preheat the empty oven for 3 minutes. Toast 1 - 3 1 - 3 Grill with the maximum temperature setting. Microwave function Use the third shelf position. Food Grilling time (min) 1st side...

  • Page 30: Care And Cleaning

    For additional cooking tables please refer frame of the oven cavity. to the Recipe Book which you can find on the website www.ikea.com. To find the Care and cleaning Clean stubborn dirt with a special oven Warning! Refer to Safety cleaner.

  • Page 31: Troubleshooting

    ENGLISH Install the shelf supports in the opposite Cleaning the door gasket sequence. Regularly do a check of the door gasket. The door gasket is around the frame of the Replacing the lamp oven cavity. Do not use the oven if the door Put a cloth on the bottom of the interior of gasket is damaged.
  • Page 32 ENGLISH Problem Possible cause Remedy The oven does not heat up. The automatic switch-off is Refer to "Automatic switch- off". The oven does not heat up. The Child Lock is on. Refer to "Using the Child Lock". The oven does not heat up. The door is not closed cor- Fully close the door.

  • Page 33: Technical Data

    ENGLISH Technical data Technical data Width 480 mm Dimensions (internal) Height 217 mm Depth 411 mm Usable volumes 43 l Area of baking tray 1424 cm² Top heating element 1900 W Bottom heating element 1000 W Grill 1900 W Ring 1650 W Total rating 3000 W...

  • Page 34: Environmental Concerns

    This guarantee is valid for 5 years from the original date of purchase of Your appliance The principal address and contact details in at IKEA Pty Ltd, ABN 84006270757 or at Australia are: Cebas Pty Ltd, ABN 15 009 156 003 (Both For Queensland, New South Wales, and Trading as IKEA).
  • Page 35 • Cases where no fault could be found dur- Australia. ing a technician's visit. • Repairs not carried out by our appointed What will IKEA do to correct the problem? service providers and/or an authorized...
  • Page 36 To make a claim under the guarantee other address, IKEA is not liable for any contact IKEA after sales customer service damage that may occur during transport. center at the above address, the IKEA...
  • Page 37 It is your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.
  • Page 38 ENGLISH...
  • Page 39 ENGLISH...
  • Page 40 21552 © Inter IKEA Systems B.V. 2018 AA-2063491-1...
