Mezzanine Card - HP ProLiant xw2x220c Blade Workstation Maintenance And Service Manual

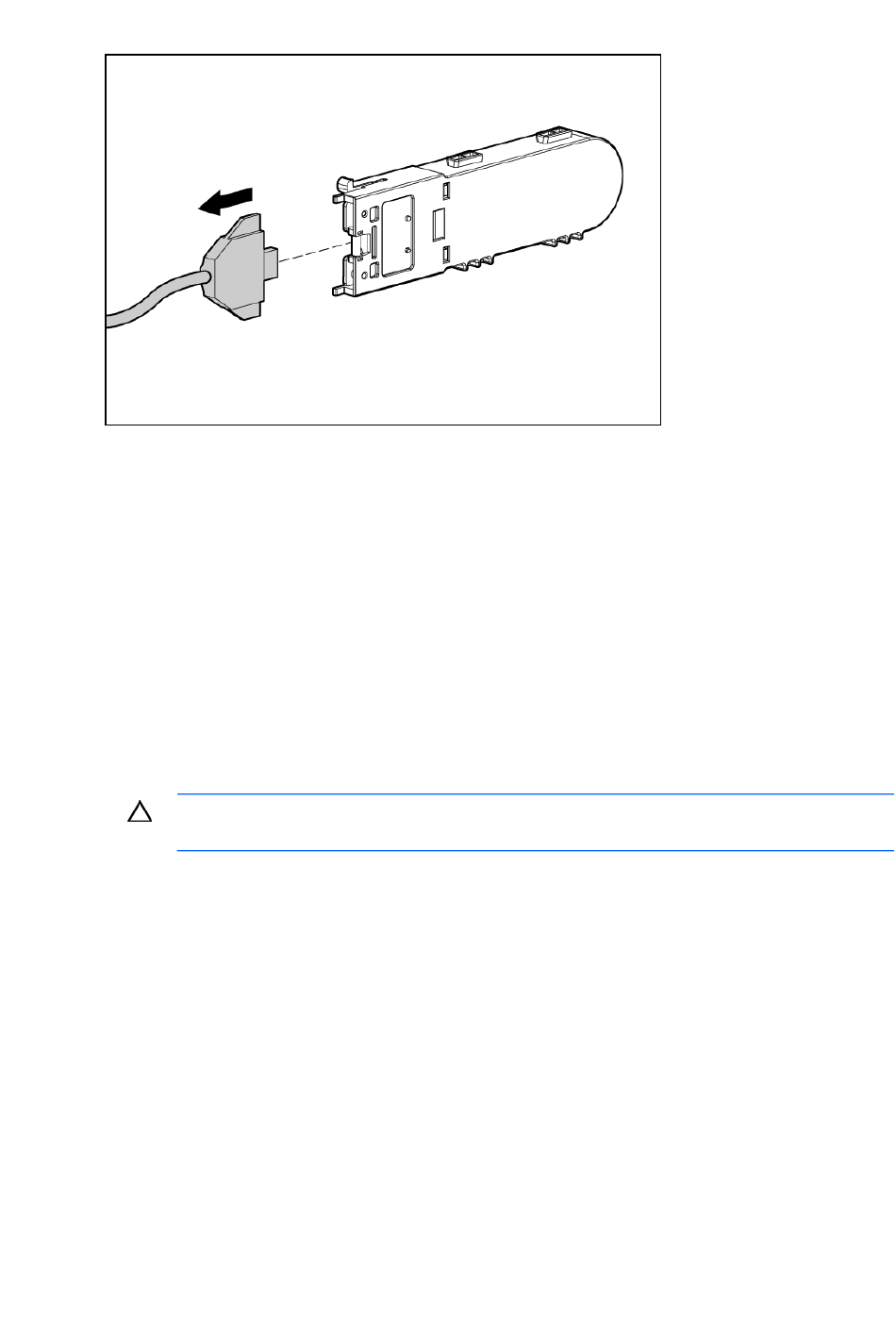

Disconnect the battery cables from the battery packs.
4.
Do one of the following:
5.
If a heatsink blank is installed on processor socket 2, remove the heatsink blank and then remove
o
the cables from between the processor socket and the chassis.
If a processor and heatsink are installed in processor socket 2, remove the workstation A system
o
board assembly
between the system board and heatsink.
Remove the cable from the cable clips.
6.
Remove the cable shield from the upper mezzanine card thumbscrew and the signal connector.
7.
Disconnect the cable from the upper cache module.
8.
Remove the upper mezzanine card
9.
Disconnect the remaining cable from the lower cache module.
10.
Remove the lower mezzanine card
11.
Remove the failed cable.
12.
CAUTION:
shield.
To replace the component, reverse the removal procedure.

Mezzanine card

To remove the component:
Power down the workstation blade (on page 11).
1.
Remove the workstation blade (on page 11).
2.
Access the internal workstation components (on page 12).
3.
Disconnect any cables connected to the mezzanine card.
4.
("Workstation A system
("Mezzanine
("Mezzanine
To prevent battery cable and system board damage, always install the cable
board" on page 25) and then remove the cables from
card" on page 24).
card" on page 24).
Removal and replacement procedures 24
