This function not allows for the user, change the mapping of the data exchanged via the fieldbus.
N.B. Do not use this configuration menu if you do not need
▲ ▲
▼ ▼
◆
◆
▲ ▼
◆
▼
▲
◆ ◆
▼
▲ ▲

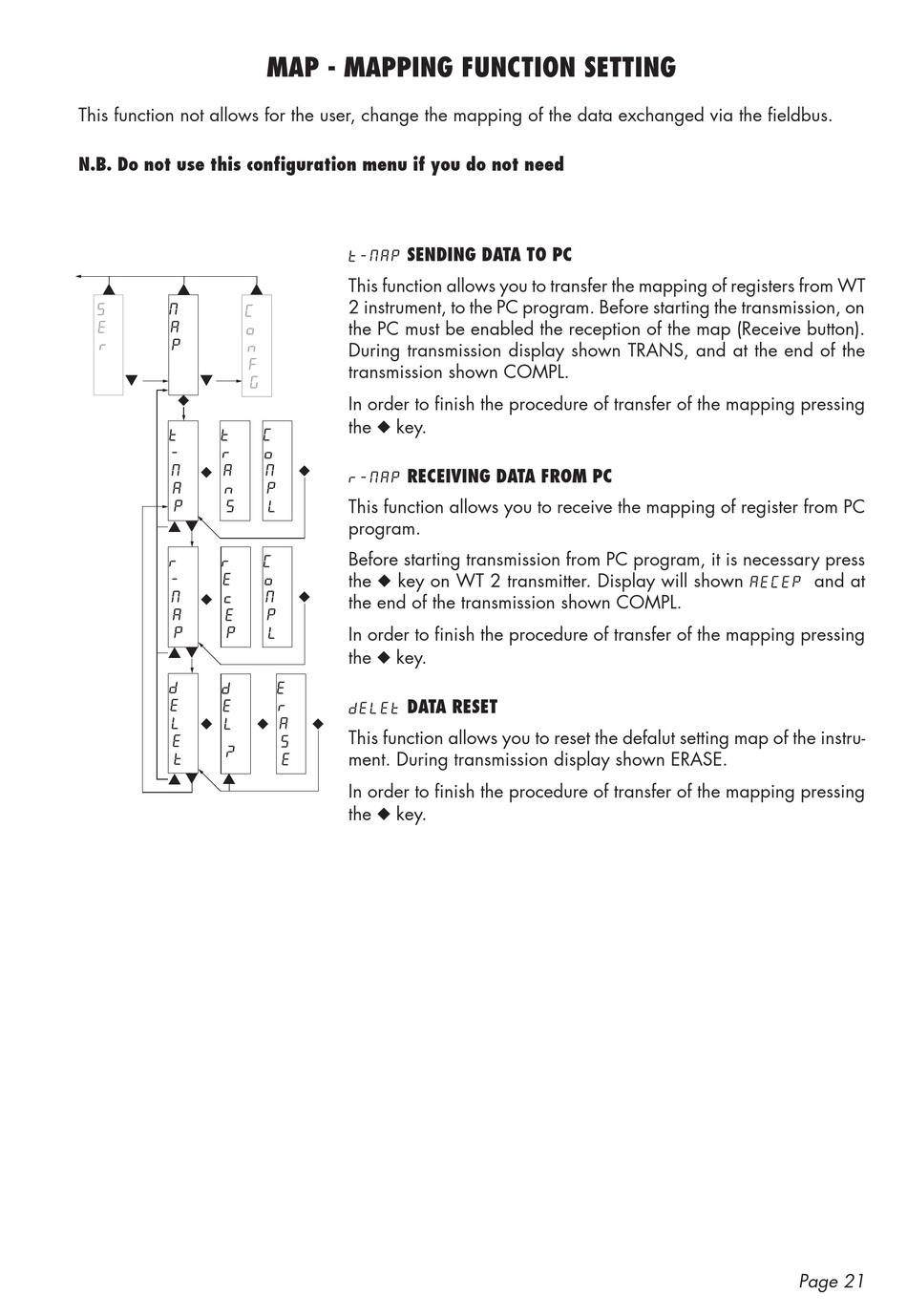

MAP - MAPPING FUNCTION SETTING
t-Nap SENDING DATA TO PC
This function allows you to transfer the mapping of registers from WT
▲
2 instrument, to the PC program. Before starting the transmission, on
the PC must be enabled the reception of the map (Receive button).
During transmission display shown TRANS, and at the end of the
transmission shown COMPL.
In order to finish the procedure of transfer of the mapping pressing
the u key.
◆
r-Nap RECEIVING DATA FROM PC
This function allows you to receive the mapping of register from PC
program.
Before starting transmission from PC program, it is necessary press
the u key on WT 2 transmitter. Display will shown RECEP and at
◆
the end of the transmission shown COMPL.
In order to finish the procedure of transfer of the mapping pressing
the u key.
dELEt DATA RESET
◆ ◆
This function allows you to reset the defalut setting map of the instru-
ment. During transmission display shown ERASE.
In order to finish the procedure of transfer of the mapping pressing
the u key.
Page 21
