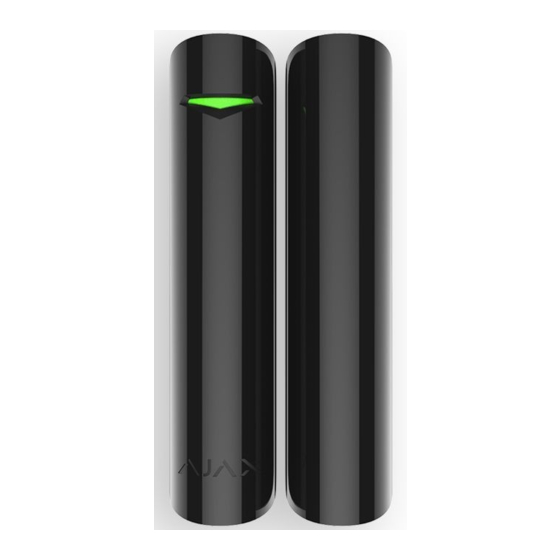

DoorProtect is a wireless door and window opening detector designed for indoor use. It can
operate up to 7 years from a pre-installed battery and capable to detect more than one million
openings. DoorProtect has a socket for connecting an external detector.
The functional element of DoorProtect is a sealed contact reed relay. It consists of ferromagnetic contacts
placed in a bulb that form a continuous circuit under the effect of a constant magnet.
DoorProtect operates within the Ajax security system, connecting via the protected
radio protocol. Communication range is up to 1,200 m in the line of sight. Using the
or
ocBridge Plus
integration modules, DoorProtect can be used as part of third party security
systems.
The detector is set up via
Ajax apps
for iOS, Android, macOS and Windows. The app noti es
user of all events through push noti cations, SMS and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring
station of a private security company.
Buy opening detector DoorProtect

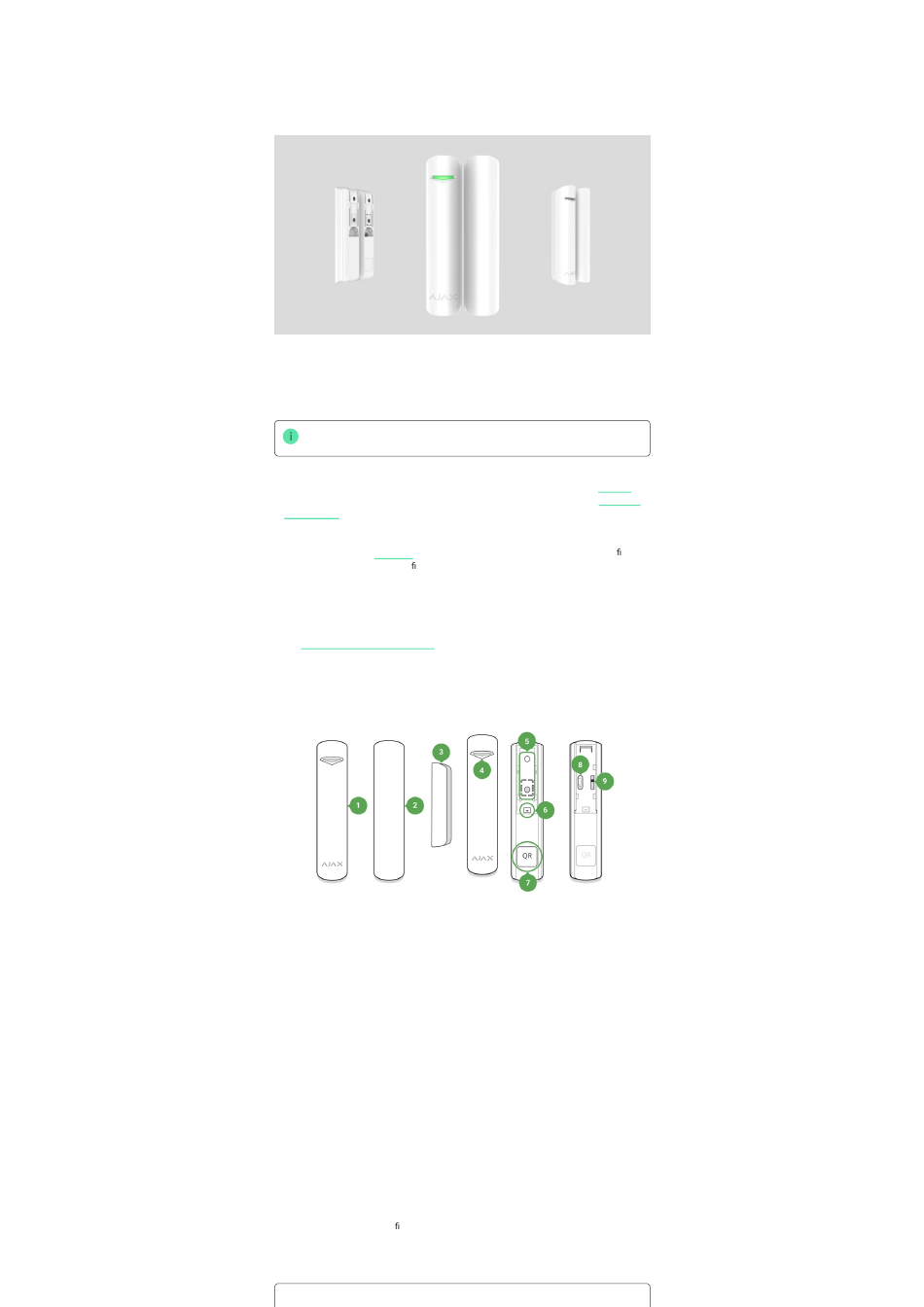

Functional Elements
1. DoorProtect
2. Big magnet (should be placed to the right of the detector)
3. Small magnet (should be placed to the right of the detector)
4. LED indicator
5. SmartBracket attachment panel (perforated part is required for actuating the tamper in case
of any attempt to dismantle the detector. Don't break it out!)
6. External detector connection socket
7. QR code
8. Device switch
9. Tamper button
Operating Principle
DoorProtect consists of two parts: the detector with a sealed contact reed relay, and the
constant magnet. Attach the detector to the door frame, while the magnet can be attached to
the moving wing or sliding part of the door. If the sealed contact reed relay is within the
coverage area of the magnetic eld, it closes the circuit, which means that the detector is
closed. The opening of the door pushes out the magnet from the sealed contact reed relay and
opening the circuit. In such a way, the detector recognizes the opening.
Attach the magnet to the RIGHT of the detector.
