Charli Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
x27
nut x27
x12
I
J
K
CL
CR
DL
runner
runner
runners
tracks
tracks
x3
x3
x3

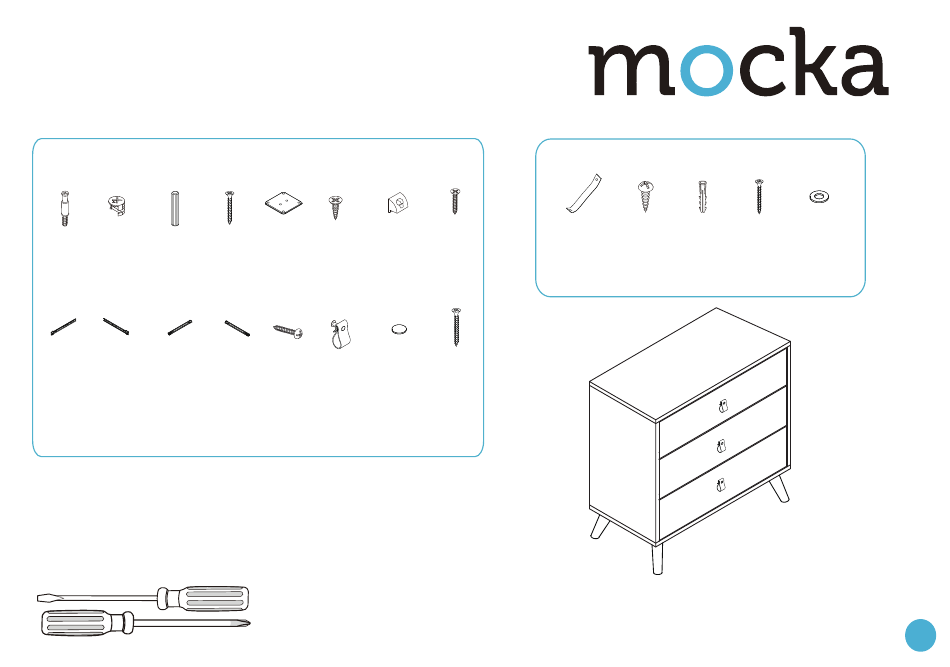

Hardware Supplied
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
mocka.co.nz | mocka.com.au
| PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
G
screw
bracket
small
wedge
x23
x4
screw
x8
x30
M
N
L
screw
handle
felt pad
DR
x16
x3
x4
runners
x3
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
safety
screw
strap x1
x8
P
O
long
screw
x4
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
V
W
X
Y
screw
wall
wall
x1
anchor
screw
x1
x1
Wall Strap
Z
washer
x2
1
Advertisement
Related Manuals for Mocka Charli Three Drawer
Summary of Contents for Mocka Charli Three Drawer
- Page 1 Charli Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. safety screw wall wall washer bolt locking dowel screw bracket small wedge screw strap x1 anchor screw screw nut x27 Wall Strap...
- Page 2 (F). Attach 3x CR runner tracks (J) to panel [3] and secure with 9x small screws (F). Insert 8x bolts (A) into panels [2] and [3]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Attach panels [5], [6] and [7] to panels [2] and [3] with 4x dowels [3] and [7] to form the back of the unit as shown. (C) and secure with 8x locking nuts (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 [3] and [7] to form the back of the unit as shown. Attach panel [4] to the unit with 4x dowels (C) and secure with 4x long screws (P). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 Screw on 4x legs [9] to the brackets on panel [4] until secure. brackets (E) to panel [4] with 16x screws (M). Tighten with a screwdriver. Apply 4 x felt pads (O) to legs [9] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Slide the completed drawers into the unit, ensuring they slide smoothly Attach panels [12], [13] and [15] to panel [10] with 5x locking nuts (B). and easily. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Slide panel [14] along the grooves between the side panels [12] and Attach panels [12], [13] and [11] with 5x screws (D). Tighten with [13] to form the base of the drawer. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 8 Loosen the screw on the back of the handle. Attach 1x handle (N) to with 4x small screws (F). Tighten with a screwdriver. panel [10] with screw as shown. Complete the other two drawers. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 9 Attach 8x wedges (G) into the corners of the back of the unit as shown. Ensure the drawers slide easily along the rails. and secure with 8x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 10 Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
