  • Page 1 Simplifying System Integration 73S1215F Evaluation Board User Guide August 17, 2009 Rev. 1.8 UG_1215F_039 Downloaded from: http://www.datasheetcatalog.com/...
  • Page 2 Fedora is a registered trademark of RedHat, Inc. All other trademarks are the property of their respective owners. Teridian Semiconductor Corporation makes no warranty for the use of its products, other than expressly contained in the Company’s warranty detailed in the Teridian Semiconductor Corporation standard Terms and Conditions.

  • Page 3: Table Of Contents

    UG_1215F_039 73S1215F Evaluation Board User Guide Table of Contents Introduction ........................... 5 Evaluation Kit Contents ......................6 Evaluation Board Features ....................6 Recommended Equipment and Test Tools ................6 Evaluation Board Basic Setup ...................... 7 Connecting the Evaluation Board with an Emulation Tool ............8 Loading User Code into the Evaluation Board ...............
  • Page 4 Figure 10: 73S1215F Evaluation Board Bottom View (Silkscreen) ............23 Figure 11: 73S1215F Evaluation Board Top Signal Layer ..............24 Figure 12: 73S1215F Evaluation Board Middle Layer 1 – Ground Plane ..........25 Figure 13: 73S1215F Evaluation Board Middle Layer 2 – Supply Plane ..........26 Figure 14: 73S1215F Evaluation Board Bottom Signal Layer ..............

  • Page 5: Introduction

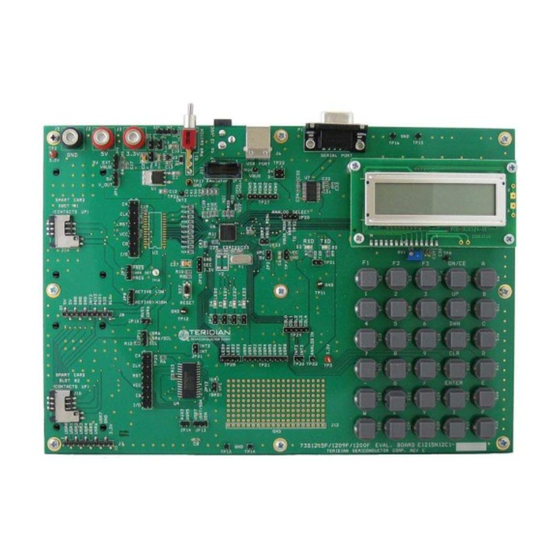

    1 Introduction The Teridian Semiconductor Corporation (TSC) 73S1215F Evaluation Board is used to demonstrate the capabilities of the 73S1215F Smart Card Controller device. It has been designed to operate either as a standalone or a development platform. The 73S1215F Evaluation Board can be programmed to run any of the Teridian turnkey applications or a user-developed custom application.

  • Page 6: Evaluation Kit Contents

    6 x 5 keypad • Real Time Clock (RTC) capability • 4 LEDs 1.3 Recommended Equipment and Test Tools The following equipment and tools (not provided) are recommended for use with the 73S1215F Evaluation Kit: • ® ® ® ®...

  • Page 7: Evaluation Board Basic Setup

    A standard USB 2.0 Full Speed Interface or • A standard RS-232 serial interface (TX/RX only). Figure 2: 73S1215F Evaluation Board Basic Connections The board provides by default the USB CCID application. Refer to Section 3 for information on setting up and running the USB CCID application.

  • Page 8: Connecting The Evaluation Board With An Emulation Tool

    73S1215F Evaluation Board User Guide UG_1215F_039 2.1 Connecting the Evaluation Board with an Emulation Tool The 73S1215F Evaluation Board can operate with an In-Circuit-Emulator (ICE) from Signum Systems (model ADM-51). Figure 3 shows the connections between the ICE and the evaluation board. The Signum System pod has a ribbon cable that must be directly attached to connector J11.

  • Page 9: Loading User Code Into The Evaluation Board

    Loading Code with the In-Circuit Emulator If firmware exists in the 73S1215F flash memory, the memory must be erased before loading a new file into memory. In order to erase the flash memory, the RESET button in the emulator software must be...

  • Page 10: Figure 4: Emulator Window Showing Reset And Erase Buttons

    73S1215F Evaluation Board User Guide UG_1215F_039 RESET BUTTON ERASE BUTTON Figure 4: Emulator Window Showing RESET and ERASE Buttons Figure 5: Emulator Window Showing Erased Flash Memory and File Load Menu Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 11: Using The Usb Ccid Application

    See the 73S1215F, 73S1217F CCID Application Note further details on the differences between the two drivers. When using the 73S1215F transparent reader – dual slot with keypad and LCD evaluation board, the Microsoft provided driver should not be used as this driver does not support the second slot nor the LCD display and keypad.

  • Page 12: Driver And Software Installation On A Linux System

    Generic” subdirectory. The uscccid.inf and usbccid.sys files must be in the same directory on the host. Figure 6: Board Setup for the USB-CCID Application 3.1.2 Driver and Software Installation on a Linux System Teridian has tested this board with CCID driver v1.3.2 and PCSC-Lite v.1.4.4 (middleware) on two distributions ® ® of Linux: Slackware 6 with kernel 2.4.16, and Fedora...
  • Page 13 A: This usually means the smart card driver has been disabled. Highlight and right click on the driver to re-enable. Q: The Teridian Smart Reader is nowhere to be found on the Device Manager menu and there is an “unknown USB device” found where the Teridian evaluation board should be.

  • Page 14: Evaluation Board Hardware Description

    4 Evaluation Board Hardware Description 4.1 Jumpers, Switches and Modules Table 2 describes the 73S1215F Evaluation Board jumpers, switches and modules. The Item # in Table 2 references Figure 7. The default setting refers to setup for running USB-CCID application.
  • Page 15 • 2 lines of 16 characters, each character dot • Includes an embedded matrix is 5x7. Hitachi HD44780 LCD , controlled from the on-board 73S1215F driver USR interface. Adjustable resistor to Can be used to adjust the brightness of the on- adjust LCD brightness board LCD module.
  • Page 16 In normal use, a jumper must be inserted in this header to connect the +5.0 V power supply of the jumper can be replaced by a µA / mA-meter to board to the VPC pins of the 73S1215F. This measure the actual current drawn by the 73S1215F.
  • Page 17 2 smart card interfaces, an optional daughter Inserted interface board can be populated to use the 73S1215F external smart card interface (lines SCIO and SCK), in conjunction with the USR(0:7) port and the INT2 interrupt input of the 73S1215F). Refer to the Electrical Schematic for pin assignment.
  • Page 18 J4 (underneath the PCB). Both connectors cannot be used at the same time. R24 - R33 Jumper resistors These jumper resistors will configure the board for a 73S1215F device. U3 should not be populated. 73S8009 See item 34. ‘VOUT’ Jumper: This jumper selects the 5.0 V power supply.

  • Page 19: Figure 7: 73S1215F Evaluation Board Jumper, Switch And Module Locations

    UG_1215F_039 73S1215F Evaluation Board User Guide Figure 7: 73S1215F Evaluation Board Jumper, Switch and Module Locations Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 20: Test Points

    2-pin test point, with one ground and one VDD signal directly connected to the 73S1215F and its decoupling capacitors. Can be used to measure the integrity of the digital power supply of the 73S1215F, or to add a decoupling capacitor. 2-pin test point, with one ground and one VPC signal directly connected to the 73S1215F and its decoupling capacitors.

  • Page 21: Schematic

    R23 close to U6 SY M1 1000pF 20 pF 20 pF 20 pF 20 pF 20 pF PROTO TY PE AREA MOUNT HOLES FOR STAND OFFS Logo TERIDIAN LOGO Figure 8: 73S1215F Evaluation Board Electrical Schematic Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 22: Pcb Layouts

    73S1215F Evaluation Board User Guide UG_1215F_039 4.4 PCB Layouts Figure 9: 73S1215F Evaluation Board Top View (Silkscreen) Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 23: Figure 10: 73S1215F Evaluation Board Bottom View (Silkscreen)

    UG_1215F_039 73S1215F Evaluation Board User Guide Figure 10: 73S1215F Evaluation Board Bottom View (Silkscreen) Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 24: Figure 11: 73S1215F Evaluation Board Top Signal Layer

    73S1215F Evaluation Board User Guide UG_1215F_039 Figure 11: 73S1215F Evaluation Board Top Signal Layer Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 25: Figure 12: 73S1215F Evaluation Board Middle Layer 1 - Ground Plane

    UG_1215F_039 73S1215F Evaluation Board User Guide Figure 12: 73S1215F Evaluation Board Middle Layer 1 – Ground Plane Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 26: Figure 13: 73S1215F Evaluation Board Middle Layer 2 - Supply Plane

    73S1215F Evaluation Board User Guide UG_1215F_039 Figure 13: 73S1215F Evaluation Board Middle Layer 2 – Supply Plane Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 27: Figure 14: 73S1215F Evaluation Board Bottom Signal Layer

    UG_1215F_039 73S1215F Evaluation Board User Guide Figure 14: 73S1215F Evaluation Board Bottom Signal Layer Rev. 1.8 Downloaded from: http://www.datasheetcatalog.com/...

  • Page 28: Bill Of Materials

    73S1215F Evaluation Board User Guide UG_1215F_039 4.5 Bill of Materials Table 4 provides the bill of materials for the 73S1215F Evaluation Board schematic provided in Figure Table 4: 73S1215F Evaluation Board Bill of Materials Digi-key Part Item Qty. Reference Part...
  • Page 29 UG_1215F_039 73S1215F Evaluation Board User Guide Digi-key Part Item Qty. Reference Part PCB Footprint Part Number Manufacturer Number +12 VDC RAPC722 SC1153-ND RAPC722-X Switchcraft DB9_RS232 AMP_745781 A2100-ND 745781-4 AMP/Tyco Electronics 10 kΩ 3266W 3266W-103-ND 3266W-1-103 Bourns 0 Ω R1,R6,R24-R33 P0.0GCT-ND...
  • Page 30 73S1215F Evaluation Board User Guide UG_1215F_039 Digi-key Part Item Qty. Reference Part PCB Footprint Part Number Manufacturer Number TP22 HEADER 2X2 2 x 2 pin S1011E-36-ND PBC36SAAN Sullins Electronics TP27 HEADER 6 6 x 1 pin S1011E-36-ND PBC36SAAN Sullins Electronics...

  • Page 31: Schematic Information

    The RTC oscillator drives a standard 32.768 kHz watch crystal. Crystals of this type are accurate and do not require a high current oscillator circuit. The oscillator in the 73S1215F has been designed specifically to handle watch crystals and is compatible with their high impedance and limited power handling capability.

  • Page 32: Lcd

    The 73S1215F does not contain an on-chip LCD controller. However, an LCD module (with built-in controller) can be used with the 73S1215F via use of specific USR (GPIO) pins. The LCD API libraries support up to a 2 line/16 character display.

  • Page 33: Smart Card Interface

    The VPC input is the power supply input for the smart card power. It is recommended that both a • The PRES input on the 73S1215F contains a very weak pull down resistor. As a result, an additional external pull down resistor is recommended to prevent any system noise from triggering a false card event.

  • Page 34: Ordering Information

    73S1215F Evaluation Board Quick Start Guide TSC Flash Programmer Model TFP2 User’s Manual 7 Contact Information For more information about Teridian Semiconductor products or to check the availability of the 73S1215F contact us at: 6440 Oak Canyon Road Suite 100...

  • Page 35: Revision History

    UG_1215F_039 73S1215F Evaluation Board User Guide Revision History Revision Date Description December 8, 2005 Document Created – Alpha version. January 25, 2007 Added necessary rework instructions for proper board operation and API library compatibility. April 17, 2007 Added 44 pin board.
