Teridian 73S1217F User Manual

Evaluation board lite
Hide thumbs Also See for 73S1217F:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
TM
Simplifying System Integration
73S1217F
Evaluation Board Lite User Guide
August 17, 2009
Rev. 1.2
UG_1217F_046

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73S1217F and is the answer not in the manual?

Questions and answers

Related Manuals for Teridian 73S1217F

Summary of Contents for Teridian 73S1217F

  • Page 1 Simplifying System Integration 73S1217F Evaluation Board Lite User Guide August 17, 2009 Rev. 1.2 UG_1217F_046...
  • Page 2 Fedora is a registered trademark of RedHat, Inc. All other trademarks are the property of their respective owners. Teridian Semiconductor Corporation makes no warranty for the use of its products, other than expressly contained in the Company’s warranty detailed in the Teridian Semiconductor Corporation standard Terms and Conditions.

  • Page 3: Table Of Contents

    Figure 3: Emulator Window Showing RESET and ERASE Buttons ............8 Figure 4: Emulator Window Showing Erased Flash Memory and File Load Menu ........8 Figure 9: 73S1217F Evaluation Board Lite Jumper, Switch and Test Point Locations ......14 Figure 10: 73S1217F Evaluation Board Lite Electrical Schematic ............15 Figure 11: 73S1217F Evaluation Board Lite Top View (Silkscreen) ............

  • Page 4: Introduction

    73S1217F Smart Card Controller devices. It has been designed to operate either as a standalone or a development platform. The 73S1217F Evaluation Board Lite can be programmed to run any of the Teridian turnkey applications or a user-developed custom application. Teridian provides its USB CCID application preloaded on the board and an EMV testing application on the CD.

  • Page 5: Evaluation Board Lite Package Contents

    ON/OFF switch for battery backup operation • Real Time Clock (RTC) capability • 1 LED Recommended Equipment and Test Tools The following equipment and tools (not provided) are recommended for use with the 73S1217F Evaluation Board Lite package: • ® ® ®...

  • Page 6: Evaluation Board Lite Basic Setup

    A standard RS-232 serial interface (TX/RX only). The board provides by default the USB CCID application. Refer to Section 3 for information on setting up and running the USB CCID application. Figure 2: 73S1217F Evaluation Board Lite Basic Connections Rev. 1.2...

  • Page 7: Using The Evaluation Board Lite With An Emulation Tool

    Loading Code with the In-Circuit Emulator If firmware exists in the 73S1217F flash memory, the memory must be erased before loading a new file into memory. In order to erase the flash memory, the RESET button in the emulator software must be...

  • Page 8: Figure 3: Emulator Window Showing Reset And Erase Buttons

    73S1217F Evaluation Board Lite User Guide UG_1217F_046 RESET BUTTON ERASE BUTTON Figure 3: Emulator Window Showing RESET and ERASE Buttons Figure 4: Emulator Window Showing Erased Flash Memory and File Load Menu Rev. 1.2...

  • Page 9: Using The Usb Ccid Application

    73S1217F Evaluation Board Lite User Guide 3 Using the USB CCID Application The USB CCID firmware is pre-installed on the 73S1217F Evaluation Board Lite. To operate correctly, it requires a PC with the appropriate driver installed to be connected through its USB port. When powered- up, the board is able to run with the demonstration host application included on the CD.

  • Page 10: Frequently Asked Questions

    USB host. If the problem persists, check the driver on the PC to make sure it is at least version 6.0.0.2. Contact your Teridian Sales Rep for the latest version of the driver. Sometimes, rebooting the PC Host to clear up any previous USB problem will help to resolve the problem.
  • Page 11 UG_1217F_046 73S1217F Evaluation Board Lite User Guide Q: The Teridian Smart Reader is nowhere to be found on the Device Manager menu and there is an “unknown USB device” found where the Teridian Evaluation Board Lite should be. A: This usually means the development board is properly powered up but there is no enumeration taking place.

  • Page 12: Evaluation Board Lite Hardware Description

    4 Evaluation Board Lite Hardware Description Jumpers, Switches and Test Points Table 2 describes the 73S1217F Evaluation Board Lite jumpers, switches and modules. The Item # in Table 2 references Figure 9. The default setting refers to setup for running USB-CCID application..
  • Page 13 UG_1217F_046 73S1217F Evaluation Board Lite User Guide Schematic Item Default Name Silkscreen setting Reference DB9 RS232 female This socket allows connection of a RS232 socket cable to a computer. Use a crossed wired Connect (RX/TX) cable. The evaluation board has an on-board level shifter (U7) to allow direct connection to a computer.

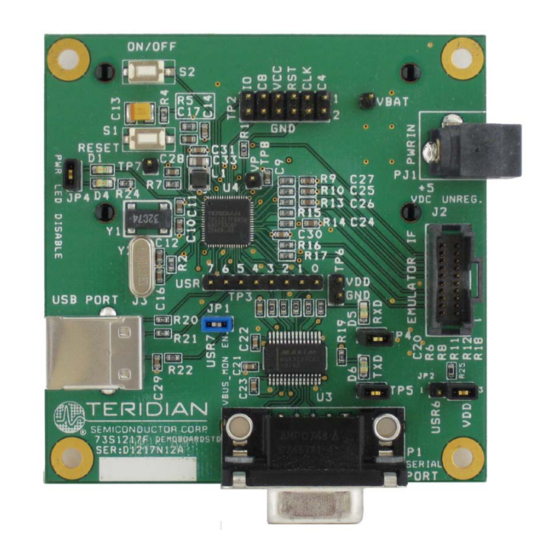

  • Page 14: Figure 9: 73S1217F Evaluation Board Lite Jumper, Switch And Test Point Locations

    73S1217F Evaluation Board User’s Guide Figure 5: 73S1217F Evaluation Board Lite Jumper, Switch and Test Point Locations...

  • Page 15: Schematic

    VBUS VBUS VBUS 100k +5VDC C30, C31 and C32 VBUS_MON should be as MOUNT HOLES FOR STAND OFFS close as possible Enable 0.1uF to VDD pins on U4 USB_CONN_4 200k Figure 6: 73S1217F Evaluation Board Lite Electrical Schematic Rev. 1.2...

  • Page 16: Pcb Layouts

    73S1217F Development Board User’s Guide UG_1217F_046 PCB Layouts Figure 7: 73S1217F Evaluation Board Lite Top View (Silkscreen) Figure 8: 73S1217F Evaluation Board Lite Bottom View (Silkscreen) Rev. 1.2...

  • Page 17: Figure 13: 73S1217F Evaluation Board Lite Top Signal Layer

    UG_1217F_046 73S1217F Evaluation Board Lite User Guide Figure 9: 73S1217F Evaluation Board Lite Top Signal Layer Figure 10: 73S1217F Evaluation Board Lite Middle Layer 1 – Ground Plane Rev. 1.2...

  • Page 18: Figure 15: 73S1217F Evaluation Board Lite Middle Layer 2 - Supply Plane

    73S1217F Development Board User’s Guide UG_1217F_046 Figure 11: 73S1217F Evaluation Board Lite Middle Layer 2 – Supply Plane Figure 12: 73S1217F Evaluation Board Lite Bottom Signal Layer Rev. 1.2...

  • Page 19: Bill Of Materials

    UG_1217F_046 73S1217F Evaluation Board Lite User Guide Bill of Materials Table 3 provides the bill of materials for the 73S1217F Evaluation Board Lite schematic provided in Figure Table 3: 73S1217F Evaluation Board Lite Bill of Materials Digi-key Part Item Qty. Reference...
  • Page 20 73S1217F Evaluation Board Lite User Guide UG_1217F_046 Digi-key Part Item Qty. Reference Part PCB Footprint Part Number Manufacturer Number R3,R22 100 kΩ P100KGCT-ND ERJ-3GEYJ104V Panasonic 10 Ω P10GCT-ND ERJ-3GEYJ100V Panasonic 10 kΩ P10KGCT-ND ERJ-3GEYJ103V Panasonic 62 Ω R7,R9,R10,R13,R14, P62GCT-ND ERJ-3GEYJ620V...

  • Page 21: Schematic Information

    The RTC oscillator drives a standard 32.768 kHz watch crystal. Crystals of this type are accurate and do not require a high current oscillator circuit. The oscillator in the 73S1217F has been designed specifically to handle watch crystals and is compatible with their high impedance and limited power handling capability.

  • Page 22: Usb Interface

    10 µF and a 0.1 µF capacitor are connected to provide proper decoupling for this input. • The PRES input on the 73S1217F contains a very weak pull down resistor. As a result, an additional external pull down resistor is recommended to prevent any system noise from triggering a false card event.

  • Page 23: Figure 8: Smart Card Connections

    UG_1217F_046 73S1217F Evaluation Board Lite User Guide • Keep CLK trace away from VCC and RST traces. Up to 30 pF to ground is allowed for filtering. • Keep 0.1 µF close to VDD pin of the device and directly take other end to ground.

  • Page 24: Ordering Information

    73S1217F Evaluation Board Lite Quick Start Guide TSC Flash Programmer Model TFP2 User’s Manual 7 Contact Information For more information about Teridian Semiconductor products or to check the availability of the 73S1217F contact us at: 6440 Oak Canyon Road Suite 100...

  • Page 25: Revision History

    UG_1217F_046 73S1217F Evaluation Board Lite User Guide Revision History Revision Date Description February 6, 2008 First publication. April 6, 2009 Minor format changes and corrections August 17, 2009 Miscellaneous editorial modifications. Added information from the Quick Start Guide. Rev. 1.2...
