5. DESCRIPTION OF THE WATER HEATER

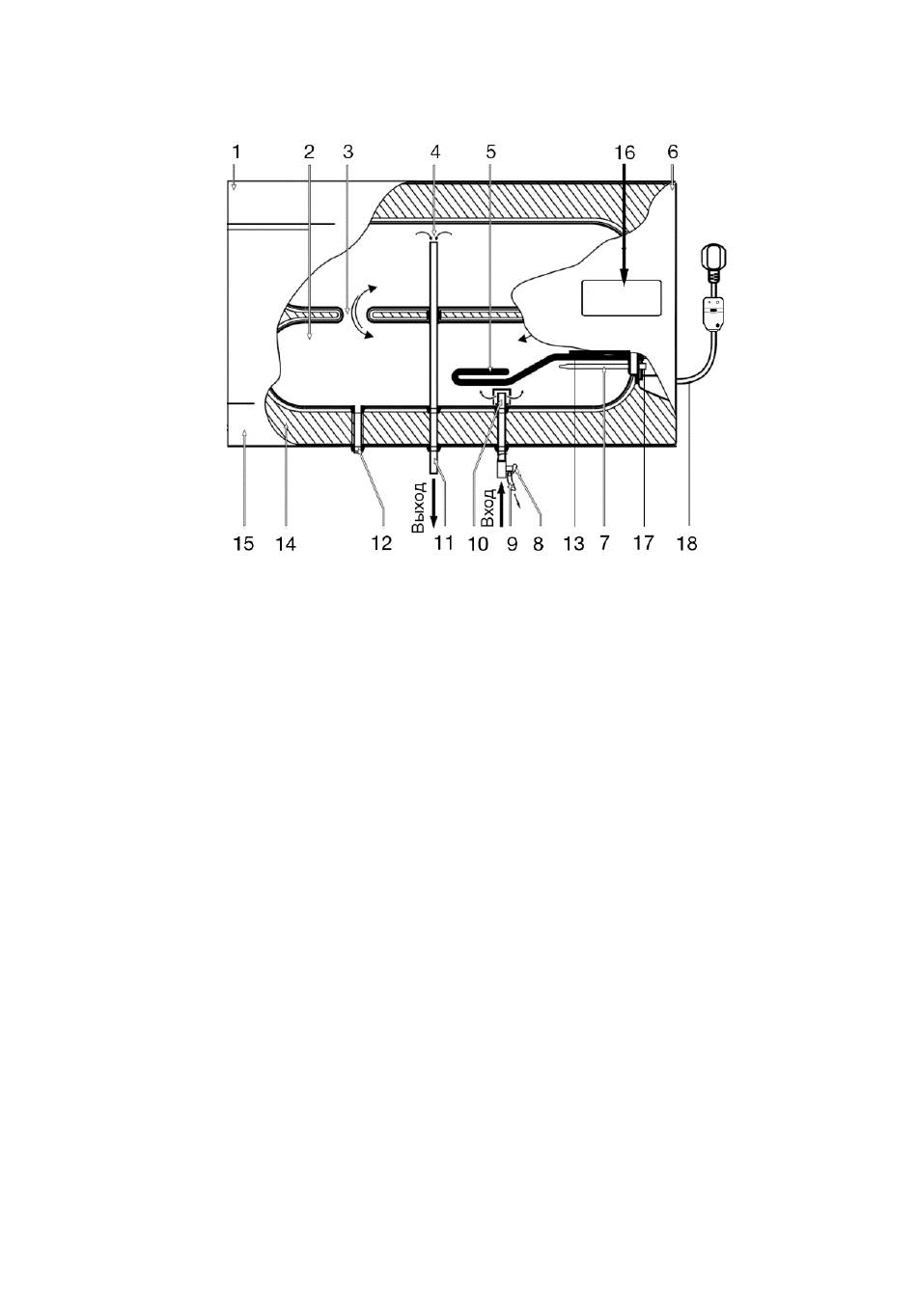

Figure 1 shows a horizontal type of water heater
Fig 1*
1. Left combined protective cover
2. Internal tank
3. Overflow system
4. The upper part of the hot water intake pipe
5. Heating element
6. Right combined protective cover
7. Thermostat sensor tube
8. Combined safety valve (mandatory installation is required on the cold water supply
pipe)
9. Emergency drain of excess water pressure (When the water heater is operating,
water may leak from the emergency drain hole. This is normal)
10. Inlet pipe with divider
11. Hot water outlet pipe
12. The branch pipe of the backup water drain (can be used to drain water at the time
of cleaning the inner surface of the tank during its maintenance)
13. Protective magnesium anode
14. Thermal insulation layer made of polyurethane foam
15. External decorative housing
16. Control Panel
17. Thermal switch
18. Power cord with RCD and plug
* The picture is for reference only and may differ from the actual product
