Product overview

Installation

Mounting

Use mounting holes to attach instrument to
stable underground
Verify that the power supply has sufficient capacity to install the instrument into the
·
network.
Always turn off electrical power before connecting equipment electrically.
·

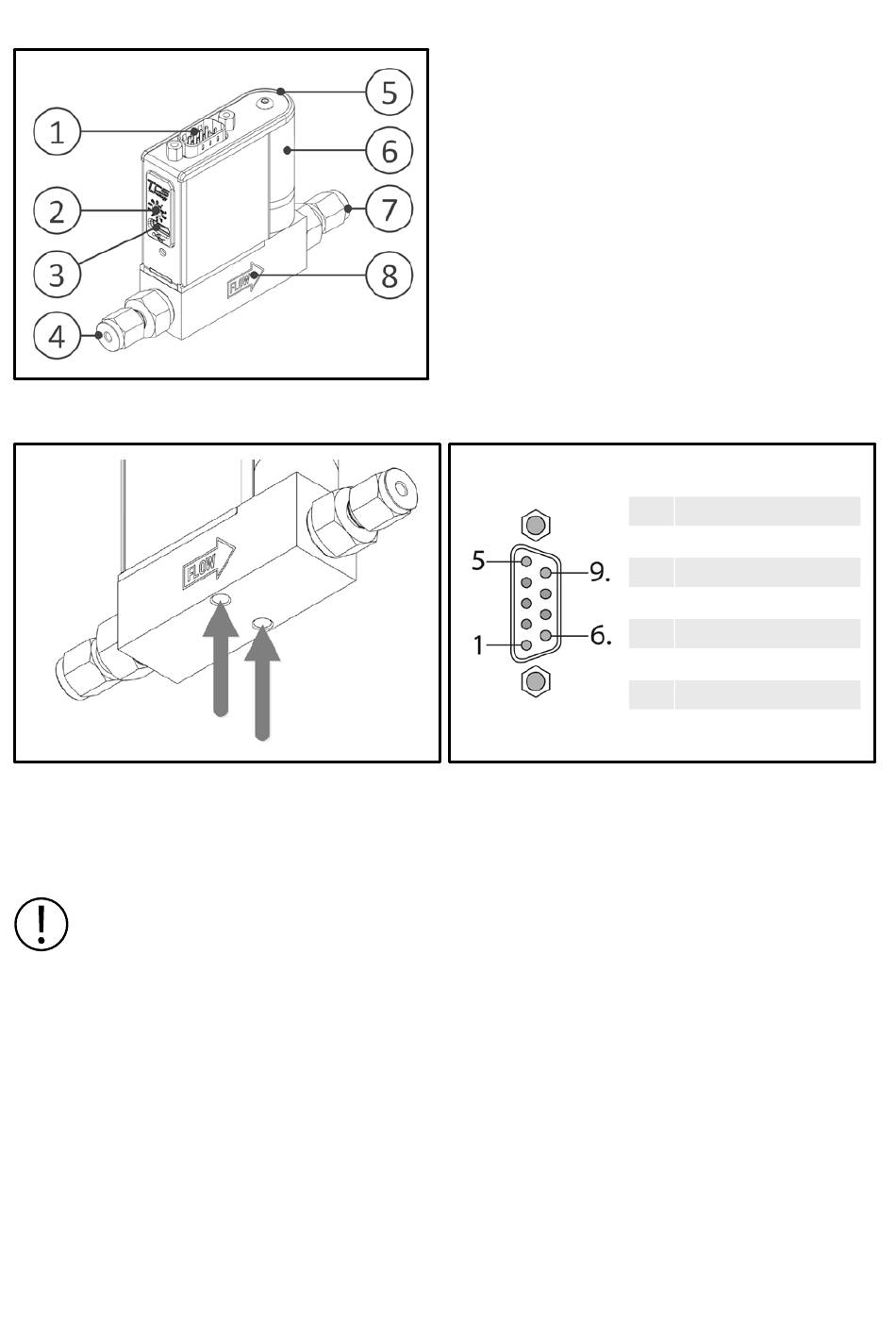

1. Power & signal connector (9-pin D-sub)
2. Address selection switch
3. Service port (USB-C)
4. Fluid inlet
5. Status indication LED
6. Control valve
7. Fluid outlet
8. Flow direction

Electrical connection

9-pin D-sub male connector - pinning
1 RS-485 D0 (A/A')
2 Not connected
3 Not connected
4 0 Vs
5 Not connected
6 RS-485 D1 (B/B')
7 +Us (24 Vdc)
8 0 Vs
9 Shield
