  6. Owner's manual and installation manual

Hunter 45057-01 Owner's Manual And Installation Manual

Type 2 models ceiling fan
Hide thumbs

Advertisement

Table of Contents

For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Form# 45057-01
20090624
©2009 Hunter Fan Co.
Type 2 Models
Type 2 Models
Type 2 Models

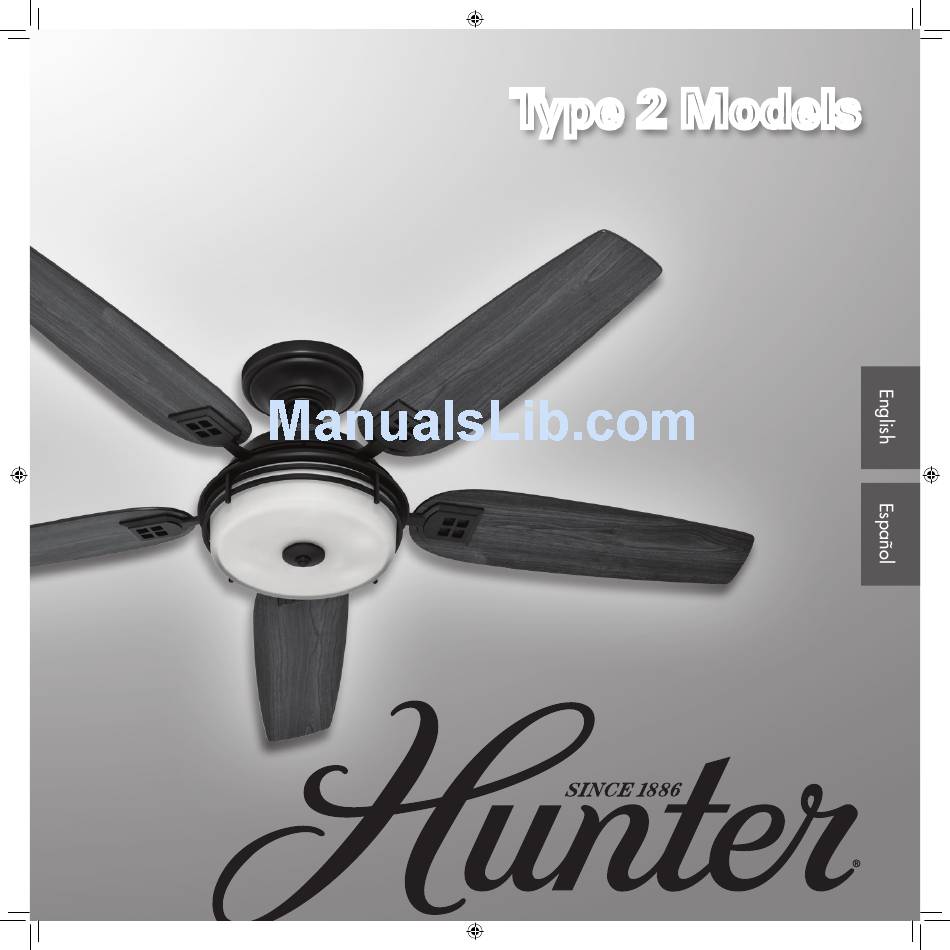

Owner's Guide and Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45057-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter 45057-01

Summary of Contents for Hunter 45057-01

  • Page 1 For reference, also attach your receipt or a copy of your receipt to the manual. __________________________________________ Model No. __________________________________________ Date Purchased __________________________________________ Where Purchased Form# 45057-01 20090624 ©2009 Hunter Fan Co. Type 2 Models Type 2 Models Type 2 Models Owner’s Guide and Installation Manual...

  • Page 2: Table Of Contents

    4 • Wiring the Fan . . . . . . . . . . . . . . . . . .
  • Page 3 Understanding Mounting and Installer’ s Choice® Hunter’s patented 3-position mounting system provides you maximum installation flexibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profile, Standard, or Angled mounting. The steps in this manual include instructions for all three Installer’s Choice mounting methods.

  • Page 4: Getting Ready

    • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...

  • Page 5: Installing The Ceiling Plate

    Tighten the screws into the 9/64” pilot holes; do not use lubricants on the screws. Do not over tighten. Flat Washer 45057-01 • 06/24/09 • Hunter Fan Company For Angled Ceilings: Be sure to orient the ceiling plate so that the two tabs are pointing toward the ceiling peak.

  • Page 6: Assembling And Hanging The Fan

    Note: To hang the fan, you must tilt the canopy to an almost vertical position so that the canopy slots sit on the ceiling plate hooks. 3-7. Raise the fan and align the slots in the canopy with the hooks on the ceiling plate.

  • Page 7: Wiring The Fan

    4-7. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box. 45057-01 • 06/24/09 • Hunter Fan Company 4 • Wiring the Fan fsdfsdf...

  • Page 8: Installing The Canopy And Canopy

    Note: Your fan may have multiple tabs and grooves that must be aligned. 5-2. Swing the fan up to align the canopy screw holes with the mounting holes on the ceiling plate. WARNING: The slots in the canopy must remain engaged while swinging the canopy for alignment.

  • Page 9: Assembling The Blades

    Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan). 6-1. Attach each blade to a blade iron using three blade washers and three blade assembly screws. 6-2. Remove the blade mounting screws and rubber shipping bumpers from the motor.

  • Page 10: Light Fixture

    7 • Completing Your Installation With a Light Fixture Your Hunter fan comes with an integrated light fixture assembly. WARNING: Use only the light fixture supplied with this fan model. 7-1. To attach the light kit top housing, partially install two housing assembly screws into the light kit mounting plate.

  • Page 11: Completing Your Installation With A

    Install the remaining screw into the housing. Tighten all three screws firmly. Housing Assembly Screw Keyhole Slots 45057-01 • 06/24/09 • Hunter Fan Company Light Kit Housing Assembly Screw Light Kit Top Housing...
  • Page 12 (You may find the plastic breakaway connector on the end of the extra chain.) 7-11. Thread the fan pull chain through the hole in the metal disk. Then, thread the fan pull chain through the hole in the center of the glass bowl.

  • Page 13: Fan

    8 • Operating and Cleaning Your Ceiling Fan 8-1. Turn on electrical power to the fan. 8-2. The fan pull chain controls power to the fan. The pull chain has four settings in sequence: High, Medium, Low, and Off. • Pull the chain slowly to change settings.

  • Page 14: Troubleshooting

    Problem: If the light on this fan shuts off suddenly 1. Turn the power to the fan off at the wall switch. Wait 30 seconds, then resume power to the fan. 45057-01 • 06/24/09 • Hunter Fan Company 9 •...
