installation and
operation manual
for Hunter
Ceiling Fans
TYPE 3 Models
45007-01 • 11/02/07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hunter 45007
Summary of Contents for Hunter 45007

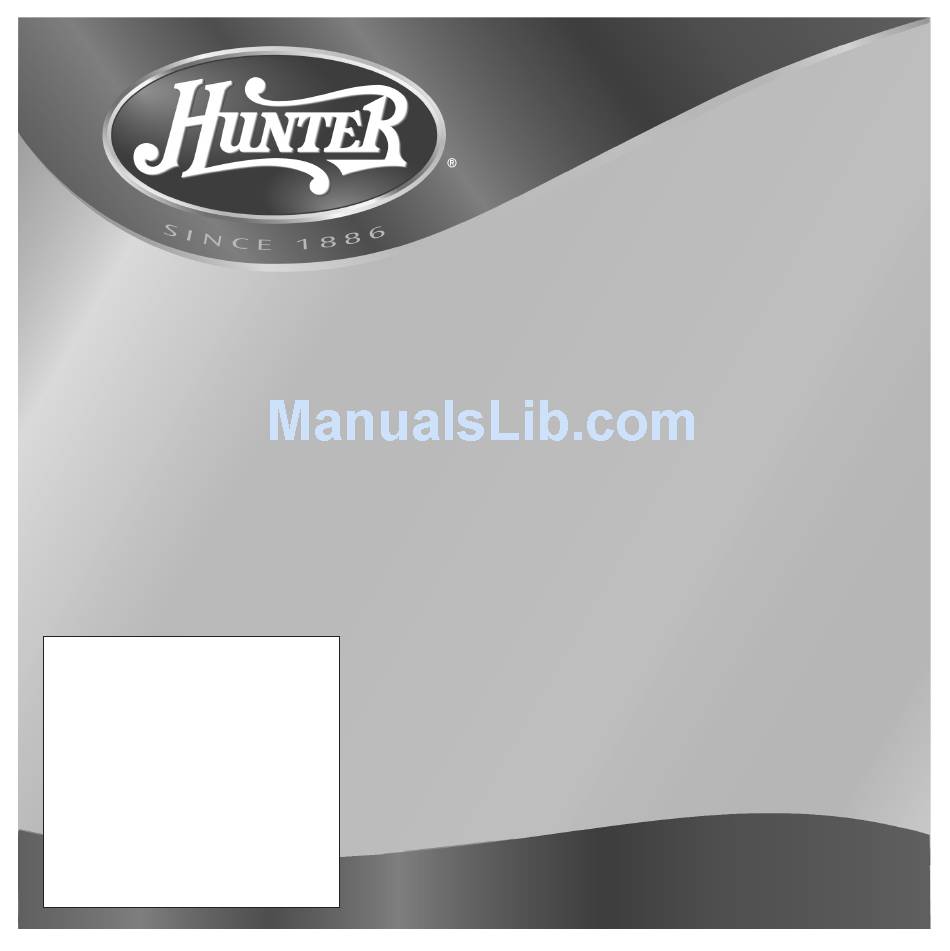

- Page 1 Model Name: _____________________ Catalog/Model No.: ________________ Serial No.: ________________________ Date Purchased: ___________________ Where Purchased: _________________ For reference also attach your receipt or a copy of your receipt to the manual. installation and operation manual for Hunter Ceiling Fans TYPE 3 Models 45007-01 • 11/02/07...
-
Page 2: Table Of Contents
9 • Operating the Remote Control and Mounting the Holder ... . 13 10 • Operating and Cleaning Your Ceiling Fan ......14 11 • Troubleshooting ....15 © 2007 Hunter Fan Company Welcome ®... - Page 3 Support Brace Ceiling Outlet Box Angled Mounting Style Angled Mounting recommended for a vaulted or angled ceiling 45007-01 • 11/02/07 • Hunter Fan Company Understanding Mounting and Installer’ s Choice® Hunter’s patented 2-position mounting system provides you maximum installation flexibility and ease. You can install your Hunter fan in one of two ways, depending on ceiling height and your preference: Standard or Angled mounting. The steps in this manual include instructions for both Installer’s Choice mounting methods. Considering Optional Accessories Consider using Hunter’s optional accessories, including a wall-mounted...
-
Page 4: Getting Ready
To install a ceiling fan, be sure you can do the following: • Locate the ceiling joist or other suitable support in ceiling. • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: • Electric drill with 9/64” bit... -
Page 5: Installing The Hanger Bracket
For proper alignment use slotted holes directly across from each other. If you are installing the fan on an ANGLED ceiling, be sure to orient the hanger bracket as shown in Illustration 2-3 (left or right view). Note: The isolators should be flush against the ceiling. -
Page 6: Assembling And Hanging The Fan
3 • Assembling and Hanging the Fan 3-1. To assemble fan to hang down from a flat or angled ceiling, place the canopy and canopy trim ring around the adapter so that they rest on the fan assembly. 3-2. Feed the wires from the fan through the downrod. -
Page 7: 4 • Setting The Remote Transmitter And Receiver
When two or more fans are located near each other, you may desire to have the receiver/transmitter for each fan set to a different code, so that the operation of one fan does not affect the operation of the other fans. -
Page 8: Wiring The Fan
5-7. Check each connection to make sure no bare wire or wire strands are visible. Push all wires and wire connectors, except for the white antenna wire from the receiver, back through the ceiling plate into the outlet box. 45007-01 • 11/02/07 • Hunter Fan Company... -
Page 9: Installing The Canopy And Canopy
Should you need to remove the canopy trim ring, follow these steps: 1. Twist canopy trim ring counterclockwise until it releases from canopy. Step 6-5 Canopy Screw 45007-01 • 11/02/07 • Hunter Fan Company Steps 6-1 – 6-2 Hanger Bracket Canopy Trim Canopy Step 6-3 Step 6-4 Ring... -
Page 10: Assembling The Blades
7-1. Insert each blade into slot. Align the holes on the blade with the holes on the blade ring. 7-2. Attach the blade to the blade ring using the blade assembly screws. 7-3. Repeat for each blade. 45007-01 • 11/02/07 • Hunter Fan Company 7 • Assembling the Blades Step 7-1 Step 7-2... -
Page 11: Completing Your Installation With A Bowl Light Fixture
CAUTION: Make sure the heat shield assembly is securely attached to the housing mounting plate. Failure to properly attach and tighten all three assembly screws could result in the heat shield assembly and light fixture falling. 45007-01 • 11/02/07 • Hunter Fan Company Steps 8-1 – 8-4 Assembly Heat... - Page 12 8-10. Install the decorative screws into the metal rods to secure the glass bowl in place. Heat Shield Assembly Light Kit Assembly Steps 8-8 – 8-10 45007-01 • 11/02/07 • Hunter Fan Company Steps 8-5 – 8-7 Keyhole Slots Assembly Screw Metal Rod Light Bulbs (B10 Candelabra-...
-
Page 13: Operating The Remote Control And Mounting The Holder
9 • Operating the Remote Control and Mounting the Holder 9 • Operating the Remote Control and Mounting the Holder 9-1. The remote has individual buttons for setting fan speed and light intensity. Refer to the figure on the right. Note: For best operation, start the fan by pressing high, then select your desired speed. - Page 14 10-2. C eiling fans work best by blowing air downward (counterclockwise blade rotation) in warm weather to cool the room with a direct breeze. In winter, having the fan draw air upward (clockwise blade rotation) will distribute the warmer air trapped at the ceiling around the room without causing a draft.
-
Page 15: Troubleshooting
1. Tighten the blade bracket screws until snug. 2. Check to see if the blade is cracked. If so, replace all the blades. Problem: Excessive wobbling. 1. If your fan wobbles when operating, use the enclosed balancing kit and instructions to balance the fan. 2. Tighten all blade iron screws. 3. Turn power off, support fan very carefully, and check that the hanger ball is properly seated.
