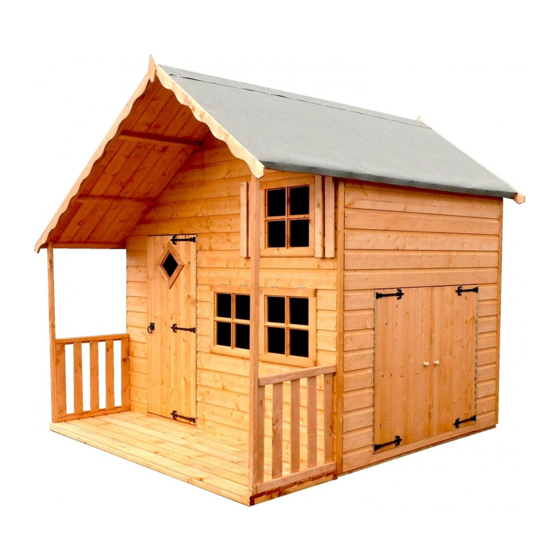

Shire Crib Playhouse Assembly

Brigstock Road, Wisbech PE13 3JJ
TOOLS REQUIRED
Hammer
●
Step ladder
●
Sand paper
●
Battery-powered drill/screwdriver
●
8mm drill
●
Pencil
●
Tape measure
●
Gloves
●
Sharp knife and saw
●
IMPORTANT!
PLEASE READ PRIOR TO ASSEMBLY OF
THE BUILDING
EVERY PRECAUTION IS TAKEN TO
ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR
POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL
SURFACES FOR THE FOLLOWING:
1 RAISED GRAIN, SPLINTERS: sand
down timber to smooth finish
2 NAIL/SCREW/PIN HEADS PROUD: tap
home to be flush with surface of timber
3 DAMAGED SCREW HEADS
RESULTING IN SHARP SPLINTERS OF
METAL: replace
4 SHARP ENDS OF NAILS/ SCREWS/
PINS PROTRUDING THROUGH THE
PANEL: remove and reposition.
5 ENSURE ALL PARTS ARE SECURED
AGAINST REASONABLE FORCE:
remove and refit
6 ENSURE THERE ARE NO LOOSE
PARTS: remove and refit/discard
We recommend that protective
gloves be worn throughout
PLEASE NOTE
Wood is a natural product and is therefore
prone to changes in appearance, including
some warping, movement and splitting,
particularly during unusual climatic conditions
(long hot or wet spells of weather). As a natural
occurrence this is not covered by a guarantee.
Assembly of Crib Playhouse
Adult Assembly Only - do not attempt to modify this building
Thank you and congratulations on the purchase of your Shire garden building.
We believe that this product will give you many years of excellent service. This is a
natural product manufactured to a high standard therefore if you have any queries or
experience any difficulties then please contact our customer service hotline on
01945 465 295.
Normal office hours: 8.30 am to 5.00 pm Monday to Friday.
Preparation of base
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Floor area of the building: 2090x1790 (7'x6') excluding verandah.
Total height clearance: 2351mm
The chosen position in your garden for the siting of the building should be excavated to
a depth of 75mm to allow a base of sand, on to which paving slabs can be evenly laid -
THEY MUST BE LEVEL AND FIRM.
Treatment/care of your Garden Building
Treat with a suitable decorative wood finish immediately. We recommend that all timber
pieces be treated again prior to assembly and again within 3 months of assembly. We
further recommend that all pieces are treated again at least annually or as frequently as
the instructions on the product used recommends.
We would suggest that all wall panels be treated in an upside-down position to allow
the finish/treatment to ingress into the tongue and groove jointing.
We would also remind you that you would rarely (if ever) be able to re-treat the
underside of the floor following assembly. We strongly recommend that the underside
of the floor is treated an absolute minimum of twice (not including pre-treatment).
Garden buildings are not waterproof, therefore on assembling building we
recommend using a silicon based sealant between wall panels and between wall
panels and floor.
Parts
25 40
1 7 26
1 02 0
R O O F P A N E LS
1 716
2 09 0
FR O N T P A N E L
1 34 5
1 72 0
LH S ID E P A N E L R H S ID E P A N E L
QTY DESCRIPTION
2 First floor support frame
44x44x854mm
12 Glazing 175x175mm
50 Window beading 177mm
4 Door beading 44x12x145
1 Fascia 95x12x1832mm
1 Fascia profiled 95x12x1800
2 Fascia 70x12x1142
1 Fascia profiled 70x12x1140
2 Cover strip 46x12x1720
17 90
14 90
59 5
6 55 6 55
LH V E R A N D A H
R H V E R A N D A H
R A IL
R A IL
7 70
1 13 6
U P S TA IR S G U A R D R A IL
13 53
57 7
2 09 0
D O O R
B A C K P A N E L
1 70 6
1 72 0 20 90
F LO O R P A N E L
2 Cover strip 46x12x1355
2 Ring handle
2 Wooden knob
2 Roller door catch
2 Wood block for door catch
2 Vents
2 Diamonds
1 Ladder
2 Shutters
7 'L' shaped bracket
7 False hinges
PANELS VIEWED
FROM OUTSIDE
5 95
1 72 0
12 40
83 0
U P S T A IR S
F LO O R
2 09 0
1 31 0
65 6
V E R A N D A H
FLO O R
1 79 0
64 60mm screws
2 45mm flat head screws
30 25mm screws
22 25mm black screws
8 20mm screws
14 10 mm black screws
32 40mm nails
160 Felt nails
96 15mm panel pins
1 Felt roll 8mtr x 1mtr
