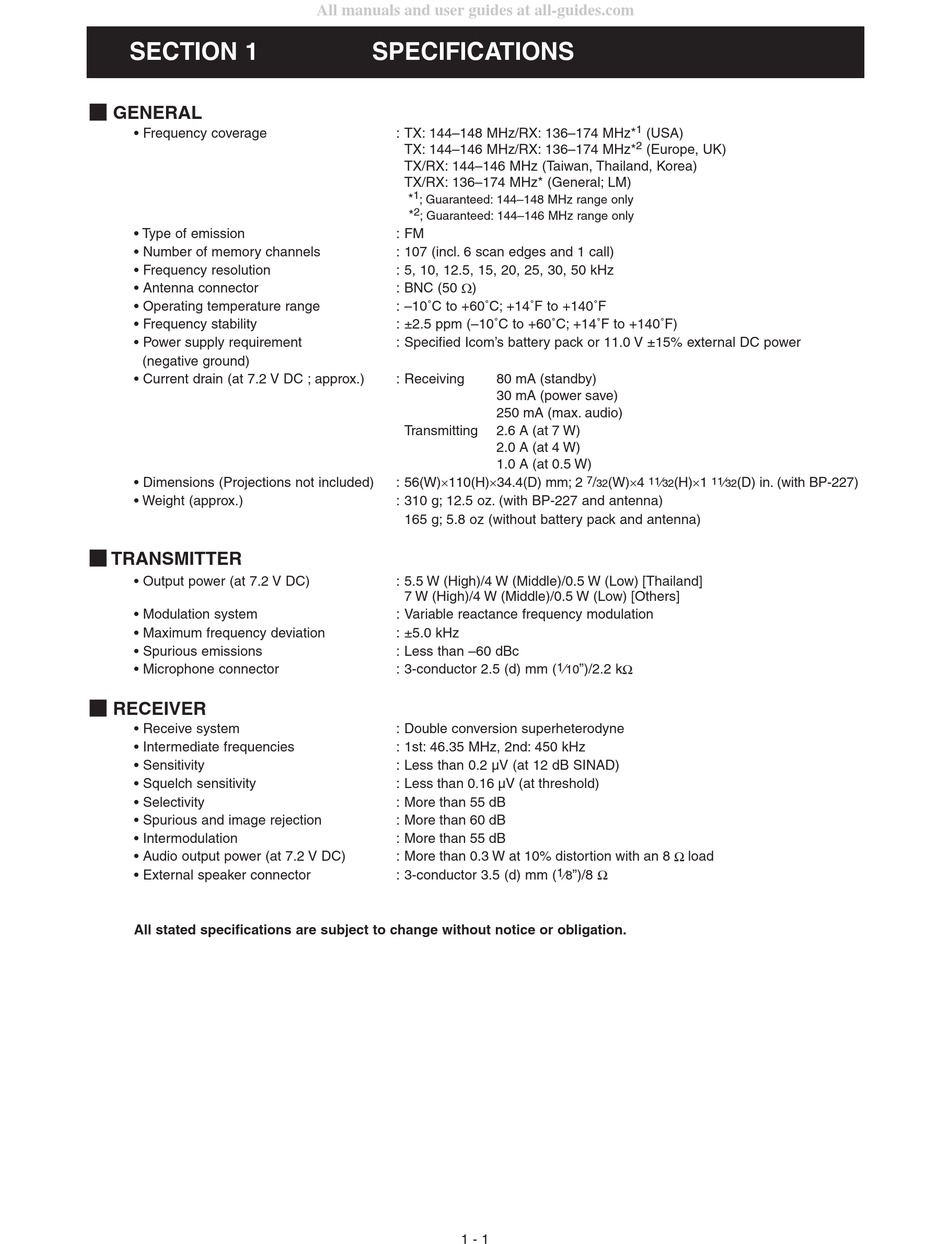

SECTION 1
M GENERAL
• Frequency coverage
• Type of emission
• Number of memory channels
• Frequency resolution
• Antenna connector
• Operating temperature range
• Frequency stability
• Power supply requirement
(negative ground)
• Current drain (at 7.2 V DC ; approx.)
• Dimensions (Projections not included)
• Weight (approx.)
M TRANSMITTER
• Output power (at 7.2 V DC)
• Modulation system
• Maximum frequency deviation
• Spurious emissions
• Microphone connector
M RECEIVER
• Receive system
• Intermediate frequencies
• Sensitivity
• Squelch sensitivity
• Selectivity
• Spurious and image rejection
• Intermodulation
• Audio output power (at 7.2 V DC)
• External speaker connector
All stated specifications are subject to change without notice or obligation.
All manuals and user guides at all-guides.com
SPECIFICATIONS
: TX: 144–148 MHz/RX: 136–174 MHz*
TX: 144–146 MHz/RX: 136–174 MHz*
TX/RX: 144–146 MHz (Taiwan, Thailand, Korea)
TX/RX: 136–174 MHz* (General; LM)
1
*
; Guaranteed: 144–148 MHz range only
2
*
; Guaranteed: 144–146 MHz range only
: FM
: 107 (incl. 6 scan edges and 1 call)
: 5, 10, 12.5, 15, 20, 25, 30, 50 kHz
: BNC (50 Ω)
: –10˚C to +60˚C; +14˚F to +140˚F
: ±2.5 ppm ( –10˚C to +60˚C; +14˚F to +140˚F)
: Specified Icom's battery pack or 11.0 V ±15% external DC power
: Receiving 80 mA (standby)
30 mA (power save)
250 mA (max. audio)
Transmitting 2.6 A (at 7 W)
2.0 A (at 4 W)
1.0 A (at 0.5 W)
: 56(W)×110(H)×34.4(D) mm; 2
: 310 g; 12.5 oz. (with BP-227 and antenna)
165 g; 5.8 oz (without battery pack and antenna)
: 5.5 W (High)/4 W (Middle)/0.5 W (Low) [Thailand]
7 W (High)/4 W (Middle)/0.5 W (Low) [Others]
: Variable reactance frequency modulation
: ±5.0 kHz
: Less than –60 dBc
: 3-conductor 2.5 (d) mm (
: Double conversion superheterodyne
: 1st: 46.35 MHz, 2nd: 450 kHz
: Less than 0.2 µV (at 12 dB SINAD)
: Less than 0.16 µV (at threshold)
: More than 55 dB
: More than 60 dB
: More than 55 dB
: More than 0.3 W at 10% distortion with an 8 Ω load
: 3-conductor 3.5 (d) mm (
1 - 1
1
(USA)
2
(Europe, UK)
7
/ (W)×4 11 ⁄ (H)×1 11 ⁄
32 32 32
1
⁄ ")/2.2 kΩ
10
")/8 Ω
1
⁄
8
(D) in. (with BP-227)
