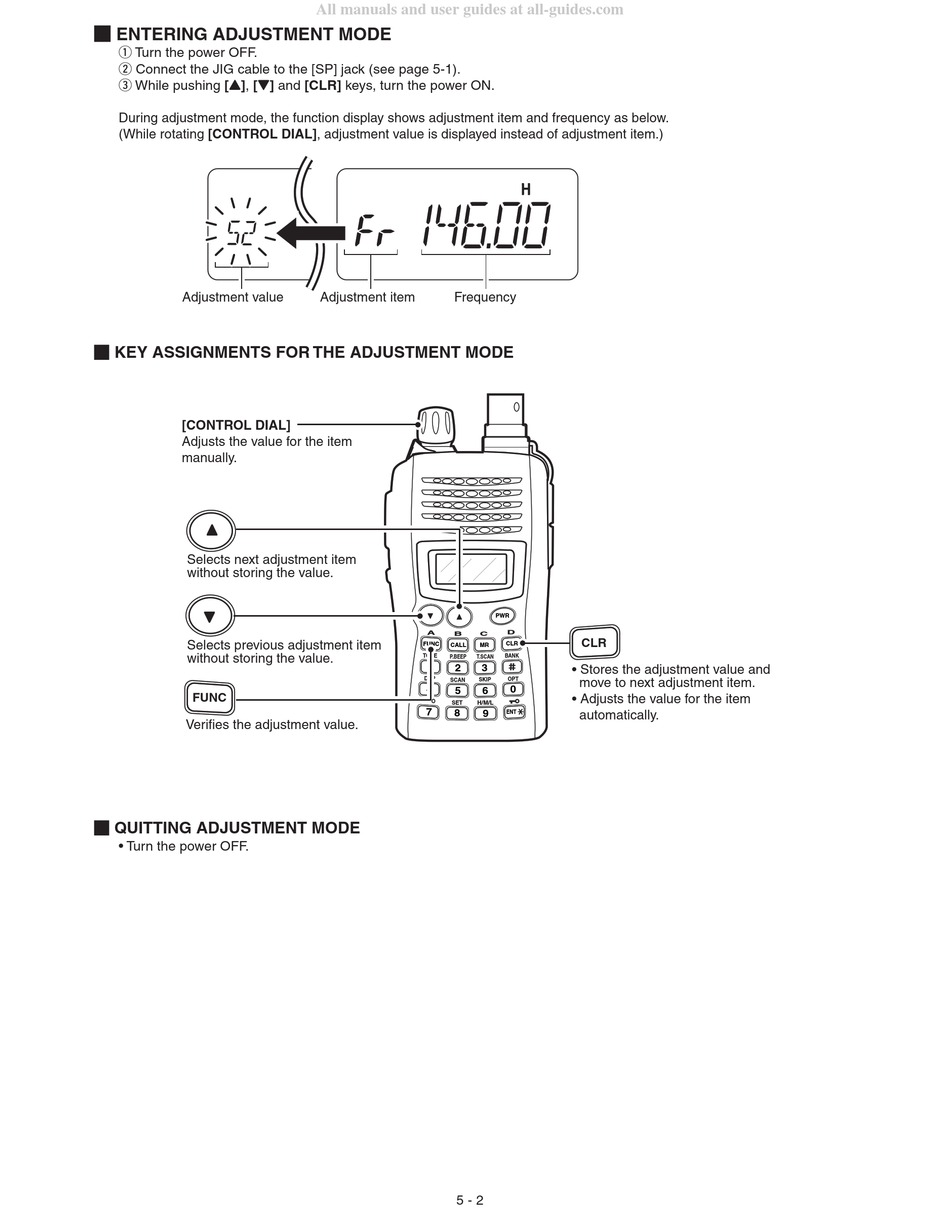

M ENTERING ADJUSTMENT MODE
q Turn the power OFF.
w Connect the JIG cable to the [SP] jack (see page 5-1).
e While pushing [Y], [Z] and [CLR] keys, turn the power ON.
During adjustment mode, the function display shows adjustment item and frequency as below.
(While rotating [CONTROL DIAL], adjustment value is displayed instead of adjustment item.)
Adjustment value
M KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE
[CONTROL DIAL]
Adjusts the value for the item
manually.
Selects next adjustment item
without storing the value.
Selects previous adjustment item
without storing the value.
FUNC
Verifies the adjustment value.
M QUITTING ADJUSTMENT MODE
• Turn the power OFF.
All manuals and user guides at all-guides.com
Adjustment item Frequency
A
B C
FUNC
CALL MR
TONE
P.BEEP T.SCAN
1
2 3
DUP
SKIP
SCAN
4
5 6
PRIO
SET H/M/L
7
8 9
5 - 2
PWR
D
CLR
CLR
BANK
• Stores the adjustment value and
OPT
move to next adjustment item.
0
• Adjusts the value for the item
ENT
automatically.
