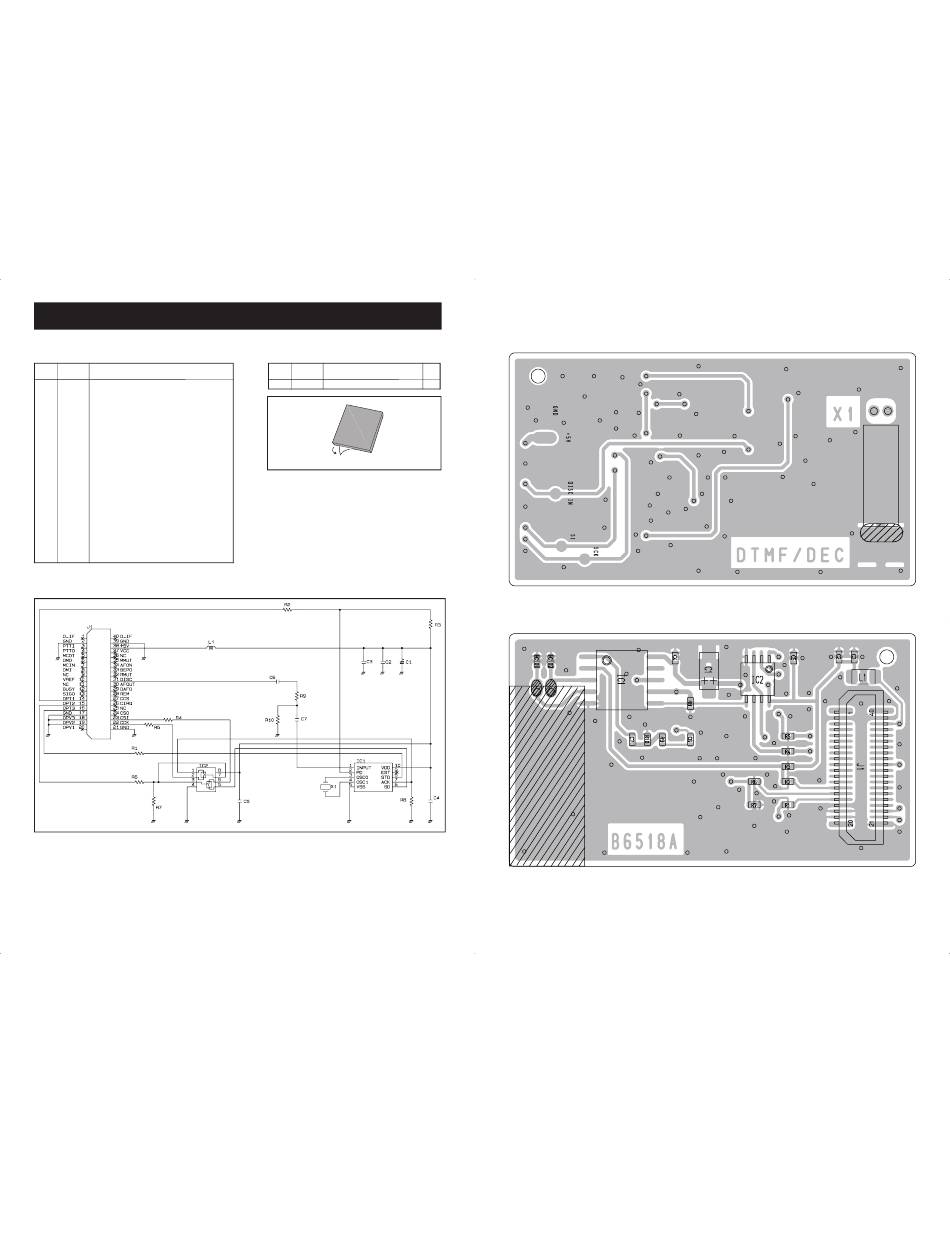

SECTION 12

UT-108 (Optional Product)

• PARTS LIST
[MAIN UNIT]
REF
ORDER
DESCRIPTION
NO.
NO.
IC1
1130007561 S.IC
LC73881M-TLM-E
IC2
1130007301 S.IC
TC4W66FU (TE12L,F)
X1
6050005090 XTL
CR-245 (4.194304 MHz)
L1
6200001260 S.COL MLF2012A 1R8M-T
R1
7030005120 S.RES ERJ2GEJ 102 X (1 k)
R2
7030005120 S.RES ERJ2GEJ 102 X (1 k)
R3
7030005090 S.RES ERJ2GEJ 104 X (100 k)
R4
7030005120 S.RES ERJ2GEJ 102 X (1 k)
R5
7030005120 S.RES ERJ2GEJ 102 X (1 k)
R6
7030005120 S.RES ERJ2GEJ 102 X (1 k)
R7
7030005090 S.RES ERJ2GEJ 104 X (100 k)
R8
7030005090 S.RES ERJ2GEJ 104 X (100 k)
R9
7030007340 S.RES ERJ2GEJ 153 X (15 k)
R10
7030008410 S.RES ERJ2GEJ 392 X (3.9 k)
C1
4550006980 S.TAN
TEESVA2 1A 475M8R
C2
4030017460 S.CER ECJ0EB1E102K
C3
4030017420 S.CER ECJ0EC1H470J
C4
4030016930 S.CER ECJ0EB1A104K
C5
4030016930 S.CER ECJ0EB1A104K
C6
4030016930 S.CER ECJ0EB1A104K
C7
4030016930 S.CER ECJ0EB1A104K
J1
6510025230 S.CNR AXK640345J
• SCHEMATIC DIAGRAM
V85 A3.indd   16-17
All manuals and user guides at all-guides.com
[ACCESSORY]
REF
ORDER
DESCRIPTION
NO.
NO.
MP1
8930070290 SPONGE(JC)
MP1
12 - 1
• BOARD LAYOUTS
[TOP VIEW]
QTY.
1
[BOTTOM VIEW]
1/19/2007   10:44:11 AM
