SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
REF ORDER
NO. NO.
MP1 8010020620 2964 CHASSIS
MP2 8210023390 2964 T-FRONT PANEL (incl. MP4, 5, 6, 7, 12, 14, 24)
8210023470 2964 T-FRONT PANEL (A) (incl. MP4, 5, 6, 7, 12, 14, 24)
MP3 8210023400 2964 REAR PANEL
MP4 8310068430 2964 WINDOW PLATE
MP5 8930071230 2964 WINDOW SHEET
MP6 8210023410 2964 PTT PANEL
MP7 8930071120 2964 PTT BUTTON
MP8 8930071130 2964 JACK CAP
MP9 8930071110 2964 DC CAP
MP10 8930071150 2964 T-KEY
MP11 8930071180 2964 MAIN SEAL
MP12 8930071190 2964 PTT RUBBER
MP13 8930071200 2964 JACK PLATE
MP14 8930050220 1903 SP NET
MP15 8830001340 1903 HEX NUT
MP16 8830001250 ANT CONNECTOR-101 nut
MP17 8610012170 KNOB N-326
MP18 8930051290 2251 OPT SHEET
MP19 8930059360 2600 RELEASE BUTTON
MP20 8930063030 2721 RELEASE PLATE
MP21 8930048840 2135 MIC SPONGE
MP22 8930056540 Push spring (AH)
MP23 8930055870 O-ring (AO)
MP24 8930046020 1123 SHEET (A)-1
MP25 8610009240 knob spring NO.7800P
MP26 8810008641 0 tap 1 fl at washer B0 2X4 NI-ZC3 (BT)
MP27 8810010191 Screw BiH M2X4 SUS SSBC
MP28 8810009511 Screw BT B0 2X4 NI-ZC3 (BT)
MP29 8810009221 Screw BT B0 2X8 NI-ZK3 (BT)
MP30 8810009561 Screw BT B0 2X6 NI-ZK3 (BT)
[LOGIC UNIT]
REF ORDER
NO. NO.
DS4 5030002970 S10996
MC1 7700002710 EM6027P-46C33-G
S3 2260002840 SKHLLFA010
S801 7600000210 TP70N00E2015F-1903
S802 2260002840 SKHLLFA010
SP1 2510000840 CS028014-12
W5 8900016360 OPC-1190A
W6 8900016400 OPC-1715
EP1 8930071440 SRCN-2964-SP-N-W
MP1 8210023420 2964 REFLECTOR
MP2 8930071210 2964 LCD HOLDER
MP3 8510018220 2964 LOGIC SHIELD
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
All manuals and user guides at all-guides.com
DESCRIPTION QTY.
1
Except [THA] 1
[THA] 1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
5
2
7
2
3
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
1
1
7 - 1
[RF UNIT]
REF ORDER
NO. NO.
J1 6450000870 HEC2711-01-020
J2 6510023521 54104-3696
J3 6510025910 BNC-R169
MP1* 8510018120 2964 VCO CASE
MP2 8950005512 2403 CONTACT SPRING -2
MP5* 8410002650 2964 PA HEATSINK
MP6 8510016120 2721 VCO COVER
MP7 8930072060 Shield sponge (BU)
MP8 8510017480 2964 RF SHIELD
MP9 8930072250 2964 ANT SPRING
*: Refer to SECTION 9 BOARD LAYOUTS.

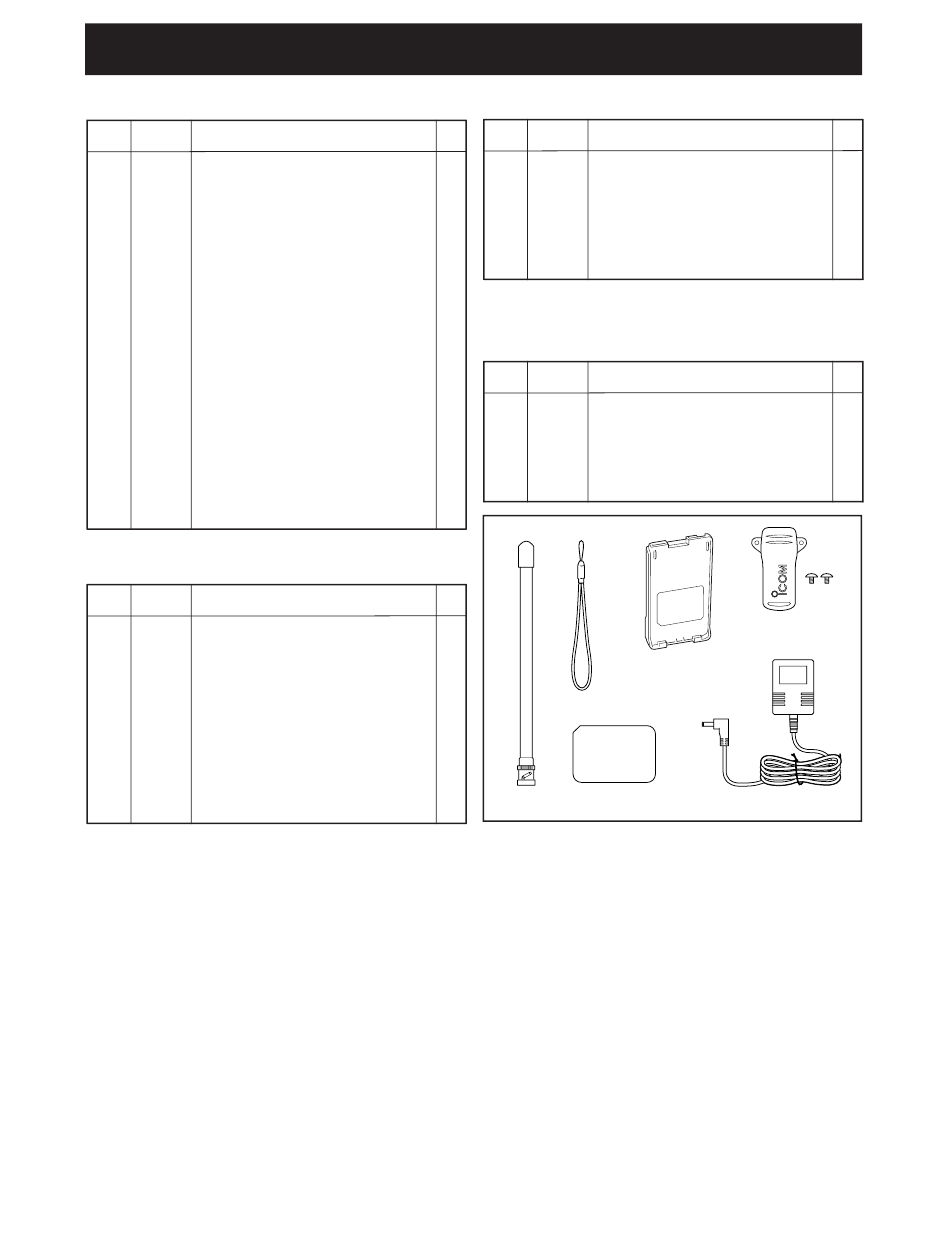

[ACCESSORIES]
REF ORDER
NO. NO.
EP1 OptionalProduct BP-226 EXP
BP-227 [USA-2], [EUR-1], [UK], [KOR], [TPE-2], [EXP-2]
OptionalProduct
EP2 OptionalProduct BC-167D
OptionalProduct BC-167A
EP3 FA-B2E
OptionalProduct
EP5 6910018620 BLACK HANDY STRAP
MP1 OptionalProduct MB-98
MP2 8930051290 2251 OPTION SHEET
EP5
MP2
EP3
DESCRIPTION QTY.
1
1
1
1
1
1
1
1
1
1
DESCRIPTION QTY.
[USA], [EUR], [TPE], [THA], [EXP] 1
1
[UK],[EXP-2] 1
[USA-2], [TPE-2] 1
1
1
1
1
MP1
EP1
EP2
