Valcom VIP-148AL-SA Syn-Apps Manual page 4

SIDE
SIDE
RJ45 NETWORK
CONNECTION
STANDARD
RJ45 PATCH CABLE
RJ45 NETWORK
CONNECTION
RJ-45
Typical 568B
RJ-45 Jack
CAT 3/5/6
*The Maximum Recommended Distance
From the IP Link to the Horn is 350'.
(T568B)

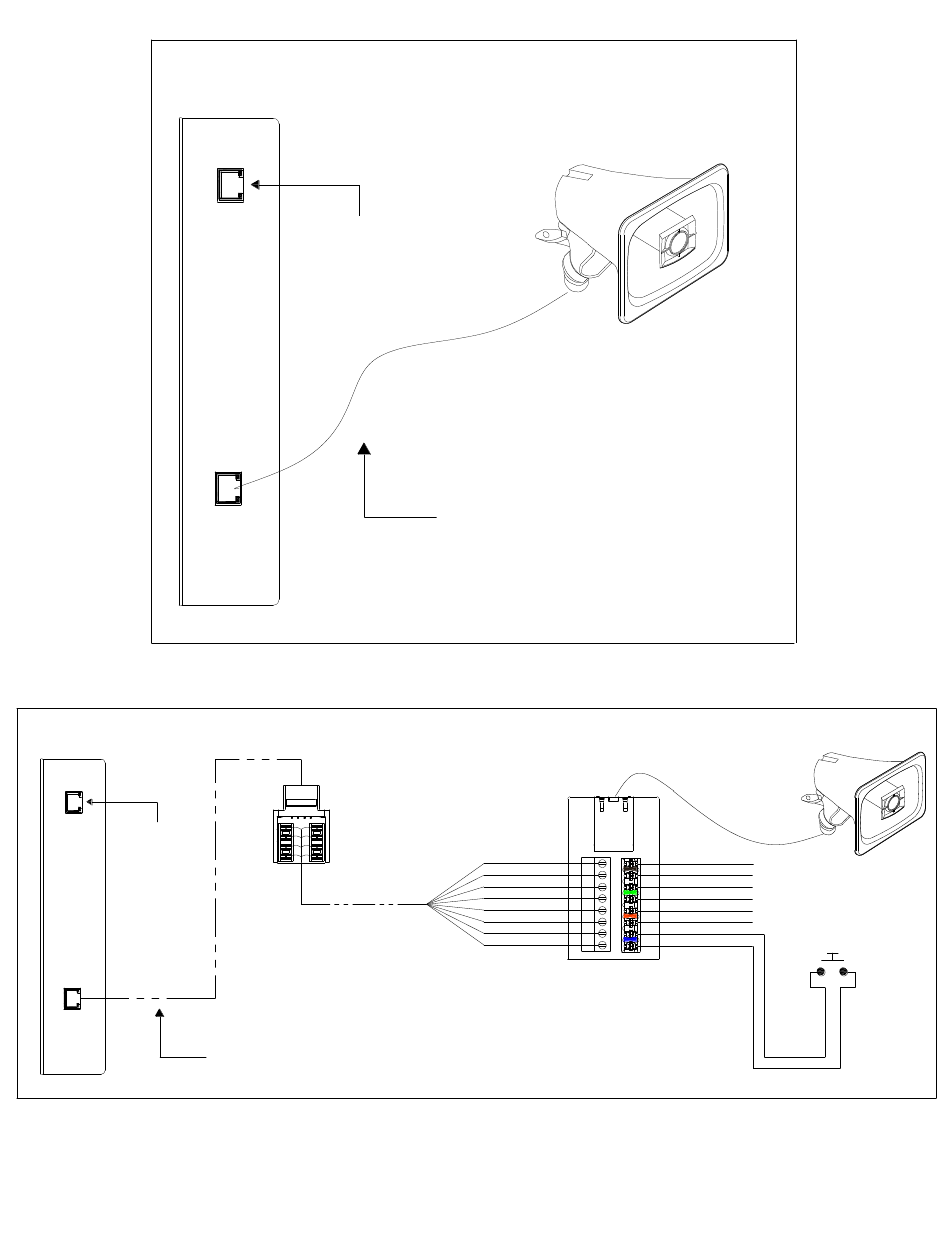

Figure 4. Signal Connections
HORN
HORN SIGNAL CONNECTION
RJ45
BROWN
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
WHITE/ORANGE
BLUE
WHITE/BLUE
VM-186
4
BROWN
WHITE/BROWN
GREEN
WHITE/GREEN
ORANGE
CALL IN SWITCH
WHITE/ORANGE
NORMAL OPEN
BLUE
MOMENTARY CLOSED
WHITE/BLUE
BLUE
947565
HORN
(OPTIONAL)
