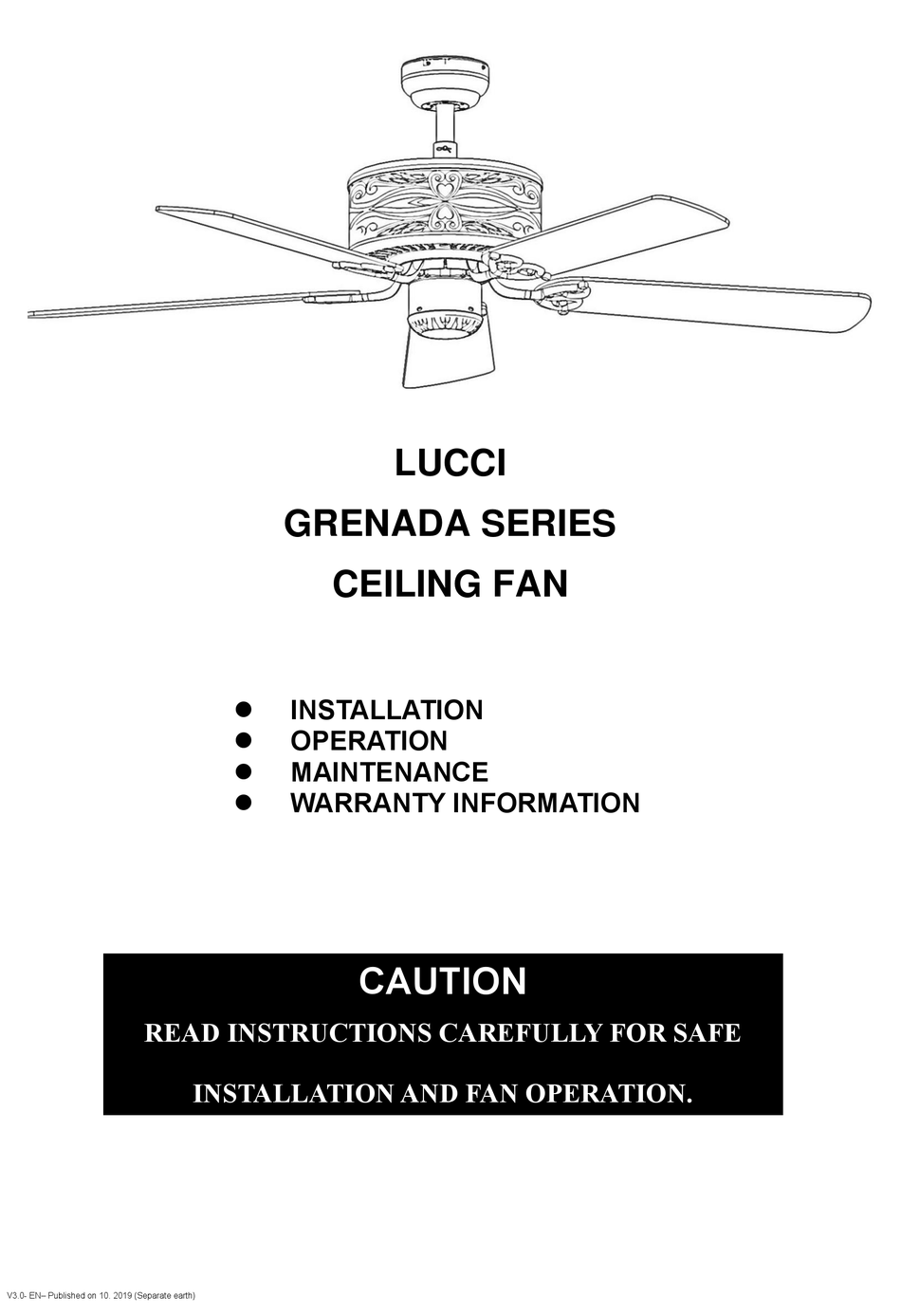

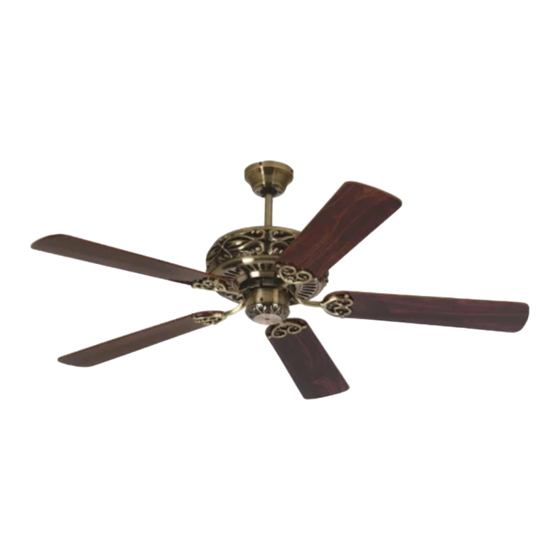

- Page 1 LUCCI GRENADA SERIES CEILING FAN ⚫ INSTALLATION ⚫ OPERATION MAINTENANCE ⚫ ⚫ WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V3.0- EN– Published on 10. 2019 (Separate earth)
-
Page 2: Safety Precautions
Grenada Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. SAFETY PRECAUTIONS In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given... - Page 3 Grenada Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Before Installation
Grenada Installation Instructions BEFORE INSTALLATION • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Grenada Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls. • Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with the two long screws provided. - Page 6 Grenada Installation Instructions ASSEMBLYING THE FAN Install the down rod to the motor (fig. 4) 1. Loosen the hanger ball via the set screw. (see Fig.4) 2. Feed the down rod through the canopy. 3. Insert the motor wires through the down rod, and then secure the hanger ball back to the down rod.
- Page 7 Grenada Installation Instructions Hanging the fan (Fig. 7) Lift the fan assembly onto the mounting bracket. Ensure the slot (A) of the hanger ball is positioned on key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.7) Fig.
- Page 8 Grenada Installation Instructions ELECTRICAL WIRING THE FAN WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan.
- Page 9 Grenada Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold seperately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 10), (Fig.11 and Fig.12) 1/ Remote without quick connectors (manual wiring) Fig.
-
Page 10: Finishing The Installation
Grenada Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 11: After Installation
Grenada Installation Instructions REVERSE FUNCTION Your ceiling fan can operate either in fan mode or reverse fan mode. SUMMER Mode: The reverse switch should be in the SUMMER position to rotate the fan in an anticlockwise direction. The airflow will be directed downwards, for cooling in summer. WINTER Mode: The reverse switch should be in the WINTER position to rotate the fan in a clockwise direction. -
Page 12: Care And Cleaning
To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners. • The motor has a permanently lubricated ball bearing so there is no need to oil. TECHNICAL INFORMATION Fan Models GRENADA SERIES – SKU# 210283, 210286, 210287 Rated Voltage 220-240V~ 50Hz Rated Wattage (Motor) Rated wattage (Lamp) - Page 13 Grenada Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 14 Grenada Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
