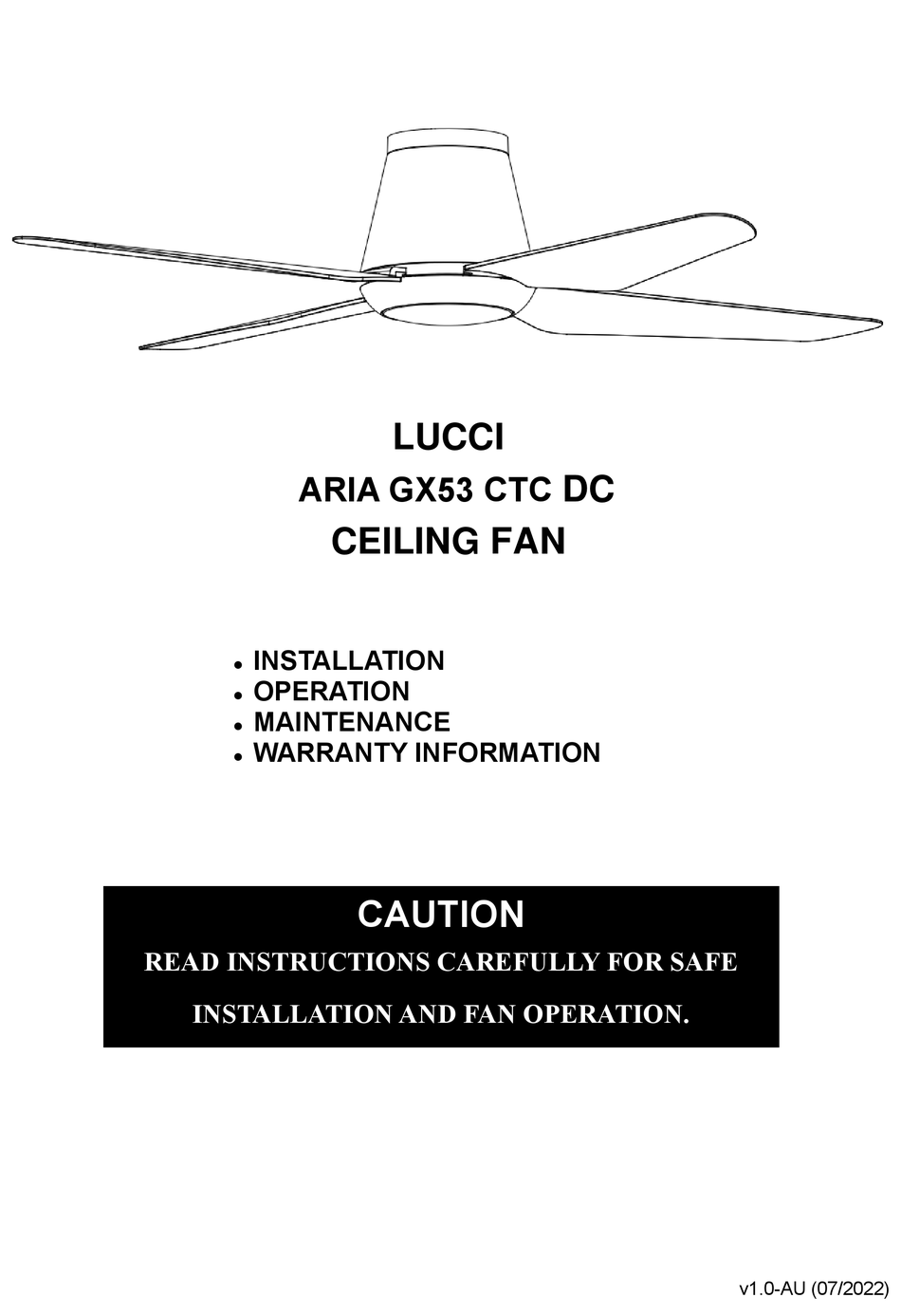

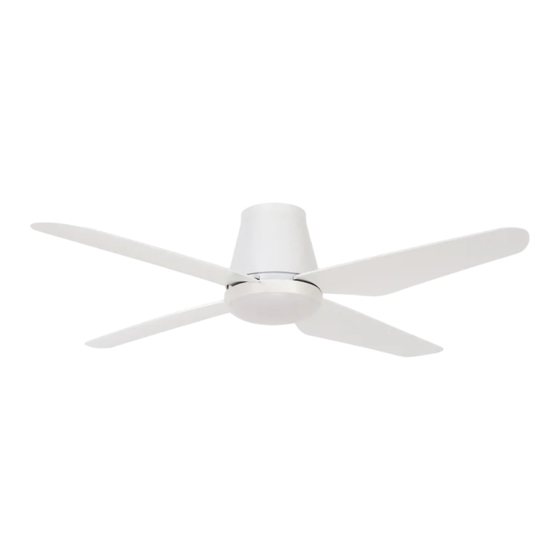

- Page 1 LUCCI ARIA GX53 CTC CEILING FAN INSTALLATION ⚫ OPERATION ⚫ MAINTENANCE ⚫ WARRANTY INFORMATION ⚫ CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v1.0-AU (07/2022)
-
Page 2: Safety Precautions
ARIA GX53 CTC DC Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 ARIA GX53 CTC DC Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
ARIA GX53 CTC DC Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth non-scratch surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
ARIA GX53 CTC DC Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 ARIA GX53 CTC DC Installation Instructions HANGING THE FAN TO MOTOR ASSEMBLY • Install the motor housing (1) onto the motor assembly. (Fig.3) • Lift the fan assembly up to the mounting bracket. Hang the fan assembly onto the J-hook (2) of the mounting bracket.
- Page 7 ARIA GX53 CTC DC Installation Instructions Fig. 5 From mains supply to mounting bracket terminal block: (Fig. 5) 1. Connect the live supply wire to the “L” terminal of the terminal block on the mounting bracket. 2. Connect the neutral supply wire to “N” terminal of the terminal block on the mounting bracket.
- Page 8 ARIA GX53 CTC DC Installation Instructions INSTALL THE FAN ASSEMBLY TO THE MOUNTING BRACKET • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plugs. NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting...
- Page 9 ARIA GX53 CTC DC Installation Instructions INSTALLING THE FAN BLADE AND LIGHT KIT BLADE ATTACHMENT (Fig.7) 1. Before installing the blades, remove the blade screws and flat washers from the bottom of fan motor. 2. Align the 2 holes on the blade with the 2 holes on the rotating member of fan motor assembly and using the 2 blade screws and flat washers in step 1, to secure the blade to the fan motor assembly.
- Page 10 ARIA GX53 CTC DC Installation Instructions INSTALLATION OF LAMP (Fig. 9) • Install the lamp on the fan assembly then secure it by turning clockwise. (Fig. 9) Fig. 9 INSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 10) 1. Locate a suitable wall to fix the remote control holder with the 2 screws. (Fig.10a).
-
Page 11: Using Your Ceiling Fan
ARIA GX53 CTC DC Installation Instructions USING YOUR CEILING FAN NOTE: The remote and receiver will need to be paired after the installation of the ceiling fan. NOTE: When two or more ceiling fans are installed in one location, please refer to the instruction on the next page. - Page 12 ARIA GX53 CTC DC Installation Instructions Remote / Receiver paring for Ceiling fan 2: • Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2. • Install the batteries into the remote. Please make sure the polarity of the battery is correct.
- Page 13 ARIA GX53 CTC DC Installation Instructions REPAIRING THE REMOTE & RECEIVER PAIRING – WHEN 1 CEILING FAN IS INSTALLED • If the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver must be repaired.
- Page 14 ARIA GX53 CTC DC Installation Instructions CARE & CLEANING NOTE: Always turn OFF the power at the mains switch before performing any maintenance or attempting to clean your fan. • Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish.
- Page 15 ARIA GX53 CTC DC Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 16 ARIA GX53 CTC DC Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI FAN WARRANTY CONTACT INFORMATION: Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims Email: warranty@beaconlighting.com.au Lucci Fan Warranty Hotline: (Free Call) 1800 602 243 Complete and retain this form for your personal records and warranty purposes.
