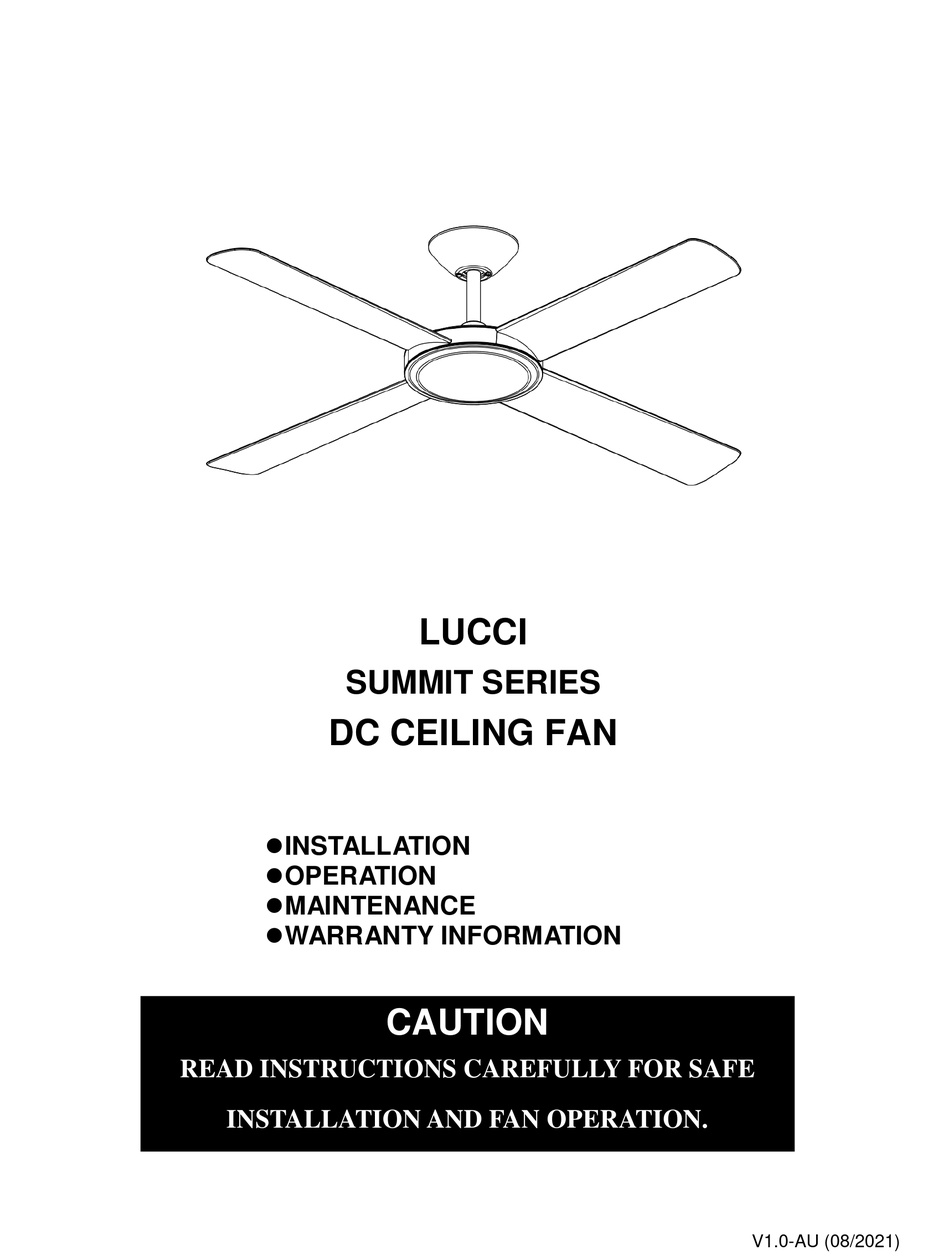

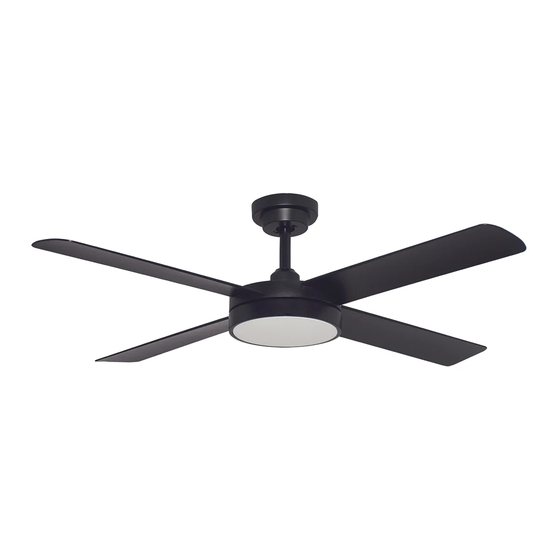

- Page 1 LUCCI SUMMIT SERIES DC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-AU (08/2021)
-
Page 2: Safety Precautions
Airfusion Summit Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy-saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient while still maintaining high volume air movement and silent operation. - Page 3 Airfusion Summit Installation Instructions with the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion Summit Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure no components are missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
Airfusion Summit Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wirecutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 Airfusion Summit Installation Instructions INSTALLATION OF BLADE (Fig.3) 1. Unscrew the 4 screws from the cover of the fan blade and lift the blade cover; (Fig.3.1) 2. Install the fan blades onto the motor assembly; (Fig.3.2) 3. Install the cover back to the motor assembly by tightening the 4 screws. (Fig.3.3) Fig.
- Page 7 Airfusion Summit Installation Instructions Fig. 3.3 6 | P a g e...
- Page 8 Airfusion Summit Installation Instructions HANGING OF THE FAN (Fig.4) 1. Place the hanger onto the mounting bracket. Ensure the key slot of the hanger ball is positioned on the key pin of the mounting bracket to prevent the fan from rotating when in operation; (Fig.4.1) 2.
- Page 9 Airfusion Summit Installation Instructions WIRING DIAGRAM (FIG. 5) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL-POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN.
-
Page 10: Finishing The Installation
Airfusion Summit Installation Instructions FINISHING THE INSTALLATION INSTALLATION OF THE CANOPY (Fig.6) 1. Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. 2. -
Page 11: Using Your Ceiling Fan
Airfusion Summit Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL (Fig.7) (1) Fan Off (2) Light On/Off and selection of colour temperature (*No function for model without light) (3) Forward/Reverse (4) Speed control of the fan (*Fan can be turned on by pressing any speed control buttons) (5) Dimming of the light (*No function for model without light) - Page 12 Airfusion Summit Installation Instructions • Turn ON and change the speed of the ceiling fan via the remote to check the operation and successful pairing. PAIRING REMOTE AND RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE LOCATION When two or more ceiling fans are located near each other, you may desire to have the remote/receiver for each fan paired so that the operation of one fan does not affect the operation of the other fans.
- Page 13 Airfusion Summit Installation Instructions REPAIRING THE FAN RECEIVER & REMOTE PAIRING Should the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver must be repaired. Below are the operating symptoms and methods to repair the pairing of the DC ceiling fan remote and receiver.
- Page 14 Airfusion Summit Installation Instructions WALL CONTROLLER Alternatively, the ceiling fan can be operated by the provided wall controller as below. Install the wall controller then connect the L/N supply wire to its L/N terminal. NOTE: The wall controller is worked as a transmitter and is linked to the receiver wirelessly. SPEED –...
- Page 15 Airfusion Summit Installation Instructions CHANGING AN EXTENSION ROD NOTE: When using extension rods, the lower edge of the fan blades must be more than 2.1m above floor level. Note: Extension Rod – Supplied Separately REPLACEMENT OF AN EXTENSION ROD: 1. Uninstall the ball joint, canopy, canopy bottom cover & the down rod joint cover from the fan assembly; (Figure 8.1, 8.2) 2.
- Page 16 Airfusion Summit Installation Instructions Fig. 8.2 15 | P a g e...
- Page 17 Airfusion Summit Installation Instructions Extension cable provided with extension rod Fig. 8.3 16 | P a g e...
-
Page 18: After Installation
Airfusion Summit Installation Instructions AFTER INSTALLATION NOTE: Ceiling fans tend to move during operation as they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling, it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. - Page 19 Airfusion Summit Installation Instructions SAFETY PRECAUTIONS FOR BATTERY WARNING – Keep new and used batteries away from children. CAUTION – Do not ingest battery—Chemical burn hazard. Always use 2 x AAA battery type with this ceiling fan remote controller. Ensure the batteries are inserted with the correct polarity. The ceiling fan must be disconnected from the supply mains to prevent false operation during battery insertion or replacement.
- Page 20 Airfusion Summit Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service is required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9 am & 5 pm (EST) Monday to Friday.
- Page 21 Airfusion Summit Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATE CODE Sticker here) PO NUMBER or DATE CODE ……………………………………………………………………………. DATE OF PURCHASE………………………………………………………………………………….…...
