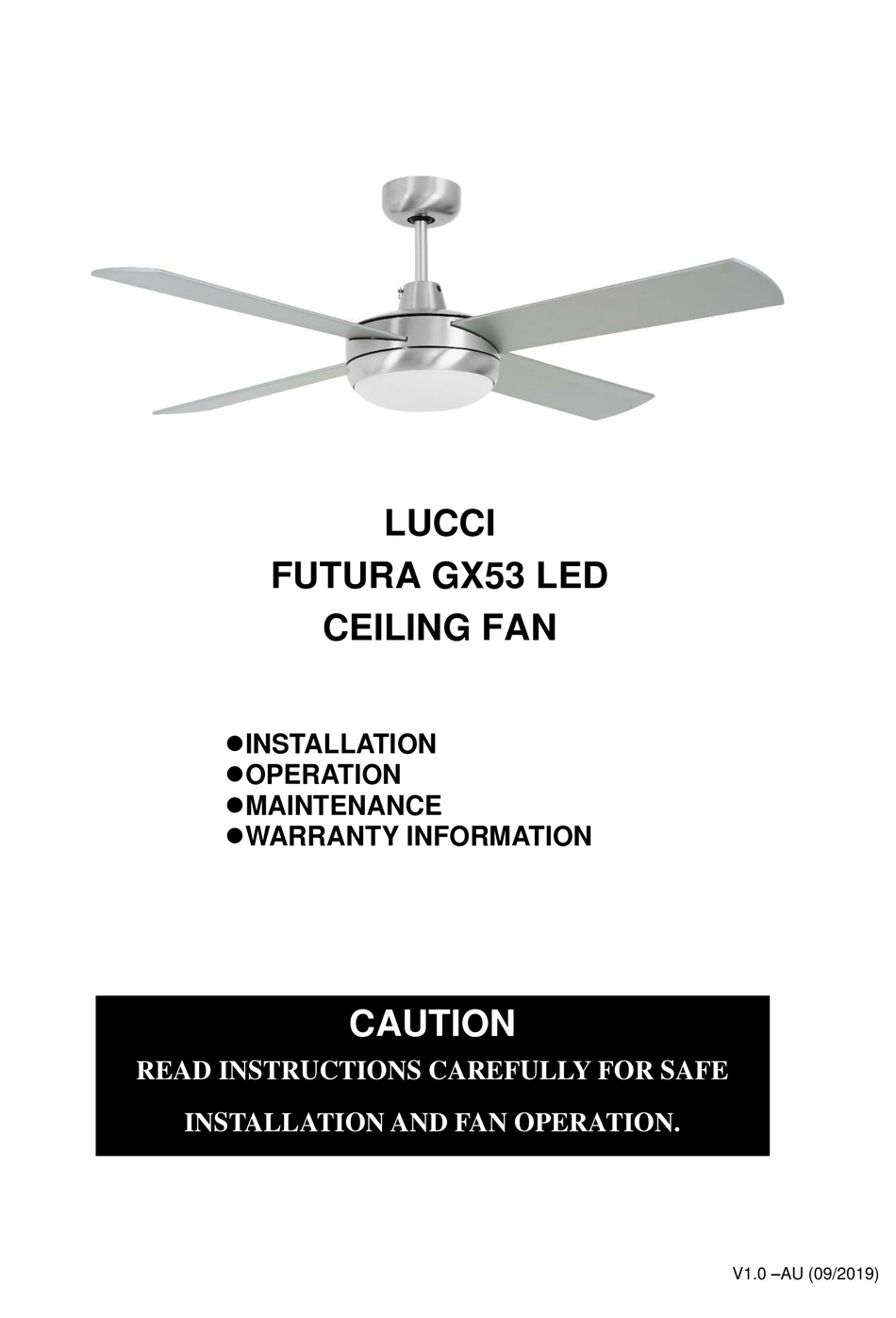

- Page 1 LUCCI FUTURA GX53 LED CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0 –AU (09/2019)
-
Page 2: Safety Precautions
Futura GX53 Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 Futura GX53 Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Futura GX53 Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Futura GX53 Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with the two long screws provided. -
Page 6: Installing The Fan
Futura GX53 Installation Instructions INSTALLING THE FAN 1. Remove the screw (2) and turn the light plate (1) anti-clockwise to remove it from the main body. (Fig.4) Fig. 4 ⚫ Remove the 3 screws from the mounting holes of the blade. Insert the blade into the slot of rotating member of fan motor assembly and align the 3 mounting holes on the blade to the 3 mounting holes on the rotating member of fan motor assembly. -
Page 7: Hanging The Fan
Futura GX53 Installation Instructions 3. Install the light plate (1) back to the fan assembly. Align the two slot screws with the keyhole slots, then turn clockwise to lock. Secure the light plate by tightening the screw (2). (Fig.6) Fig. 6 4. -
Page 8: Electrical Wiring Diagram
Futura GX53 Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. USE WITH WALL SWITCH WIRING DIAGRAM: Ensure the motor earth wire is connected to the single earthing terminal block “2”... - Page 9 Futura GX53 Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 9), for (Fig.10 and Fig.11) 1/ Remote without quick connectors (manual wiring) Fig.
-
Page 10: Finishing The Installation
Futura GX53 Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 11: After Installation
Futura GX53 Installation Instructions REVERSING SWITCH (Fig. 14) Your ceiling fan can operate in either summer or winter mode. SUMMER Mode: The reverse switch shall be in the SUMMER position to make the fan rotate in an anticlockwise direction. The airflow will be directed downwards, for cooling in summer. WINTER Mode: The reverse switch shall be in the WINTER position to make the fan rotate in a clockwise direction. -
Page 12: Care And Cleaning
Futura GX53 Installation Instructions CARE & CLEANING NOTE: Always turn OFF the power at the mains switch before performing any maintenance or attempting to clean your fan. • Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish. - Page 13 Futura GX53 Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &...
- Page 14 Futura GX53 Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ……………………………………………………… DATE OF PURCHASE………………………………………………………………...
