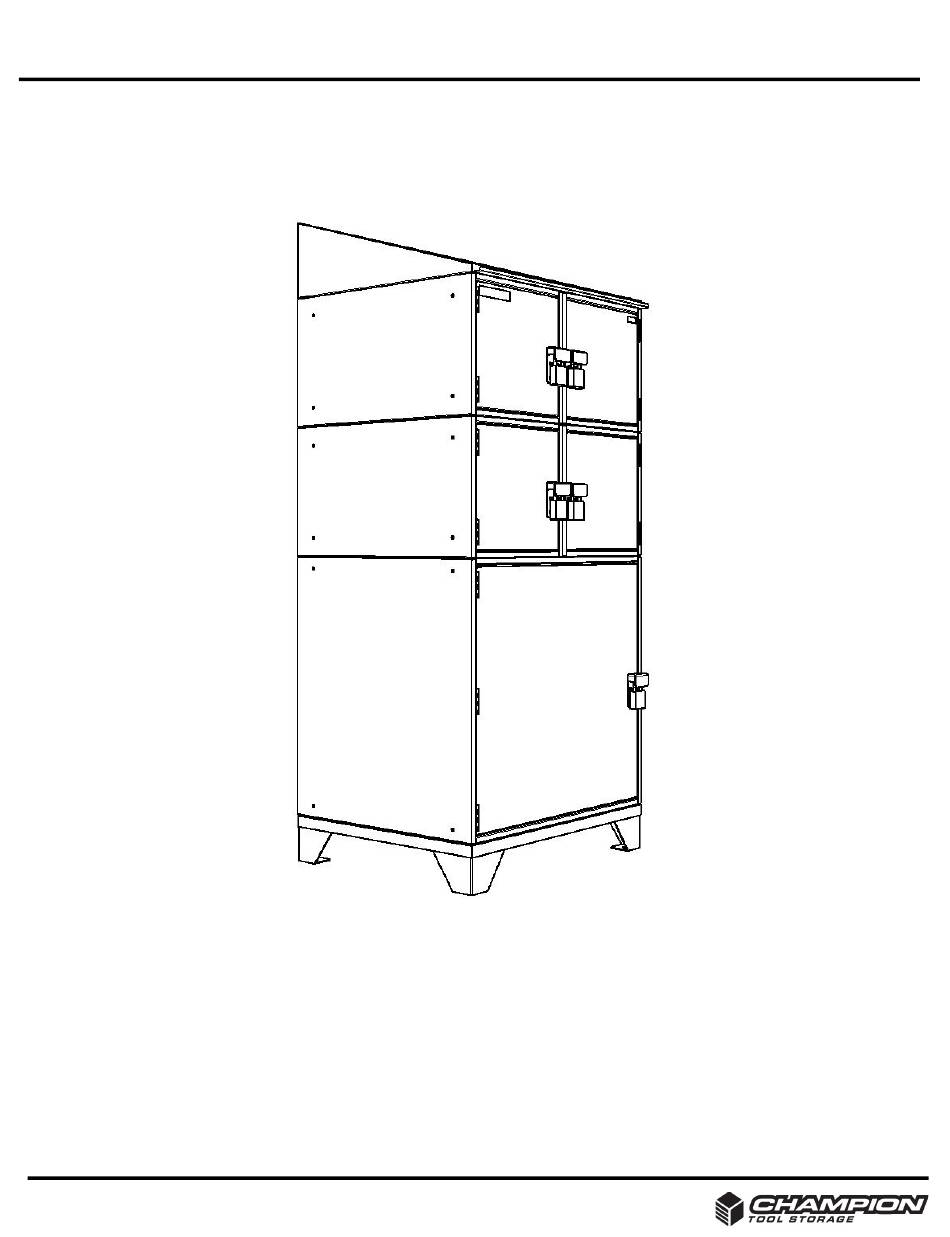

PROPER USE AND INSTALLATION FOR CHAMPION SVPRO SERIES
The following instructions will provide you with a guide for installation and usage
for the SVPRO Series cabinets. If at any time you need guidance or help, please
do not hesitate to call us. Thanks again for choosing Champion Tool Storage.
QUESTIONS
Champion Tool Storage
3070 Lower Mill Dr.
Hood River Oregon 97031
W: www.championbuilt.com
E-mail: info@championbuilt.com
Phone: 866-391-4200
8 AM - 5PM, PST, Monday-Friday
THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY
PART NO. 1000629
Advertisement
Related Manuals for Champion SVPRO Series
Summary of Contents for Champion SVPRO Series
- Page 1 The following instructions will provide you with a guide for installation and usage for the SVPRO Series cabinets. If at any time you need guidance or help, please do not hesitate to call us. Thanks again for choosing Champion Tool Storage.
-
Page 2: Table Of Contents
Table Of Contants Before You Begin Installation Site Prep Installation Proper Use Lock Use Proper Care / Safety Warranty THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629... -
Page 3: Before You Begin
Before You Begin Check your inventory to be sure you received your entire order. If there are any missing or damaged parts, contact Champion Customer Service at 541- 386-7700 Only use the provided hardware during assembly. Read and understand the entire installation instructions prior to beginning the install. -
Page 4: Installation Site Prep
Site Prep Before installing the units, make sure your site is ready. A level concrete pad is recommended that is 6" larger in width and 6" larger in depth of the total number of cabinets being installed. See below for recommended pad size for one, two, and three units. - Page 5 Site Prep Double Locker Pad THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629...
- Page 6 Site Prep Triple Locker Pad THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629...
-
Page 7: Installation
Installation Use a forklift or pallet jack to move the following Models into place, SVP2, SVP5, and SVP8. Remove all packaging. Set the unit on the pad and align the holes over the studs in the Concrete Pad. See Step 5 for installation instructions for the SVP3. Note, All locker doors must be locked while moving. - Page 8 Installation Remove nuts from the (4) studs. Install the Slope Top. Open Door or Doors on top units and place slope top on the aligning holes. Install locking nuts and secure to cabinet. THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629...
- Page 9 Installation Ganging multiple units. Punch knock outs as shown in Detail A. Use touch up paint to cover bare metal after knock outs are removed. Postion the cabinets in place with the doors in the open position. Ganging Hardware Kit requirred, 1 per pair of units ganged. Part #7001228 Repeat as needed for multiple units.
- Page 10 Installation Installation of the SVP3 Tilt the unight to the upright position using the 4 eyelets at the top of the unit with a forklift and sling/chain. The operator should be a certified forlift operator. Lift the unit from the shipping pallet and position on the pad. Secure the unit to the pad, see Step 2.
-
Page 11: Proper Use
Proper Use 750lb 750lb Max load per locker bay. Do not drop items into drawers, damage may occur. Do not use shelves as a step, or seat, injury or damage may occur. THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY PART NO. 1000629... -
Page 12: Lock Use
Doing so may cause personal injury.. Champion at buyer’s expense or provide transportation charges prepaid. Champion’s sole obligation under its warranty shall be, at its option, to repair, replace or refund the price of any product thereof which is proved to violate such warranty.In no event shall Champion be liable to the buyer for special,...
