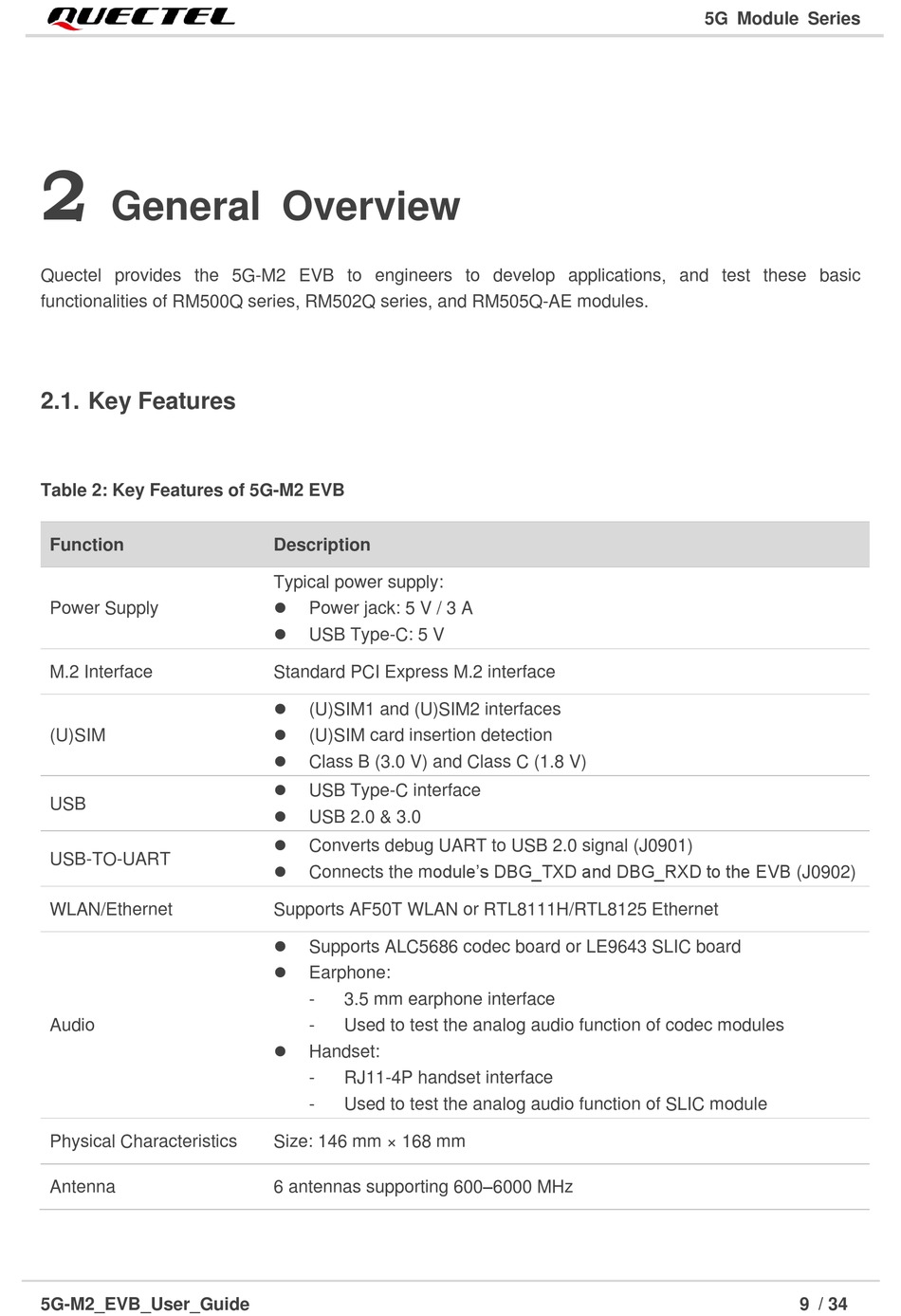

General Overview

Quectel provides the 5G-M2 EVB to engineers to develop applications, and test these basic
functionalities of RM500Q series, RM502Q series, and RM505Q-AE modules.

2.1. Key Features

Table 2: Key Features of 5G-M2 EVB
Function
Power Supply
M.2 Interface
(U)SIM
USB
USB-TO-UART
WLAN/Ethernet
Audio
Physical Characteristics
Antenna
5G-M2_EVB_User_Guide
Description
Typical power supply:
⚫
Power jack: 5 V / 3 A
⚫
USB Type-C: 5 V
Standard PCI Express M.2 interface
⚫
(U)SIM1 and (U)SIM2 interfaces
⚫
(U)SIM card insertion detection
⚫
Class B (3.0 V) and Class C (1.8 V)
⚫
USB Type-C interface
⚫
USB 2.0 & 3.0
⚫
Converts debug UART to USB 2.0 signal (J0901)
⚫ Connects the module's DBG_TXD and DBG_RXD to the EVB (J0902)
Supports AF50T WLAN or RTL8111H/RTL8125 Ethernet
⚫
Supports ALC5686 codec board or LE9643 SLIC board
⚫
Earphone:
- 3.5 mm earphone interface
- Used to test the analog audio function of codec modules
⚫
Handset:
- RJ11-4P handset interface
- Used to test the analog audio function of SLIC module
Size: 146 mm × 168 mm
6 antennas supporting 600–6000 MHz
