1 Description

The FIK-RA1000R (red) is an optional (4x20) LED remote annunciator as shown in Figure 1. The FIK-RA1000R can be surface or flush-
mounted.

1.1 Compatibility

The RA-1000 is used with compatible FACPs. See the FACP Installation Manual for more information.

1.2 Specifications

:
Parameter
Operating Voltage:
Standby:
Current:
Alarm:
Operating Temperature:

2 Mounting

The annunciator can be flush- or surface-mounted. Figure 2 shows the annunciator dimensions.

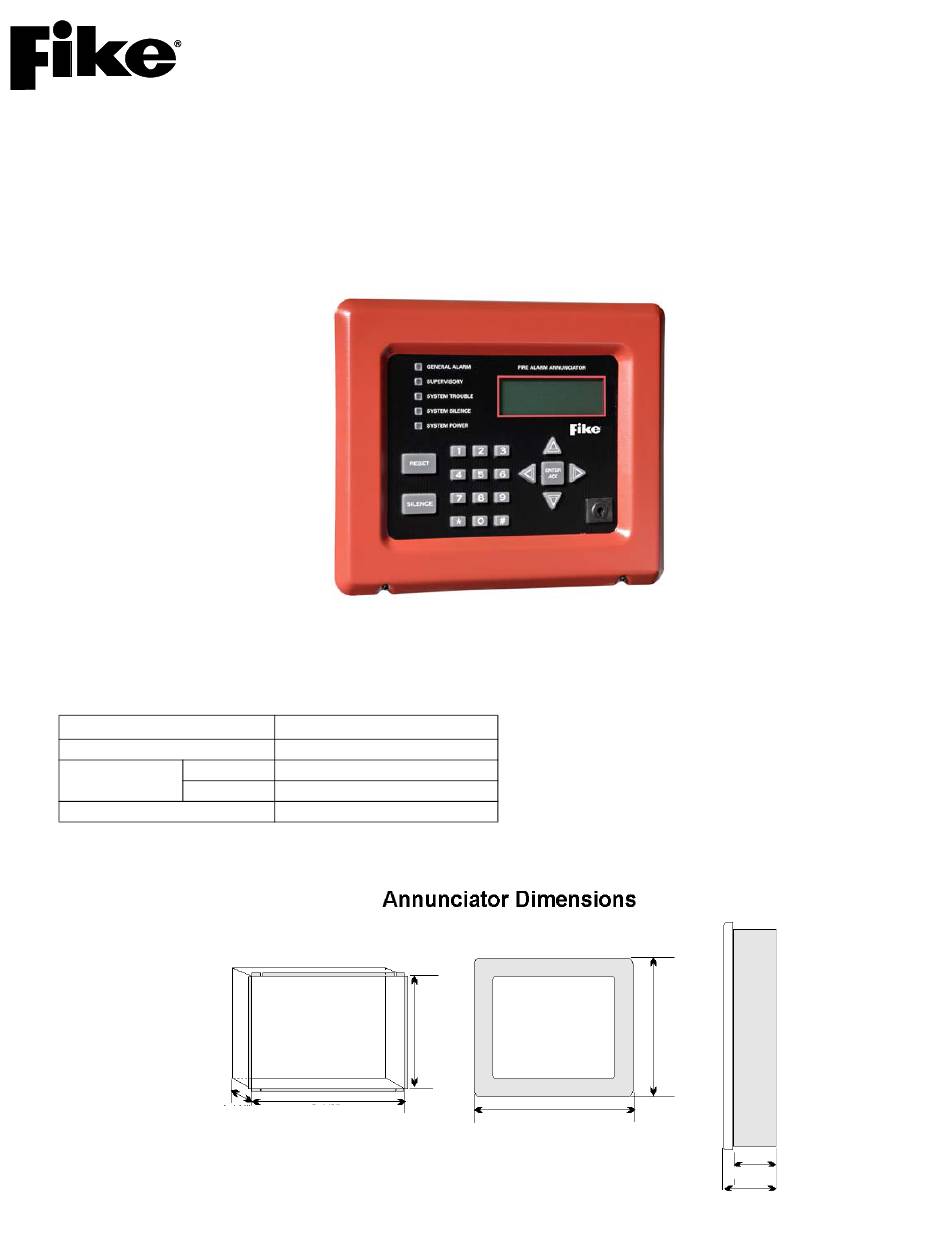

Figure 1 Model FIK-RA1000R Remote Annunciator
Value
24VDC
25mA
50mA
0° to 49° C (32° to 120° F)
Annunciator Backbox
8-1/8"
1-1/4"
Figure 2 Annunciator Dimensions
FIK-RA1000R Remote Annunciator
Product Installation Document
PN LS10258-001FK-E:A 03/04/2021 ECN: 151526
Bezel (escutcheon plate)
6-7/16"
9-1/8"
Side View
7-3/8"
1-1/4"
1-9/16"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIK-RA1000R and is the answer not in the manual?

Questions and answers

Summary of Contents for Fike FIK-RA1000R

  • Page 1 704 SW 10th Street Blue Springs, MO 64015 www.fike.com 1 Description The FIK-RA1000R (red) is an optional (4x20) LED remote annunciator as shown in Figure 1. The FIK-RA1000R can be surface or flush- mounted. Figure 1 Model FIK-RA1000R Remote Annunciator 1.1 Compatibility The RA-1000 is used with compatible FACPs.
  • Page 2 Connect the FIK-RA1000R to the panel. (See Figure 5). Use the DIP switches on the back of the FIK-RA1000R to assign an ID number. Add the FIK-RA1000R module to the System through programming. JumpStart® will automatically add the module. Refer to the FACP manual for more information.
  • Page 3 3 Wiring Connections Wire the FIK-RA1000R to the FACP as Shown in Figure 5. supervised power-limited Figure 5 SBUS Connection FIK-RA1000R Product Installation Instructions — P/N LS10258-001FK-E:A 03/04/2021...
