Fike FIK-IR3 Quick Start Manual

FIKE FLAME DETECTOR SETUP
1. General
The purpose of this guide is to outline how to perform the
basic setup of the Fike Flame detectors listed below.


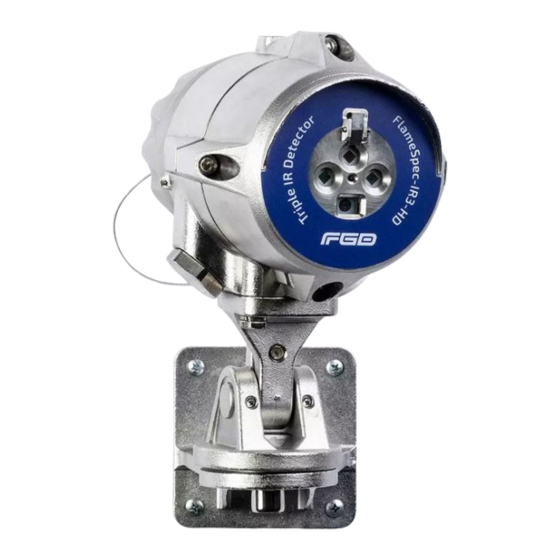

FIK‐IR3 Flame Detector

FIK‐IR3‐H2 Triple IR Hydrogen Flame Detector

FIK‐IR3‐H2‐HD Triple IR Hydrogen Flame Detector

FIK‐IR3‐HD Triple IR Flame Detector

FIK‐UV‐IR Flame Detector

FIK‐UV‐IR‐HD Flame Detector

FIK‐UV‐IR‐F Flame Detector

FIK‐UV‐IR‐F‐HD Flame Detector
Detector setup is best accomplished before the installation
of the detector using the methods outlined in this guide.
2. Required Hardware and Software
1. Fike flame detector
2. Computer (desktop or laptop)
1,2
3. Ethernet switch
4. 24‐volt power supply
5. Ethernet cable, CAT5
6. USB to RS‐485 converter, P/N FIK‐USB/RS485
2
7. RS‐485 cable
8. 24 VDC power supply cable, 12‐20AWG (2.5‐
2 2
0.35mm )
1
Available for purchase from Fike.
2
Supplied by others.
3
Can use Fike NVR or Server.
Go to www.fg‐detection.com/communicator to download
the latest version of the Communicator software. Contact
Fike at 1‐800‐979‐3453 for the password.
3. Detector Connections
Connections to the flame detector for configuration and
setup will vary depending upon whether the detector is
capable of providing a video output. To configure a
detector not equipped with video output capabilities,
simply connect the detector to the host PC (desktop or
laptop) using RS‐485 cable and connect a 24 VDC power
source to the detector (Figure 1). A Fike USB to RS‐485
converter (sold separately) must be used to allow the RS‐
485 cable to be connected to the host PC's USB port. See
USB to RS‐485 Converter Wiring for details. See Table 1 for
detector terminal block wiring connections.
Doc. No. 06‐916 ● Rev. 1
1
2,3
2
2
1
Applicable to FIK‐IR3, FIK‐IR3‐H2, FIK‐UV‐IR and FIK‐UV‐IR‐F flame
detectors
Figure 1: Connections for flame detectors without video
output
To configure a detector equipped with video output
capabilities, the detector must be connected to the host PC
using CAT5 cable routed through an Ethernet switch (Figure
2). See Table 2 for detector terminal block wiring
connections.
Applicable to FIK‐IR3‐H2‐HD, FIK‐IR3‐HD, FIK‐UV‐IR‐HD, and FIK‐
UV‐IR‐F‐HD flame detectors
Figure 2: Connections for flame detectors with video
output
ISO 9001:2015 Certified
Quick Start Guide
Page 1 of 7
