Description

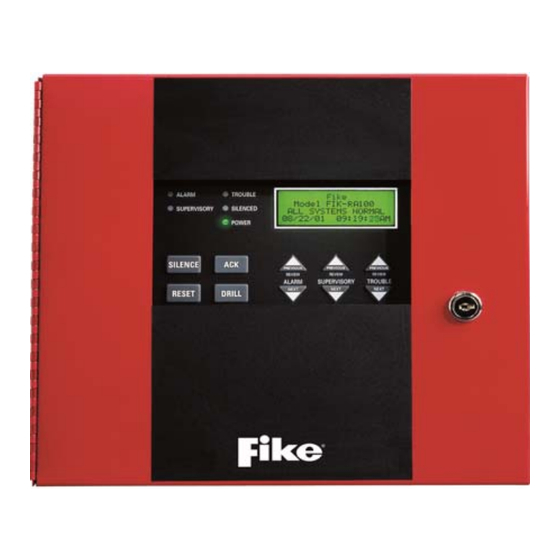

The FIK-RA100 is an optional (4x20) Remote Annunciator as shown in Figure 1. The FIK-RA100 can be surface or flush-mounted.
1.1 Compatibility
The FIK-RA100 is compatible with the Fike Series, Fire Alarm Control Panels (FACPs).
NOTE: For more information, see the FACP Installation Manual.
1.2 Specifications

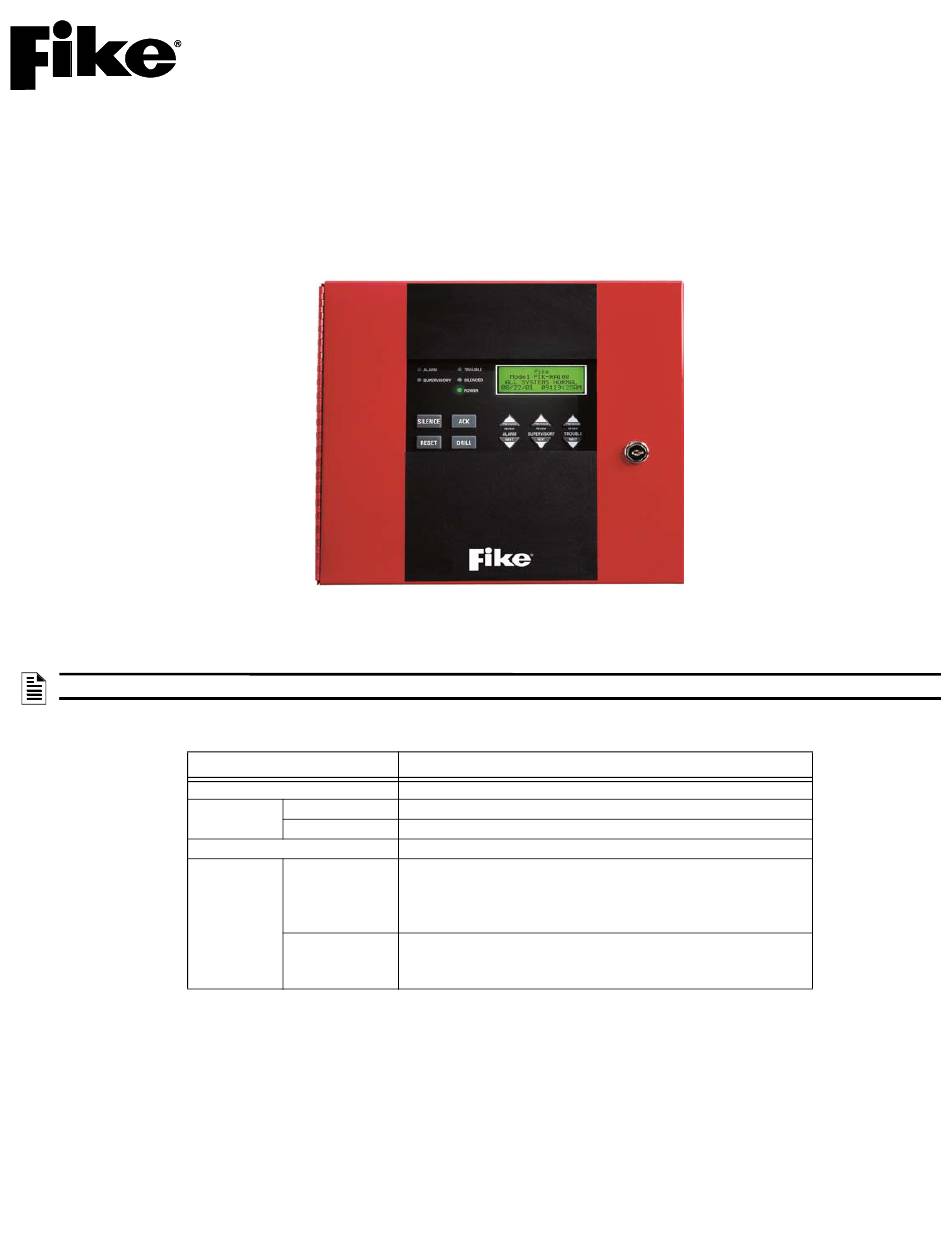

Figure 1 Model FIK-RA100 Remote Annunciator
Parameter
Operating Voltage:
Standby:
Current
Alarm:
Operating Temperature:
Flush Mount:
Dimensions:
Surface Mount:
Product Installation Document
PN LS10205-002FK-E:A 03/08/2021 ECN: 151526
24 VDC
20 mA
65 mA
0° to 49° C (32° to 120° F)
Overall:
12¼" W x 11½" H x 7/8" D
(31.1 cm x 29.2 cm x 2.2 cm)
See "Flush-Mounting" on page 2 for backbox dimensions.
Including trim ring:
12¼" W x 11½" H x 3" D
(31.1 cm x 29.2 cm x 7.6 cm)
Table 1 Specifications
FIK-RA100
Value
Advertisement
Table of Contents
Related Manuals for Fike FIK-RA100
Summary of Contents for Fike FIK-RA100
- Page 1 Blue Springs, MO 64015 www.fike.com Description The FIK-RA100 is an optional (4x20) Remote Annunciator as shown in Figure 1. The FIK-RA100 can be surface or flush-mounted. Figure 1 Model FIK-RA100 Remote Annunciator 1.1 Compatibility The FIK-RA100 is compatible with the Fike Series, Fire Alarm Control Panels (FACPs).
- Page 2 To flush-mount the FIK-RA100, refer to the following steps The backbox dimensions are 9-3/8”W x 8-3/8”H. Before you complete the FIK-RA100 installation, mount the backbox using any of the mounting holes as shown in Figure 2. mounting holes mounting holes Figure 2 Backbox Mounting Holes Remove the knockout holes as needed for wiring.
- Page 3 Mount the FIK-RA100 in the desired location. Connect the FIK-RA100 to the panel (see Figure 7). Use the DIP switches on the back of the FIK-RA100 to assign an ID number to the FIK-RA100. (Refer to the FACP Manuals in Section 1.1).
