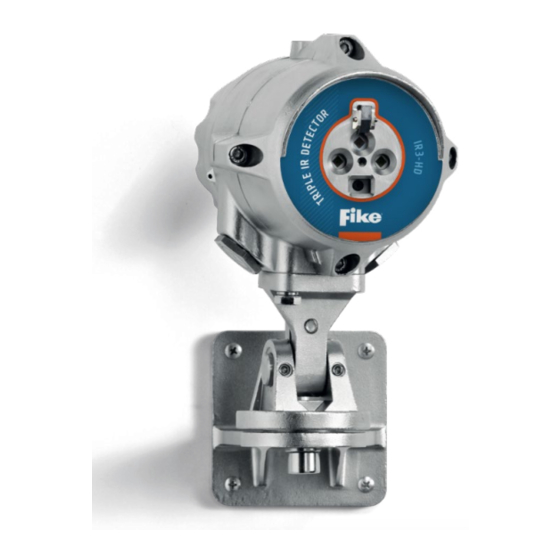

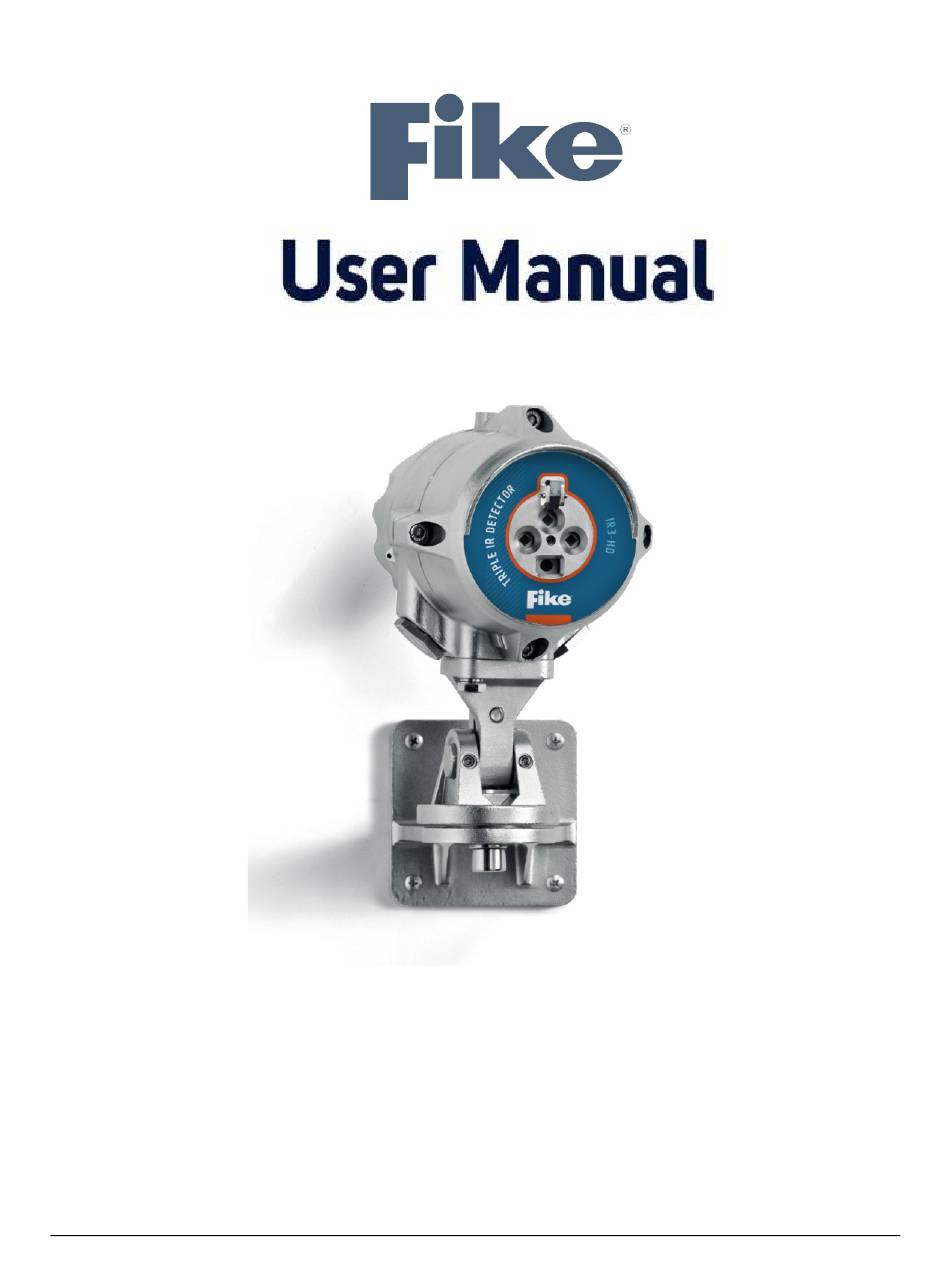

- Page 1 FIK-IR3-HD User Manual Doc. No. 06-932.02 FIK-IR3-HD Triple IR Flame Detector 704 SW 10th St, Blue Springs, MO 64014, USA T: (+1) 816-229-3405 www.Fike.com...
- Page 3 The Fike logo is a trademark of Fike Corporation, registered in the U.S. and other countries. Every effort has been made to ensure that the information in this manual is accurate. However, Fike is not responsible for any inaccuracy or omission in this document. The information in this document is subject to change without notice.
-
Page 4: Table Of Contents
4.2 Current Output (0-20mA) Wiring ..................... 12 4.3 RS-485 Communication Network..................... 13 5 Operation ......................... 15 5.1 Output Signals ........................15 5.2 Testing ........................... 15 5.3 Maintenance .......................... 16 5.4 Troubleshooting ........................17 For more information & Technical support: (800)-979-FIKE (3453) - Page 5 6.7 Label Figures .......................... 20 6.8 Approvals ..........................21 6.9 Electromagnetic Compatibility ....................21 7 Warranty ......................... 22 Appendix A Response Characteristics ................23 Response to different fire scenarios ................... 23 False Alarm Immunity ......................25 For more information & Technical support: (800)-979-FIKE (3453)
- Page 6 Table 1 - Detector Configuration Options ......................7 Table 2 - Sensitivity Levels ............................. 8 Table 3 - Terminal Connections ........................... 11 Table 4 - Output Signals ............................15 Table 5 - Troubleshooting Guide ......................... 17 For more information & Technical support: (800)-979-FIKE (3453)
-
Page 7: Introduction
FIK-IR3-HD User Manual Doc. No. 06-932.02 1. Introduction The FIK-IR3-HD will detect fires and explosions extremely fast allowing preventative action to be initiated rapidly and minimize the consequences! • Detection within 40 milliseconds of fireballs or explosions Standard fire is detected within 1.5 second from 100 ft. (30m) and 4 seconds from 230 ft. (70m). -
Page 8: Installation
If there are any obstructed lines of sight The field of view of the detectors • Environment Environmental conditions including but not limited to dust, snow or rain can reduce the • detectors’ sensitivity and require additional maintenance. For more information & Technical support: (800)-979-FIKE (3453) -
Page 9: Preparations For Installation
Tool Function Hex. KEY 6 mm Vertical alignment Hex. KEY 10 mm Horizontal alignment Wrench 13 mm Mounting the detector Flat Screwdriver 6 mm Ground screw connection Flat screwdriver 3.5mm Terminal connection For more information & Technical support: (800)-979-FIKE (3453) -
Page 10: Certification Instructions
(the preferred method). However, with a designated adapter the tilt mount can hold the detector from above. Other designated adapters may be used to connect the detector to some other vendors’ tilt mounts (useful when replacing an existing detector). For more information & Technical support: (800)-979-FIKE (3453) -
Page 11: Figure 1 - Tilt Mount Base - Rear View
The following drawing shows the location of the four holes for the screws and washers. Figure 1 - Tilt Mount Base - Rear View The following drawing is a side view of the tilt mount: Figure 2 - Tilt Mount Base - Side View For more information & Technical support: (800)-979-FIKE (3453) -
Page 12: Installing The Detector
Figure 3 - Detector on Tilt Mount - Side View ITEM ITEM NAME TILT MOUNT ASSEMBLY HOLDING PLATE MOUNTING HEX SCREWS M8 AND LOCK WASHERS HEX SOCKET LOCKING SCREW M8 HEX SOCKET LOCKING SCREW M12 For more information & Technical support: (800)-979-FIKE (3453) -
Page 13: Configuration Options
A standard fire is defined as a 1x1 ft (0.1 m ) N-heptane pan fire, with maximum wind speed of 6.5 ft/s (2 m/s). For more information & Technical support: (800)-979-FIKE (3453) -
Page 14: Ultra-Fast Detection
“post alarm video recording duration” setting). Digital video output is provided via ethernet and ONVIF Profile S protocol. Composite (analog) video output is provided in NTSC or PAL format, depending on the “Video analog output” setting. For more information & Technical support: (800)-979-FIKE (3453) -
Page 15: Modbus Address
Make sure to disable all fire extinguishing actions or alarms connected to the detector when the manual BIT is initiated and the “Manual BIT – Alarm Output Test” is enabled as the Manual BIT will set the 0-20mA terminal to 20mA and close the alarm relay. For more information & Technical support: (800)-979-FIKE (3453) -
Page 16: Detector Wiring
The sensor module in the front half of the detector contains no serviceable components and should never be opened. The terminal compartment at the back is the only part of the housing that should be opened by the user. For more information & Technical support: (800)-979-FIKE (3453) -
Page 17: Wiring Functions
Ethernet TX+ Ethernet TX- Ethernet communication, used for digital video (with ONVIF profile S protocol) Ethernet RX+ Ethernet RX- Shield This terminal should be left connected to the housing internal ground screw. For more information & Technical support: (800)-979-FIKE (3453) -
Page 18: Current Output (0-20Ma) Wiring
The following drawing shows how to wire the detector to act as a current sink isolated transmitter (4-wire connection): Power Return Detector Controller Return Figure 5 - Sink 4 - Wire Scheme For more information & Technical support: (800)-979-FIKE (3453) -
Page 19: Rs-485 Communication Network
(fault, alarm) and to initiate a BIT to each detector individually. The detector communicates via RS-485 with a Modbus RTU compatible protocol. For more details on the communication protocol, please consult with FIKE. For more information & Technical support: (800)-979-FIKE (3453) -
Page 20: Figure 8 - Rs-485 Networking
FIK-IR3-HD User Manual Doc. No. 06-932.02 Figure 8 - RS-485 Networking For more information & Technical support: (800)-979-FIKE (3453) -
Page 21: Operation
Doc. No. 06-932.02 5 Operation The FIK-IR3-HD is a triple-IR flame detector that includes a built-in high-definition video camera module. The video module automatically records video of alarm events, and can provide live video of the detection zone to a screen in the control room. -
Page 22: Maintenance
Where dust, dirt or moisture accumulates on the window, first clean the window with a soft optical cloth and detergent, and then rinse with a clean soft cloth, cotton swab, or tissue. For more information & Technical support: (800)-979-FIKE (3453) -
Page 23: Troubleshooting
Check video wiring and polarity. • Green Led constantly on Wiring or software problem Check wiring and polarity. • Fault Relay closed. No Check ONVIF Client software. • digital Video (through ethernet) For more information & Technical support: (800)-979-FIKE (3453) -
Page 24: Specifications
The FAULT relay will normally be energized and the contact will be closed during normal operation of the detector. The contact will be open at fault condition or low voltage. For more information & Technical support: (800)-979-FIKE (3453) -
Page 25: Mechanical Specifications
-67°F to + 185°F (-55°C to +85°C) Storage -67°F to + 185°F (-55°C to +85°C) • • Humidity: up to 99%, non-condensing • Ingress Protection: IP66 & 68; NEMA 4X & 6P For more information & Technical support: (800)-979-FIKE (3453) -
Page 26: Label Figures
FIK-IR3-HD User Manual Doc. No. 06-932.02 6.7 Label Figures 6.7.1 Ex db For more information & Technical support: (800)-979-FIKE (3453) -
Page 27: Approvals
The detector fully complies with EMC directive 2014/30/EU and protected against interference caused by RFI and EMI. The cables to the detector must be shielded and the detector must be grounded in order to comply to the EMC directive. For more information & Technical support: (800)-979-FIKE (3453) -
Page 28: Warranty
Doc. No. 06-932.02 7 Warranty FIKE CORPORATION agrees, to the extent allowed by applicable law, to transfer and pass through to Purchaser/Distributor the following original manufacturer’s warranty from FIRE & GAS DETECTION TECHNOLOGIES INC., manufacturer and supplier of the FlameSpec products: FIRE & GAS DETECTION TECHNOLOGIES INC. -
Page 29: Appendix A Response Characteristics
Size Distance ft (m) Average Response Time (Seconds) N-Heptane 1 x 1 ft 197 (60) 32” plume 148 (45) 1 x 1 ft 148 (45) Methanol 1 x 1 ft 125 (38) For more information & Technical support: (800)-979-FIKE (3453) - Page 30 Size Distance ft (m) Average Response Time (Seconds) N-Heptane 1 x 1 ft 49 (15) 32” plume 49 (15) 1 x 1 ft 39 (12) Methanol 1 x 1 ft 39 (12) For more information & Technical support: (800)-979-FIKE (3453)
-
Page 31: False Alarm Immunity
Projector led 2 (0.6) Solenoid bell 2 (0.6) soldering iron 2 (0.6) Electric Drill 2 (0.6) Contact us Fike Corporation 704 SW 10 Street, Blue Springs, MO 64014, USA Tel: (+1) 816-229-3405 www.Fike.com For more information & Technical support: (800)-979-FIKE (3453)
