Summary of Contents for Fike VESDA LaserCOMPACT VLC-500

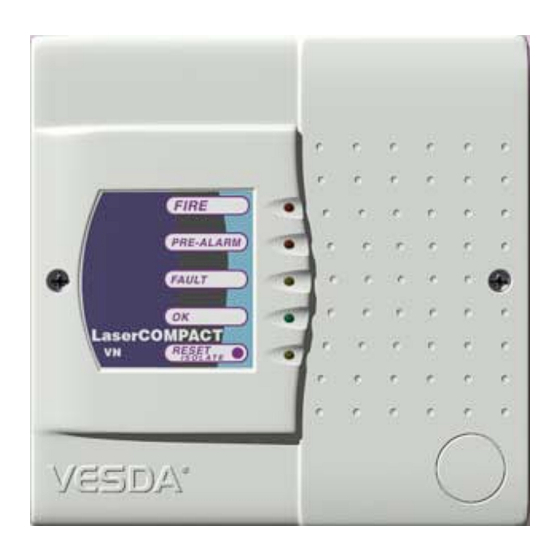

- Page 1 Installation Guide VESDA LaserCompact Fike p/n’s: 68-040 - Relay Only Model 68-041 - VESDA net Model Manual #06-189...
- Page 2 $ LaserCOMPACT ™ INSTALLATION GUIDE VLC-500 (Relays Only) Model VLC-505 (VESDAnet) Model March 2000 Version 1.1...
- Page 3 Publication history Release 1.1 March 2000 M0140_06 Copyright Information ©2000 Vision Systems – VESDA™. All Rights Reserved. VESDA is a registered trademark of Vision Products Pty Ltd. VESDA LaserPLUS, LaserSCANNER, LaserCOMPACT, AutoLearn, InfoWORKS, ASPIRE, VSM, VESDAnet and VESDAlink are trademarks of Vision Products Pty Ltd. Disclaimer In accordance with its policy of continuing product and system improvement, Vision Products reserves the right to change designs or specifications without obligation and without further notice...
-
Page 4: Table Of Contents
Contents Contents............................1 Introduction ........................2 Cabling Requirements ....................2 Power Cables ........................2 Data Cables........................2 Product Specifications ....................3 Product Dimensions ......................4 Battery Backup Calculations ..................6 Installation ........................7 Check Procedure Before Installation................7 Removal of Front Cover ....................8 Removal of Plastic Plugs for Cable Entry ................8 Securing the Mounting Bracket ..................8 Attaching the Detector onto the Bracket ................9 Connecting the Air Sampling Pipe .................10... -
Page 5: Introduction
9(6'$ Š LaserSCANNER Installation Guide 1. Introduction Scope of this Manual This manual is intended for installation technicians to be able to install, perform basic power and preliminary device checks for the LaserCOMPACT detector. It does not cover information for commissioning. -
Page 6: Product Specifications
9(6'$ Š LaserSCANNER Installation Guide 3. Product Specifications Supply Voltage 18 to 30VDC Power Consumption 4.0W quiescent, 4.5W with alarm Current Consumption 170mA at 24VDC quiescent, 190mA with alarm Fuse Rating 1.5A Dimensions (WHD) 225mm x 225mm x 85mm (8 7/8in x 8 7/8in x 3 3/8in) Weight 1.9kg (4.2lbs) °... -
Page 7: Product Dimensions
9(6'$ Š LaserSCANNER Installation Guide 4. Product Dimensions (8.07) Mounting Bracket (8.86) 112.5 (4.43) (3.74) 112.5 (4.43) (8.86) Figure 1 Dimensions in mm (inches) of LaserCOMPACT with mounting Bracket (Rear View) E=Cable Entry Point on Rear of Enclosure Version 1.1... - Page 8 9(6'$ Š LaserSCANNER Installation Guide 70.5 Air Inlet Port (2.78) 26 (1.02) Cable Entry (8.86) (3.35) 31 (1.22) 45 (1.77) (8.86) (1.10) Right Hand Side View Air Exhaust Port 60 (2.36) Bottom View (1.30) 17.8 E= Cable Entry Point (0.68) Figure 2 Dimensions in mm (inches) for the LaserCOMPACT Version 1.1...
-
Page 9: Battery Backup Calculations
9(6'$ Š LaserSCANNER Installation Guide 5. Battery Backup Calculations The nominal battery voltage is 24 VDC. Use Table 1 to calculate and to determine the battery backup requirements for your fire detection system. NORMAL LOAD @ 24 V DC FULL ALARM LOAD @ 24 VDC EQUIPMENT LOAD TOTAL... -
Page 10: Installation
9(6'$ Š LaserSCANNER Installation Guide 6. Installation 6.1 Check Procedure Before Installation (a) Do not install your LaserCOMPACT if there are any signs of shipping damage to the product. Inform your distributor if there is any damage. (b) Check the model of the LaserCOMPACT is correct as per the design specifications for the site. -
Page 11: Removal Of
9(6'$ Š LaserSCANNER Installation Guide 6.2 Removal of Front Cover (a) Unscrew the two Philips head screws located on the left and right hand sides of the front cover. (b) Remove the cover. The front cover is held to the main enclosure with a plastic tie. There is a cable loom labelled LED CARD that connects the termination card in the enclosure to the LED card located behind the front cover. -
Page 12: Attaching The Detector Onto The Bracket
9(6'$ Š LaserSCANNER Installation Guide 205 +/- 0. 5mm (8.07in) This side faces 8mm φ the back of the detector Figure 5 Hole Dimensions and Orientation of Mounting Bracket 6.5 Attaching the Detector onto the Bracket (a) Determine the required orientation for the LaserCOMPACT. (b) Mount the detector onto the bracket by placing the four rectangular slots located on the rear of the detector onto the four bracket tabs. -
Page 13: Connecting The Air Sampling Pipe
9(6'$ Š LaserSCANNER Installation Guide Air Inlet Port Cable Entry Ports Cable Terminal Strips Programming Socket 15 pin for VN model 9 pin for RO model Termination Anti Tamper Screw Fuse 1.5A VESDAnet Number Aspirator Air Filter Cartridge Air Exhaust Port Filter Release Screw Figure 7 Location of Anti Tamper Screw and other Components inside the Enclosure 6.6 Connecting the Air Sampling Pipe... -
Page 14: Cabling Using Glands And Conduits
9(6'$ Š LaserSCANNER Installation Guide 6.7 Cabling Using Glands and Conduits 6.7.1 Using Glands (a) If using cable glands, use the correct gland size to fit the 25mm∅ cable entry hole. (b) Run the wires through the glands and into the LaserCOMPACT enclosure. Use your local codes and electrical standards for cabling. -
Page 15: Procedure To Terminate Wires To The Termination Card
9(6'$ Š LaserSCANNER Installation Guide 6.8 Procedure to Terminate Wires to the Termination Card Use the appropriate wiring standards for your country or use the following suggested procedure listed below. (a) Strip off 5 to 10mm of outer insulation from each wire. (b) Twist wire strands together for multi-stranded wire only. -
Page 16: Terminating The Relay Wires To The Termination Card
9(6'$ Š LaserSCANNER Installation Guide Detector 1 Detector 2 Detector 3 Terminal B Terminal B Terminal B Shield Shield Shield Shield Shield Shield Shield Shield Shield Shield Detector 5 Detector 4 Terminal B Terminal B Figure 11 Wire Connection Details for VESDAnet Shield Shield Figure 12 Wire Connection Details for VESDAnet Loop... -
Page 17: Terminating The Auxiliary Wires To The Termination Card
9(6'$ Š LaserSCANNER Installation Guide 6.12 Terminating the Auxiliary Wires to the Termination Card a) Refer to Figure 8 or 9 for the Reset, LED and Bias terminals on the termination card for the RO or VN model. b) The function for these outputs are as follows:- LED +/- This output terminal provides a maximum of 5V , 15mA via a 220 ohm resistor to power a remote LED. -
Page 18: Power Up
9(6'$ Š LaserSCANNER Installation Guide 7. Power Up Caution Powering up the system must be done by VESDA accredited personnel. 7.1 Power Up the System (a) Remove the 1.5A fuse on the termination card. (b) Turn on the power to the detector. (c) Check the DC voltage at the Power terminals on the termination card is between 18 VDC to 30 VDC. -
Page 19: Preliminary System Checks
9(6'$ Š LaserSCANNER Installation Guide 8. Preliminary System Checks Perform the following preliminary system checks before commissioning. (a) Logging onto the system with a PC or a LCD Programmer. See section 8.1. (b) Normalise the airflow. See section 8.2 (c) VESDAnet communication checks for VN models only. See section 8.3 (d) Basic pass/fail smoke test. -
Page 20: Normalise The Air Flow And Clearing Air Flow Faults
9(6'$ Š LaserSCANNER Installation Guide 8.2 Normalise the Air Flow and Clearing Air Flow Faults a) List all the VESDAnet number for all detectors to be normalised. b) Go to section 8.2.1 for LCD programming or section 8.2.2 for PC programming. c) It takes approximately 11 minutes for the system to normalise during which time the Green OK LED flashes twice every second to indicate that normalisation is in progress. -
Page 21: Using Lcd Programmer
9(6'$ Š LaserSCANNER Installation Guide 8.3.1 Using LCD Programmer ↵ a) Go to Show Wiring Order menu and press b) Check the displayed list shows all the connected devices and the VESDAnet number for each device is correct. c) Check for any devices not connected and troubleshoot if necessary. 8.3.2 Using a PC a) Select Device list from the View menu. -
Page 22: Installation Checklist
9(6'$ Š LaserSCANNER Installation Guide Installation Checklist Site Name: ……………………………………………………………………… Zone: …………………………………………………………………………….. Detector Serial Number/s: …………………………………………………… Perform the following checks listed below to ensure that all the necessary items are completed before handing over to a commissioning engineer. INSTALLATION CHECKS ... - Page 23 9(6'$ Š LaserSCANNER Installation Guide 10. VESDA Product Warranty Conditions 1. Vision Systems warrants that new VESDA products (excluding consumable items) will conform to its published specifications and remain in good working order during the warranty period of 24 (twenty four) months from date of shipment from Vision Systems. 2.
- Page 24 www.vesda.com Australia and Asia The Americas Europe and the Middle East Vision Systems – VESDA Vision Systems –VESDA Vision Systems – VESDA Private Bag 215 35 Pond Park Road Vision House, Focus 31 Mark Road 495 Blackburn Road Hingham, MA 02043, USA Hemel Hempstead Mount Waverley, VIC, 3149 Ph +781 740 2223...
- Page 25 704 South 10 Street P.O. Box 610 Blue Springs, Missouri 64013 U.S.A. (816) 229-3405 Fax: (816) 229-5082 http://www.fike.com...
