Fike CIE-A-200 Installation And Maintenance Instructions

Flush mount cradle

Hide thumbs Also See for CIE-A-200:

INSTALLATION AND MAINTENANCE

INSTRUCTIONS

23-0329 CIE-A-200 Flush Mount Cradle

http://www.fike.co.uk/

General Description

resource-downloads/addressable/

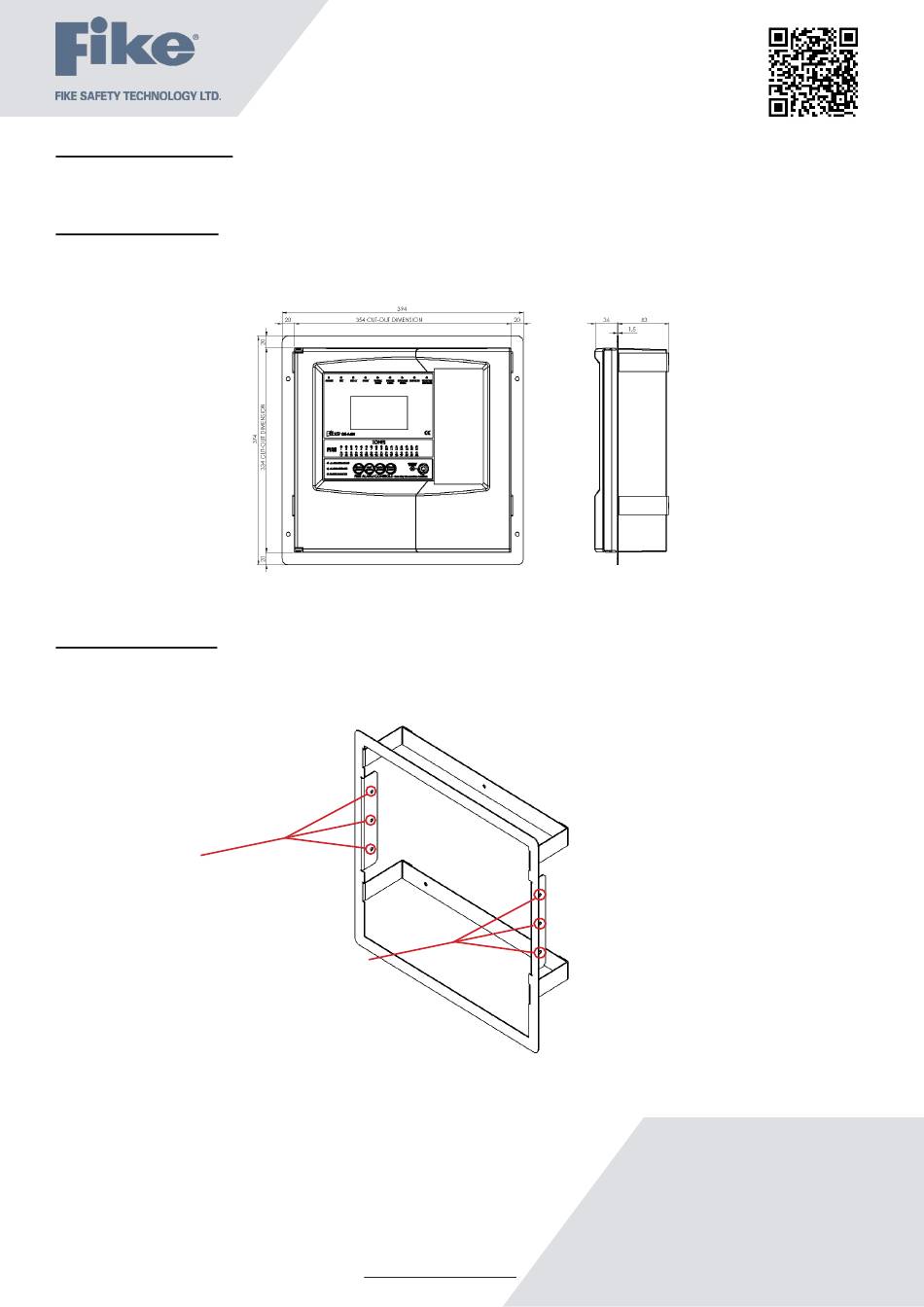

The CIE-A-200 flush mount cradle allows the panel to be flush mounted.

Before installation a cut-out(354mm x 334mm) needs to be made in a solid surface.

Insert the cradle into the cut-out and secure using at least four of the six mounting holes. Suitable screws of at least

50mm in length should be used. DO NOT SCREW THROUGH THE CIE-A-200 BACK BOX.

INSERT SCREWS HERE

Document No. 26-1789 Issue 1

This document is only intended to be a guideline and is not applicable to all

situations. Information subject to full disclaimer at www.fike.com/disclaimer

Subject to change

Table of Contents

Do you have a question about the CIE-A-200 and is the answer not in the manual?

Page 1 Cradle Installation Insert the cradle into the cut-out and secure using at least four of the six mounting holes. Suitable screws of at least 50mm in length should be used. DO NOT SCREW THROUGH THE CIE-A-200 BACK BOX. INSERT SCREWS HERE INSERT SCREWS HERE Document No.
Page 2 Insert the panel into the cradle and fix using the 3 screws provided. INSERT PROVIDED SCREW HERE INSERT PROVIDED SCREWS HERE Fike Safety Technology Ltd Unit 31, Springvale Industrial Estate Cwmbran NP44 5BD Document No. 26-1789 Issue 1 Tel: 01633 865 558 | Email: fstinfo@fike.com Subject to change...

23-0329
