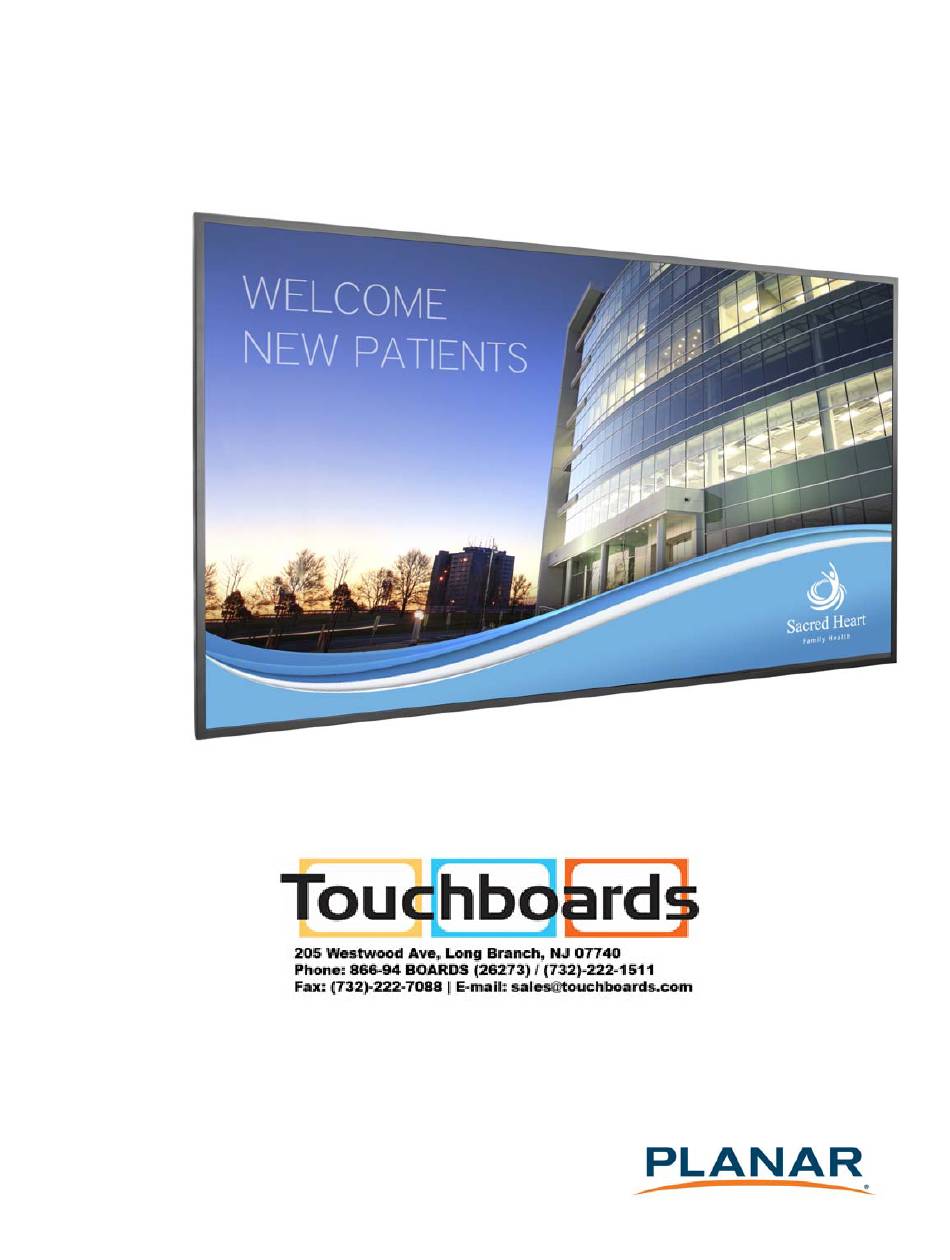

  • Page 1 EP-Series Ultra HD LCD Displays User Guide...
  • Page 2 Planar employees. When you purchase a Planar product, you get more than a display, you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planar.com/support...

  • Page 3: Table Of Contents

    Planar EP Series - Standard Inputs........
  • Page 4 Table of Contents LED Indicators................. . 23 Using the Display in Portrait Mode .
  • Page 5 ................. .75 Accessing Planar’s Technical Support Website.
  • Page 6 EP-Series Ultra HD LCD Displays User Guide...

  • Page 7: Introduction

    Introduction The Ultra HD resolution Planar EP-Series LCD displays offer best-in-class reliability with the stunning image quality of 4K resolution. The displays come standard with commercial-grade features required for digital signage, corporate, and control room environments. Also available in touch versions, Ultra HD Planar EP-Series displays bring interactivity to the 4K immersive experience.

  • Page 8: Safety Information

    Safety Information Safety Information Before using the Planar EP-Series, please read this manual thoroughly to help protect against damage to property, and to ensure personnel safety. • Be sure to observe the following instructions. • For your safety, be sure to observe ALL the warnings detailed in this manual.
  • Page 9 Important Safety Instructions Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use the display near water. Clean the LCD screens with an LCD screen cleaner or LCD wipes. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

  • Page 10: Recommended Usage

    Recommended Usage Slight pressure on the LCD will cause distortion of the image. Heavier pressure will cause permanent damage. Displays should be mounted where viewers cannot touch the screen or insert small objects in the openings that will create hazards by contacting bare conductive parts. The front polarizer is soft and subject to scratches from sharp objects.
  • Page 11 European Union Disposal Information European Union Disposal Information Deutsch English Français ■ Entsorgung von elektrischen & elektronischen Altgeräten (geltend für die ■ Disposal of old Electrical & Electronic Equipment (Applicable throughout ■ Mise au rebut des équipements électriques et électroniques usagés europäische Gemeinschaft und andere europäische Länder mit separaten the European Union and other European countries with separate collection (Valable dans l’ensemble de l’Union Européenne ainsi que dans les pays...

  • Page 12: Vesa Mounts, General Description

    VESA Mounts, General Description VESA mounts are used to secure the Planar EP-Series for display. The display can be installed using a variety of VESA mounts available through Planar. If you do not have a VESA mount and would like to purchase one, contact Planar.

  • Page 13: Cleaning The Display

    Cleaning the Display Cleaning the Display If dust has collected on the power plug, remove the plug from the outlet and clean off the dust. Dust build-up may cause a fire. Remove the power plug before cleaning. Failure to do so may result in electrical shock or damage.

  • Page 14: Package Contents

    Package Contents Package Contents Unpacking the Display The display is packed in a cardboard box using foam to protect it during shipping. Before unpacking the display, prepare a stable, level and clean surface near a wall outlet. Place the LCD panel box in an upright position and remove the carton locks from the bottom first.
  • Page 15 Unpacking the Display Item Description Quantity LCD panel Carton Foam Cushion Top Foam Cushion Bottom Polyurethane Bag Accessory Bag Carton Lock EP-Series Ultra HD LCD Displays User Guide...
  • Page 16 Contents of the Accessory Kit Contents of the Accessory Kit Part Picture Quantity HDMI Cable USB Drive USB Cable (For Touch version) Power cord IR extender cable EP-Series Ultra HD LCD Displays User Guide...
  • Page 17 Contents of the Accessory Kit Part Picture Quantity Cable Clips OSD Remote (AAA batteries included) EP-Series Ultra HD LCD Displays User Guide...

  • Page 18: Installing The Cable Clips

    Installing the Cable Clips Installing the Cable Clips The cable clips included in the Accessory Kit are used to assist with cable management. These clips snap into place as shown in the image below. EP-Series Ultra HD LCD Displays User Guide...

  • Page 19: Dimensions

    Dimensions Dimensions EP5814K EP-Series Ultra HD LCD Displays User Guide...

  • Page 20: Ep5814K-T

    EP5814K-T EP5814K-T EP-Series Ultra HD LCD Displays User Guide...

  • Page 21: Ep6514K

    EP6514K EP6514K EP-Series Ultra HD LCD Displays User Guide...

  • Page 22: Ep6514K-T

    EP6514K-T EP6514K-T EP-Series Ultra HD LCD Displays User Guide...

  • Page 23: Planar Ep Series - Standard Inputs

    Planar EP Series - Standard Inputs Planar EP Series - Standard Inputs RS-232 PC Audio In HDMI 1 IR Extender HDMI 2 PC Audio Out HDMI 3 S/PDIF Out HDMI 4 Touch USB (for Touch version) DisplayPort EP-Series Ultra HD LCD Displays User Guide...

  • Page 24: Installing The Display

    Installing the Display Installing the Display This section explains how to install your display. We suggest that you read the entire section before you attempt to install the unit. Before You Begin Make sure you have all the items in these lists before you begin unpacking and installing your display(s).
  • Page 25 Cable Length Recommendations Cable Length Recommendations Cable length performance may vary between different cables and sources. The recommended maximum DisplayPort length is 3m for DisplayPort 1.2 and 5m for DisplayPort 1.1. HDMI cable length is recommended for up to 15m. EP-Series Ultra HD LCD Displays User Guide...

  • Page 26: Installing Ops Expansion (Optional)

    Installing OPS Expansion (Optional) Installing OPS Expansion (Optional) The Planar EP-Series displays are equipped with an expansion slot that supports the ® Intel Open-Pluggable Specification (OPS). The slot will support OPS devices such as PC’s, SDI modules, HDBaseT receivers, etc.

  • Page 27: Operating The Display

    Operating the Display Operating the Display OSD Keypad The OSD keypad is located on the rear of the display. 15.7in 400mm 4X M8 VESA 7.9in MOUNTING HOLES 200mm OSD Keypad Buttons Descriptions Power Power on/Power off Source Source selection (toggle) ...

  • Page 28: Remote Control Receiver

    Remote Control Receiver Remote Control Receiver The remote control receiver is located near the keypad on the rear of the display. Use the IR extender cable for operating the remote from the front of the display. Power ON standby indicator, Remote control receiver 15.7in 400mm...

  • Page 29: Led Indicators

    LED Indicators LED Indicators The LED indicator light is located on the rear of the display near the keypad. The following table explains what the different colors and blink patterns mean. LED On Power Status Condition Green Power on Blinking Orange No signal Orange Power saving mode...

  • Page 30: Using The Remote Control

    Using the Remote Control Using the Remote Control Below is a picture of the remote control and its corresponding Hex codes. See the following page for button descriptions and Hex codes. EP-Series Ultra HD LCD Displays User Guide...
  • Page 31 Using the Remote Control Customer Function Hex Code Description Code 04FB Provides source and resolution INFO 40AF information 1CE3 Turns the display on and off 40AF 07F8 Selects the PC’s VGA source 40AF 08F7 Selects the DisplayPort 1 source 40AF HDMI1 09F6 Selects the HDMI source 1...
  • Page 32 Locking/Unlocking the OSD Menus Customer Function Hex Code Description Code  19E6 Navigates down through submenus 40AF and settings ENTER 12ED Selects highlighted menu choices 40AF EXIT 05FA Closes the menu system 40AF SCALING 14EB Toggles between different aspect ratios 40AF (Auto, Native, 4 x 3, 16 x 9, 16 x 10 and Letterbox)

  • Page 33: Turning The Display On

    Changing the Remote Control Battery Changing the Remote Control Battery Remove the battery cover Slide back and remove the battery cover in the direction of the arrow. Insert the batteries. Align and insert two AAA batteries according to their plus and minus ports (as indicated in the remote control).

  • Page 34: Turning The Display Off

    Turning the Display Off Turning the Display Off With the power on, press the power button on the remote or side control panel to put the LCD panel in a standby mode. To turn off power completely, turn the AC switch to “O”...
  • Page 35 Input Menu Input Menu This menu is used for selecting the input sources. Up to four sources can be displayed at the same time. Main Input Select the Main Input source Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS Auto Scan Select whether the display will automatically scan for a Main Input source Options: On, Off;...
  • Page 36 Input Menu Source 3 Select the third source Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS Note: This function is only available when Multi-Source Views is set to Triple View or Quad View. If HDMI1 was selected as another source, OPS cannot be selected. If OPS was selected as another source, HDMI1 cannot be selected.
  • Page 37 Multi-Source Presets Submenu Multi-Source Presets Submenu Save and recall up to four configurations of single or multi-source layouts. Source selection and location are saved within each preset. Saving Configurations Set up the single or multi-source layout as desired. Select P , or P RESET RESET...
  • Page 38 Picture Menu Picture Menu This menu is used for making common image adjustments. Aspect Ratio Adjust the aspect ratio of the screen. The first selection is for the main source, and the second selection is for sources 2-4. Options: Full Screen, Letterbox, 4:3, 1:1; Default: Full Screen Scheme Press ...
  • Page 39 Picture Menu Saturation Adjust the brilliance and brightness. Press  or  to select the desired level. Range: 0~100; Default: 50 Note: This function is not available when displaying PC or graphics sources Backlight Increase or decrease the intensity of the LCD backlight. Press  or  to select the desired level.
  • Page 40 Picture Menu – RGB Adjust Submenu (Color Temp = User) Picture Menu – RGB Adjust Submenu (Color Temp = User) Red Gain Set Color Temperature to “User” in order to adjust this setting. Range: 0~100 Default: 100 Green Gain Set Color Temperature to “User” in order to adjust this setting. Range: 0~100 Default: 100 Blue Gain...
  • Page 41 Audio Menu Audio Menu This menu is used for adjusting audio settings. Volume Adjust the sound. Press  or  to select the desired level. Range: 0~100 Default: 50 Treble Adjust the sound in high tones (treble). Press  or  to select the desired level. Range: -6~+6 Default: 0 Bass...
  • Page 42 Audio Menu Audio Source Select the audio source for the Main input Options: DisplayPort1, HDMI1, HDMI2, HDMI3, HDMI4, Line-In Multi-Source Audio Select the audio source that is played through the display’s internal speakers, audio out and digital audio out Options: Main Source, Source 2, Source 3, Source 4 Default: Main Source Note: Adjustments to the Audio Source setting will override selections made to Multi- Source Audio.
  • Page 43 OSD Settings Menu OSD Settings Menu This menu is used to make initial setup adjustments to the OSD (On-Screen Display) menu and other on-screen messages. Horizontal Adjust the horizontal position of the OSD menu. Press  or  to select the desired level. Range: 0~100 Default: 50 Vertical...
  • Page 44 OSD Settings Menu Language Select the OSD language Splash Screen Select whether a splash screen appears when the monitor is powered up Options: On, Off Default: On Message Box Select whether a message box is displayed on screen Options: On, Off Default: On EP-Series Ultra HD LCD Displays User Guide...
  • Page 45 Setup Menu Setup Menu Auto Adjustment Force the display to reacquire and lock to the input signal (VGA source only). This is useful when the signal quality is marginal. Note: This feature does not continually reacquire the signal. Options: No, Yes Default: No H.
  • Page 46 Setup Menu Overscan Adjust the zoom (overscan) of the image Default: 0 Power LED Enable or disable the status LED Options: On, Off Default: On OPS Power Down Check Allow the display to skip waiting for the OPS module to power down when the display is powering down Default: On Real Time Clock...
  • Page 47 Real Time Clock Submenu Real Time Clock Submenu This menu is used to set the internal clock of the display, and to power on and power off the display at preset times if desired. Current Time Set the year, month, day, and time of day Options: User Mode, Workday Mode, Everyday Mode EP-Series Ultra HD LCD Displays User Guide...
  • Page 48 Real Time Clock – User Mode Real Time Clock – User Mode User Mode Select the power on/off time for each day of the week Options: Disable, Enable Use the arrow keys to specify the on and off times. EP-Series Ultra HD LCD Displays User Guide...
  • Page 49 Real Time Clock – Workday Mode Real Time Clock – Workday Mode Workday Mode Select the power on/off time for Monday–Friday, Saturday, and Sunday Options: Disable, Enable Use the arrow keys to specify the on and off times. EP-Series Ultra HD LCD Displays User Guide...
  • Page 50 Real Time Clock – Everyday Mode Real Time Clock – Everyday Mode Everyday Mode Select the power on/off time for all days of the week Options: Disable, Enable Use the arrow keys to specify the on and off times. EP-Series Ultra HD LCD Displays User Guide...
  • Page 51 Advanced Setup Menu Advanced Setup Menu Smart Light Control Enable dynamic contrast (DCR) or ambient light sensor Options: Off, DCR, Light Sensor Default: Off IRFM Create slight frame motion to help avoid image retention Options: On, Off Default: Off MEMC Enable motion estimation motion compensation (frame interpolation).
  • Page 52 Advanced Setup Menu Power Saving Config Options: Wake on VGA, Wake on All, Always On Default: Wake on VGA Note: For Wake on VGA and Wake on All, the display will enter power saving mode if no signal is received for 5 minutes. DP Ver.
  • Page 53 Communication Menu Communication Menu This menu configures the display’s RS-232 and Ethernet communication ports. Baudrate Select the baud rate of the display’s RS-232 port Options: 115200, 38400, 19200, 9600 Default: 19200 Enable Network Enable the display’s built-in Ethernet port Options: No, Yes Default: No IP Address Settings Enable Dynamic IP mode or set the static IP address of the display’s Ethernet port...
  • Page 54 Communication Menu Signal Lost Alert Enable an automatic alert when the video signal is lost Options: No, Yes Default: No Load Default Load default communication settings Options: No, Yes Default: No Device MAC Shows the MAC address of the display Assigning an IP Address to the Display To assign an IP address to your display, access the IP Address Settings Menu in the Communication menu.
  • Page 55 Information Menu Information Menu This read-only menu provides information on the active sources and the latest firmware version. EP-Series Ultra HD LCD Displays User Guide...

  • Page 56: Using The Touch Screen

    Using the Touch Screen Using the Touch Screen You can use the touch screen to control your operating system. The touch screen can emulate basic mouse functions and supports multi-touch functions for Windows 7* and Windows 8*. The following table shows a list of functions you can use on the touch screen.
  • Page 57 Performing basic functions Right-click Press on the target. Hold and wait for a blue ring to appear. Release your finger. Drag or select Drag one finger left or right. Pan up/down Quickly drag your finger (flick) in a /back/forward desired direction. Wake up from Press and hold for four seconds.

  • Page 58: Touchscreen Multitouch Driver Installation

    Touchscreen MultiTouch Driver Installation Touchscreen MultiTouch Driver Installation With the PC on, plug in the USB memory stick to the USB drive. Locate and open the USB drive. Double-click on the “mt_driver_kit [xxxxxx].exe” to install the driver. Follow installation prompts until driver installation is complete. Once driver installation is complete, the touchscreen is ready for use.

  • Page 59: Uninstalling The Multitouch Driver

    Uninstalling the MultiTouch Driver Uninstalling the MultiTouch Driver On the PC, select the Start menu, All Programs and the PQLabs Software Click on the MultiTouch Driver. Select the Uninstall option. Multi-Touch Functions The following table shows how to perform multi-touch tasks using the touch screen for Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions.

  • Page 60: Lan Control

    LAN Control LAN Control The Planar EP-Series supports extending access to the RS232 commands over a network connection using a virtual COM port (VCOM). The VCOM driver installer is included on the USB drive that came with your display. Note: RS232 commands over LAN can be achieved by opening a TCP connection to Port 23 to the display.

  • Page 61: Installation

    Installation Installation Use the following instructions to install the VCOM driver. Launch the vcomsetup.exe file. You may see a security warning similar to the following example. Click Run to continue. EP-Series Ultra HD LCD Displays User Guide...
  • Page 62 Installation The vcomsetup.exe installer installs both the VCOM virtual serial port and also a utility (WinPcap) for finding your displays on the network. Follow the steps in the two installers, accepting defaults and license agreements as needed. EP-Series Ultra HD LCD Displays User Guide...
  • Page 63 Installation When the installers are finished, you will see a VCOM icon on your desktop and you find two new folders in your start menu: IC Plus corp (with VCOM sub folder) and WinPcap. If you need to uninstall the software, there are shortcuts to uninstall from these menus.

  • Page 64: Configuring Vcom

    Configuring VCOM Configuring VCOM Use the VCOM shortcut to launch the VCOM setup utility. The utility starts up on the Device Info page, shown below. The controls on this page allow you to find and configure each display that you want to access via virtual COM ports. Open a browser Configure the Search for the...
  • Page 65 Configuring VCOM Click on COM Mapping to display the COM Mapping page, shown below. The controls on this page allow you to make virtual COM ports and select the display to which you want to map each virtual COM port. Create a Remove an virtual...

  • Page 66: Function Descriptions

    Function Descriptions Function Descriptions Search In the Device Info page, click the Search icon. This function searches for any devices that are connected to the same network segment (maximum of 254 devices) as your PC. Any devices found will be listed in the Device Info table. Search By IP On the Device Info page, click the Search by IP icon.
  • Page 67 Configure IP Address Configure IP Address This function allows you to configure the network settings of the selected device. We recommend using the on-screen menus or the web interface described in the User Guide instead of this function. Note: To cancel this function, scroll to the bottom and click the Cancel button. Click the Web icon to launch your default browser and link it to the display’s web service.
  • Page 68 Adding a Virtual COM Port Adding a Virtual COM Port To add a virtual COM port, click the Add icon on the COM Mapping page to open the following dialog window. Select the display you want to control from the table and accept defaults, as shown. Make a note of the COM number assigned to the new VCOM port.
  • Page 69 Removing a COM Port You can view details for the virtual COM port device using Device Manager, shown below. Removing a COM Port On the COM Mapping page, select the COM port you want to delete and click the button. REMOVE EP-Series Ultra HD LCD Displays User Guide...

  • Page 70: Setting Up Email Alerts

    Setting Up Email Alerts Setting Up Email Alerts The web service allows you to configure the settings required to send email alerts. If you are not using email alerts, you do not need to use the web service and can skip this section.
  • Page 71 Login When you first login, you will see the System Status page, as shown here. EP-Series Ultra HD LCD Displays User Guide...

  • Page 72: Administrator

    Administrator Administrator Click on the word Administrator under the Planar logo to show/hide these menu items. Authentication Configuration Set user ID and password for login to the web service. System IP Configuration You can view and/or change the network settings here. However, for best results, we recommend that you use the on-screen display menus.
  • Page 73 System Status System Status • Kernel version - Shows the firmware version for the network interface. • MAC Address - Shows the unique address assigned to the network interface. • Nickname - Enter a device tag, up to 12 characters. This tag will appear in email alerts, which help you identify the source of the alert.
  • Page 74 WARNING! Do not use the controls in these two sections unless you have received a specific procedure and firmware from Planar. Following improper procedures can disable the net- work interface and require factory repair service. EP-Series Ultra HD LCD Displays User Guide...

  • Page 75: Tcp Mode, Udp Mode And Uart

    TCP Mode, UDP Mode and UART TCP Mode, UDP Mode and UART For normal operation, you will not need to change any settings on these pages. If you do need to change information, Planar’s Technical Support Department will provide you with more information. SMTP...

  • Page 76: Reset Device

    Reset Device Your network administrator must provide information for the following fields: • Enable SMTP - Make sure this checkbox is checked. Port 25 is the default. • SMTP Server Address - Name or IP address of the mail server. •...

  • Page 77: Signal Compatibility

    Signal Compatibility Signal Compatibility Signal Resolution References Type 640x480 31.469 25.175 VESA DMT, CEA-861-E Format 1 640x480 37.861 31.500 VESA DMT 640x480 74.99 37.500 31.500 VESA DMT 640x480 43.269 36.000 VESA DMT 800x600 56.25 35.156 36.000 VESA DMT 800x600 60.32 37.890 40.000 VESA DMT...
  • Page 78 Signal Compatibility Signal Resolution References Type 1680x1050 59.883 55.469 119.000 x VESA CVT-R 1680x1050 59.954 65.290 146.250 x VESA CVT 1920x1080 66.587 138.500 x VESA CVT-R 2560x1440 59.951 88.787 241.500 x VESA CVT-R 2560x1600 59.972 98.713 268.500 x VESA CVT-R 3840x2160 52.438 209.750 x...

  • Page 79: Specifications

    Specifications Specifications Item Model Specification LCD panel Resolution 3840 x 2160 Aspect Ratio 16:9 Screen Size EP5814K(-T) 58” EP6514K(-T) 65” Orientation Landscape/Portrait Brightness (typ.) 450 cd/m Contrast Ratio EP5814K(-T) 3000:1 EP6514K(-T) 4000:1 Viewing Angle (Typ.) 178° Response Time EP5814K(-T) 6.5 ms EP6514K(-T) 5.5 ms...
  • Page 80 Display Weight: 84 lbs (36 kg); Shipping Weight: 97 lbs (44 kg) EP5814K-T Display Weight: 112 lbs (51 kg); Shipping Weight: 130 lbs (59 kg) EP6514K Display Weight: 110 lbs (50 kg): Shipping Weight: 146 lbs (66 kg) EP6514K-T Display Weight: 132 lbs (60 kg)

  • Page 81: Troubleshooting

    • Perform the adjustments according to "Operating the Display" on page 21. • If the problem you have experienced isn’t described below or you can’t correct the problem, stop using the display and contact Planar’s Technical Support Department. (See "Accessing Planar’s Technical Support Website" on page 76)

  • Page 82: Accessing Planar's Technical Support

    Technical Support Website Go to http://www.planar.com/support to locate the following support documents and resources: • User Guide • RS232 User Manual • Touchscreen drivers • Standard warranties • Planar support hotline number and email EP-Series Ultra HD LCD Displays User Guide...
  • Page 83 Index accessory kit, 10 image settings menu, 29 adjusting volume, 28 input source administrator in web service, 66 selecting, 28 audio settings menu, 29 installation, 18 authentication configuration page, 66 cable clamps, 12 avoiding temporary image retention, 4 HD-SDI board, 21 OPS expansion slot, 20 safety precautions, 3 introduction, 1...
  • Page 84 Index package contents, 8 unpacking the displays, 8 product usage using the remote, 24 exemptions, 8 VCOM recommended usage, 4 configuration, 58 remote control driver installation, 55 changing the batteries, 27 vesa mounts, 6 using, 24 volume, 28 resetting the network interface, 70 RS232 network connection, 54 warranty exemptions, 8...
